Most curved LED features are not built from flexible modules at all. They are built from rigid cabinets with adjustable curve locks that approximate a curve in fixed increments, which is cheaper, easier to service and perfectly convincing at normal viewing distances. Genuinely flexible LED uses a soft rubber or silicone module that bends to a stated minimum radius, and it is the right answer only for tight radii, wrapped columns and shapes a faceted curve cannot hide. Which of the two your design needs changes the budget, the structure and the servicing plan, and it is a decision to make before the render is approved.
Quick reference: before you commit a curve
- Curve type: faceted rigid cabinets, rigid-curved cabinets, or soft flexible modules; each has different limits.
- Bend radius: the manufacturer's minimum radius for that exact module, confirmed in writing.
- Access: front or rear service, decided before the substrate is built, not after.
- Pitch: chosen for the closest realistic viewing distance on the curve, not the average.
- Structure: a fabricated substrate with defined tolerances, signed off by whoever builds it.
Rigid-curved, soft modules or genuinely flexible?
Faceted rigid cabinets are standard cabinets joined with curve locks at a fixed angle per join, producing a polygon that reads as a curve from a few metres away. This is how most lobby and reception features are actually built. Servicing is conventional, spares are standard cabinets, and the cost premium over a flat wall is modest.
Rigid-curved cabinets are manufactured with a fixed radius in the frame itself. The curve is smooth, the result is clean, and the constraint is obvious: the radius is set at the factory, so the design must be final before production and later additions must match exactly.
Flexible modules use a soft backing that bends in one axis, mounted to a shaped substrate. They can wrap a column, run along a concave soffit or form an S-curve, and they tolerate radii rigid cabinets cannot approach. The trade-offs are a higher cost per square metre, more site labour, generally lower brightness and more exposure to handling damage, since no rigid frame protects the module. Our LED video wall procurement guide covers the baseline specification points that apply to all three.
What does minimum bend radius actually limit?
It limits how tight the curve can be before the module is damaged. Bend radius is a property of the specific module, not of flexible LED in general, and it varies considerably with pitch, substrate thickness and construction. Finer pitches generally bend less, because the LED packages sit closer together and the circuit board has less room to flex.
It also limits what you can safely promise. Exceeding the stated radius rarely fails immediately; it causes micro-cracking in solder joints that shows up as dead pixels months later, in the tightest part of the curve, after everyone has signed off. Get the figure in writing for the exact module proposed, and have the fabricator confirm the substrate stays within it at every point, including the ends of a wrap where installers tend to pull.
Why pitch and viewing distance change on a curve
On a flat wall, viewers stand back and the whole surface is roughly the same distance away. On a column, people pass within arm's reach, so the closest viewing distance is a fraction of what you would assume for a flat wall of the same area. Pitch must be chosen for that closest approach, which means a finer pitch and a higher cost per square metre.
Curvature changes the viewing geometry too. A convex surface spreads the image away from the viewer, so only part of the curve is ever seen straight on, and the rest is viewed at an angle where brightness and colour shift. That argues for modules with a wide, stable viewing angle and for content designed to work when only a portion is legible at once. A concave surface does the opposite, concentrating reflections and sometimes producing hot spots from the facade glazing, which matters in the kind of hotel and hospitality settings described in our guide to displays for hotels and hospitality.
Mounting, substrate and the structure behind the screen
Flexible LED has no self-supporting frame, so the substrate is the product: normally a fabricated steel or aluminium former, rolled to the design radius, with fixings at defined intervals and cable routes planned before anything is skinned. The accuracy of that fabrication decides whether the finished surface reads as a designed object or as panels stuck on a column.
Three details cause most of the problems. Tolerance between adjacent modules, because a millimetre of step is visible on a curve in a way it is not on a flat wall. Cable management, because data and power must reach every module without being pinched where the surface bends. And the termination at the top and bottom edges, which is what visitors look at from a metre away. Agree all three with the fabricator and the installer in one conversation, and confirm who owns each. For sales galleries, where the feature is the sales tool, see our piece on screens for developer sales galleries and showrooms.

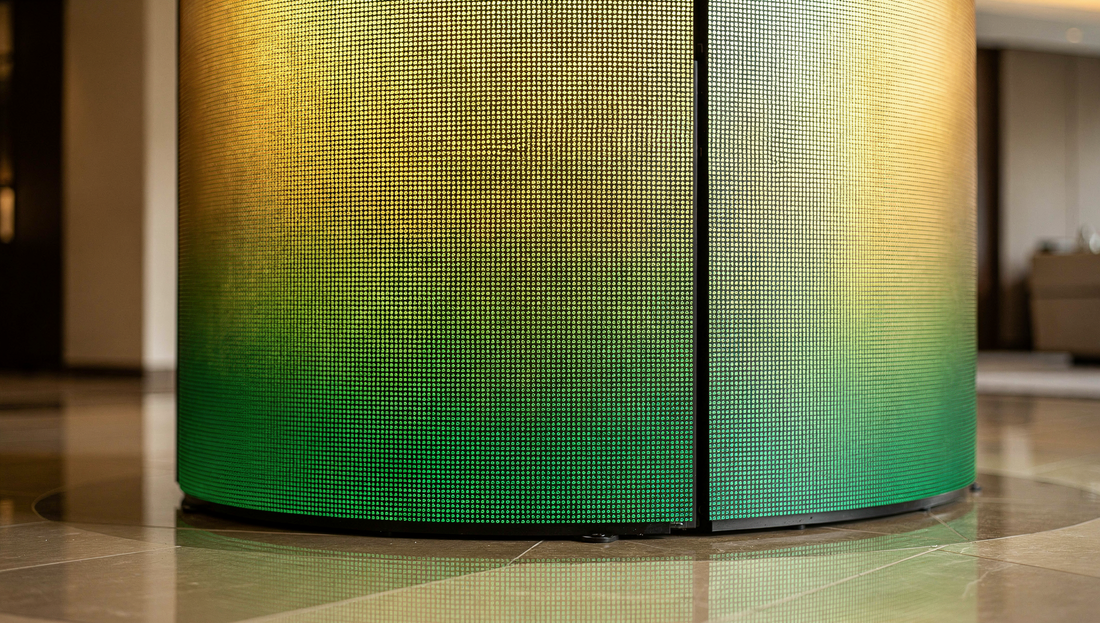

How do you service a screen wrapped around a column?
This is the question that decides the design, and it is routinely answered last. On a flat wall against a plasterboard wall, front access with magnetic modules and a suction tool is normal. On a column, a rear cavity large enough for a technician to work in is usually impossible, so front access is effectively mandatory unless the column is purpose-built with an internal service void.
Front service on a curve is not automatic. Flexible modules clip or adhere to the substrate and must come off and go back without stretching, which needs the right extraction tool and someone trained on that system. Ask for a module removal and replacement to be demonstrated on the actual assembly at commissioning, with your facilities technician watching. If nobody can remove a module in front of you on handover day, nobody will manage it in year three either.
Heat, power and the environment inside a lobby feature
Heat has nowhere to go on a wrapped column. Flexible modules sit against a closed substrate, so the convection path that cools a conventional cabinet does not exist. The usual answers are driving below maximum brightness, specifying low-power modules, and designing ventilation into the column, whether passive vents or an extract fan in the void. Ask for the heat load figure and make the fabricator responsible for dissipating it.
Power quality matters more than people expect. A lobby feature is often fed from a general circuit, and LED power supplies are sensitive to sag and surge. Where grid quality is variable, protect the feature at the distribution board and consider conditioning, as set out in our guide to powering displays on unstable grids. Browse our digital signage and LED solutions for the supporting equipment these installations usually need.
The questions to ask before you commit a lobby feature
Six questions settle most of it. What is the minimum bend radius of the exact module proposed, in writing? Does the design stay within it at every point? Is service access front or rear, and who demonstrates it at handover? What pitch is right for the closest realistic viewing distance, not the average one? What is the heat load and who is responsible for dissipating it? And what spare module stock is held, where, and for how long will that module remain available?
Add a seventh for anything replicated across sites: can this exact assembly be rebuilt at another branch in eighteen months, with the same module and the same substrate drawings? A bespoke curve is the hardest thing in this category to reproduce, so settle repeatability before the first one is built.
FAQ
Is a flexible LED display screen the only way to build a curved wall?
No, and it is usually not the cheapest. Most curved features are built from rigid cabinets with curve locks that approximate the curve in fixed increments, which reads as smooth at normal viewing distances. Flexible modules earn their premium only for tight radii, wrapped columns and shapes a faceted curve cannot disguise.
What is minimum bend radius and why does it matter?
It is the tightest curve a specific module can take without damage, and it varies with pitch and construction rather than being a general property of flexible LED. Exceeding it tends to cause micro-cracking that appears as dead pixels months later, so the figure must be confirmed for the exact module and respected across the whole substrate.
Do I need a finer pixel pitch on a column than on a flat wall?
Usually yes, because people pass a column within arm's reach while they view a flat wall from across a room. Specify for the closest realistic viewing distance rather than the average, and expect the cost per square metre to be higher than an equivalent area of flat wall.
Can a curved LED feature be serviced from the front?
It can, provided the system was chosen for front access and the modules can be extracted without stretching. On a column it is effectively the only option, since a rear service void is rarely available, so make front-access servicing a stated requirement and have it demonstrated at handover.
Does a wrapped column overheat?
It can, because mounting modules against a closed substrate removes the airflow that cools a conventional cabinet. The usual mitigations are lower drive brightness, low-power modules and designed ventilation in the column, and the heat load should be stated and assigned to whoever fabricates the structure.
Can the same curved feature be repeated at other branches?
Only if the module and the substrate drawings remain available, which is a question to ask before the first one is built rather than after. Bespoke curved assemblies are the hardest LED installations to reproduce consistently, so confirm module continuity and keep the fabrication drawings as project records.
