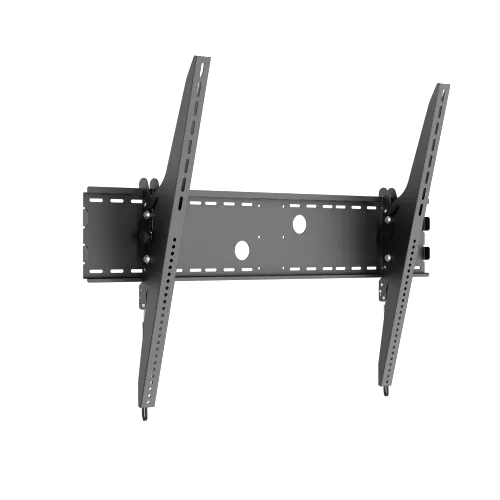

VSYS VS01XL-810T X-Large Tilting Wall Mount for 60"–100" Displays, 100 kg. The bracket you specify when the screen is too big for an ordinary tilt mount.
Above roughly 85 inches, standard wall mounts start to run out of everything at once: load rating, VESA pattern, and the physical width to reach the fixing points on the back of the panel. The VSYS VS01XL-810T is sized for that territory - 60" to 100" displays weighing up to 100 kg, with a VESA window that opens all the way to 1000x800 mm. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
Two things separate it from a normal tilt bracket. The tilt range is plus 15 to minus 15 degrees rather than the usual ten, which is what a 100-inch panel needs when it is hung high in an auditorium or ballroom. And the arms carry lateral shift brackets, so once the plate is bolted to the studs the whole display can be slid left or right to centre it on the wall - you are no longer stuck with wherever the timber happened to be. Construction is 2 mm steel, UL approved and strength tested to four times its rating.
Key features
- Plus 15 to minus 15 degree toolless tilt, a wider swing than a standard tilt mount and the right range for a large panel hung high
- 100 kg working load from 2 mm steel, UL approved and strength tested to four times the rated figure
- Lateral shift brackets let you slide the mounted display sideways to centre it on the wall after the plate is fixed
- VESA from 200x200 mm up to 1000x800 mm, covering the oversized patterns used on 85" to 100" panels that defeat smaller brackets
- 60" to 100" size window means one part number spans an entire large-format rollout
- Quick-release spring locks with pull cords, so even a panel of this size can be taken off the plate for rear access
- Wide, deep bracket structure spreads the load across two studs rather than concentrating it on one
- Fixes to stud centres of 406, 450 or 600 mm with the supplied heavy-duty hardware
- 120 mm wall clearance gives the tilt mechanism and rear connectors genuine working room behind a deep panel
- Powder-coated black steel, specified for permanent installation in auditoria, ballrooms and transport halls
| Brand | VSYS |
|---|---|
| Colour | Black |
| Display compatibility | 60 inch to 100 inch flat and curved panels |
| In the box | Wall plate, bracket arms, lateral shift brackets, heavy-duty dual-stud mounting hardware kit, installation instructions |
| Lateral adjustment | Lateral shift brackets, slide the display left or right after mounting |
| Material | 2 mm cold-rolled steel, powder coated |
| Max load | 100 kg (220 lbs) |
| Mounting type | Wall mount, tilting with lateral shift, single screen |
| Quick release | Spring locks with pull-cord release |
|---|---|
| Stud spacing | Dual stud, 406 mm, 450 mm or 600 mm centres |
| Testing | UL approved, strength tested to 4x the rated load |
| Tilt range | Plus 15 to minus 15 degrees, toolless adjustment |
| Vesa pattern | 200x200 mm to 1000x800 mm |
| Wall distance | 120 mm (4.7 in) |
| Model | VS01XL-810T |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS01XL-810T?
It is an extra-large tilting wall mount for displays from 60" to 100" weighing up to 100 kg. It combines a wide plus 15 to minus 15 degree toolless tilt with lateral shift brackets, and accepts VESA patterns as large as 1000x800 mm.
2. Is it compatible with my display?
Yes - if the screen is 60" to 100", weighs 100 kg or less and has a VESA pattern between 200x200 mm and 1000x800 mm, it will fit. Tell us your display model when you request a quote and we will confirm the exact fit.
3. What is lateral shift and why does it matter?
The wall plate has to land on structure, and structure is rarely in the middle of the wall. Lateral shift brackets let you slide the mounted display sideways after the plate is bolted down, so the screen ends up centred on the room rather than centred on a stud. On a 100-inch panel that offset would otherwise be very visible.
4. Why 15 degrees of tilt instead of 10?
Big screens usually go high, and the higher the panel the steeper the angle needed to point it at the audience. Fifteen degrees keeps a top-row viewer in a lecture theatre or ballroom looking at the image rather than at a reflection of the lighting rig. The adjustment is toolless.
5. Is it safe for a very heavy panel?
It is UL approved and strength tested to four times its 100 kg rating, built from 2 mm steel with a wide, deep bracket that spreads load across two studs. Plan a two-person lift and verify the wall structure before installation - at this size the wall, not the bracket, is the variable.
6. Do you ship the VSYS VS01XL-810T across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VS01XL-810T?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request. Because of the panel sizes involved we recommend a professional two-person installation wherever you are.
9. How far does the screen sit from the wall?
120 mm. That is deeper than a small tilt bracket, and deliberately so - the tilt mechanism needs travel, and a 100-inch panel usually has recessed connectors and a power inlet that need clearance behind it.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
