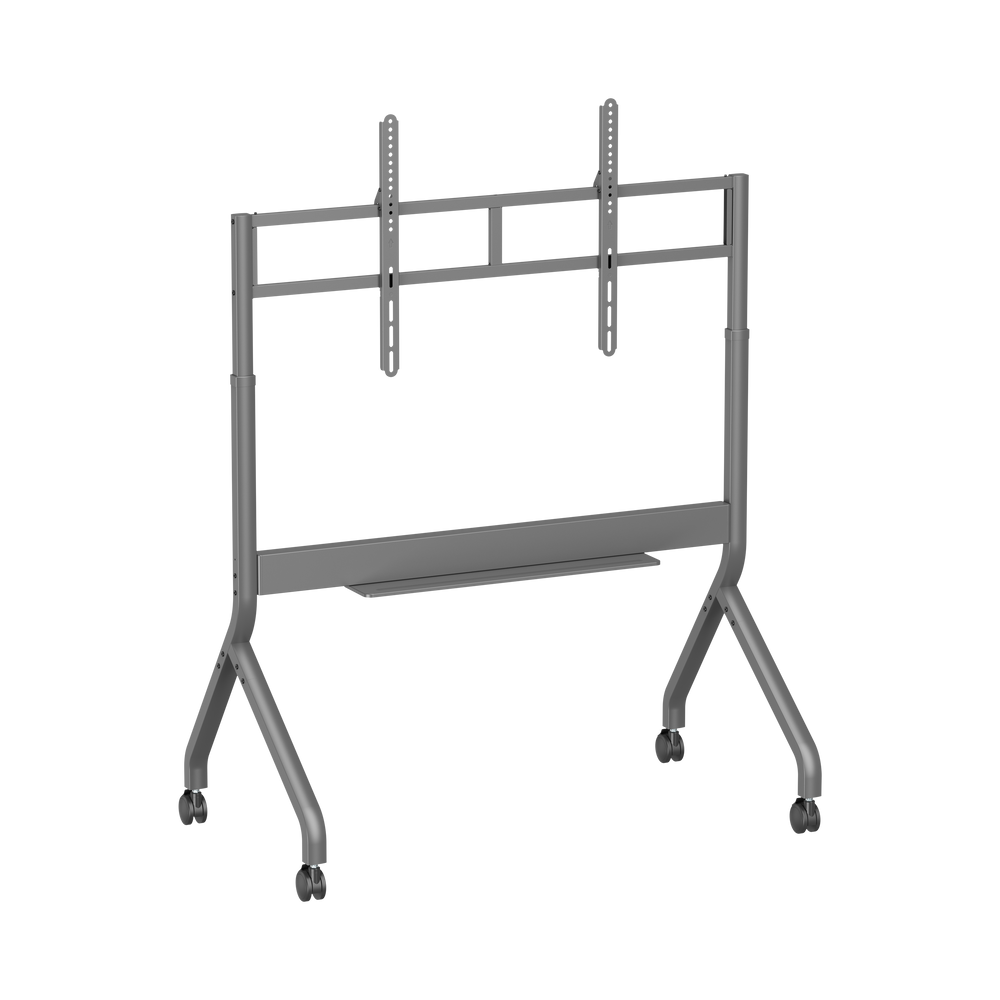

VSYS VTLX16M-612FW Motorised Height-Adjustable TV Cart for 60"–110" Displays, 120 kg. Powered height control for very large screens, driven from a remote.
Once a display passes 100 inches, adjusting its height by hand stops being reasonable. The VSYS VTLX16M-612FW Motorised Height-Adjustable TV Cart for 60"–110" Displays, 120 kg puts that job on a motor: an RF remote raises and lowers the column between 1307 mm and 1607 mm while nobody touches the cart. RF rather than infrared means the remote works from anywhere in the room, with no need to point it at a receiver. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
The steel column carries panels from 60" to 110" up to 120 kg, and the bracket spans an unusually wide VESA range of 100x100 mm to 1200x600 mm, so it accepts both compact panels and the very large signage formats. A support shelf rated to 3 kg holds a media player or codec, heavy-duty locking castors handle the mass, and the gunmetal grey powder-coated finish is meant to disappear in a corporate room. The unit is certified to CE, FCC, ErP and AS or NZS, and is 10 degree slope tested.
Key features
- Motorised column driven by an RF remote, with a 1307 mm to 1607 mm height range
- RF control works from anywhere in the room, with no line of sight to a receiver required
- Carries 60" to 110" displays up to 120 kg on a steel frame
- Very wide VESA support from 100x100 mm to 1200x600 mm, covering small panels and large signage formats
- Support shelf rated to 3 kg for a media player, codec or control device
- Heavy-duty locking castors and a gunmetal grey powder-coated finish
- CE, FCC, ErP and AS or NZS certified, and 10 degree slope tested
- Genuine VSYS part supplied by Smart-Boards, with warranty, after-sales support and a live demo on request
| Certifications | CE, FCC, ErP, AS or NZS, 10 degree slope tested |
|---|---|
| Colour | Gunmetal grey |
| Control | RF remote control, no line of sight required |
| Display compatibility | 60" - 110" flat or curved displays |
| Height adjustment | Motorised, 1307 mm to 1607 mm, RF remote |
| Installation | Freestanding, no wall drilling required, professional assembly recommended |
| In the box | Motorised steel column, display bracket, RF remote control, fixed support shelf, castor base, fixings pack, assembly guide |
| Material | Steel and plastic, gunmetal grey powder coating |
|---|---|
| Max load | 120 kg display, 3 kg shelf |
| Mobility | Heavy-duty locking castors |
| Mounting type | Motorised height-adjustable mobile cart |
| Shelves | Fixed support shelf, rated 3 kg |
| Vesa pattern | 100x100 mm to 1200x600 mm |
| Model | VTLX16M-612FW |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VTLX16M-612FW motorised TV cart?
It is a mobile floor stand for displays from 60" to 110" weighing up to 120 kg, whose steel column is raised and lowered by an electric motor operated from an RF remote across a 1307 mm to 1607 mm range.
2. Is it compatible with my display?
Yes - any 60" to 110" panel up to 120 kg with a VESA pattern from 100x100 mm to 1200x600 mm will fit. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Does it tilt or rotate?
No. This model concentrates on powered height adjustment and does not tilt or rotate. If you need tilt or portrait rotation on a large screen, ask us about the telescopic VSYS carts instead and we will quote the right one.
4. Why is an RF remote better than infrared here?
Radio control does not need line of sight. On a cart this size the receiver often ends up behind the panel or facing away from the presenter, which is exactly where an infrared remote stops working.
5. What power supply does it need?
It is a mains-powered motorised unit and is supplied with the certifications listed for this model, including CE, FCC and ErP. Tell us your destination country when you request a quote and we will confirm the plug and voltage arrangement for your order.
6. Do you ship the VSYS VTLX16M-612FW across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VTLX16M-612FW?
Pricing is on request. Send a quote request from this product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is professional installation recommended?
Strongly, given the mass of the display and the motorised mechanism. Within the UAE our team can assemble, pair the remote and commission the cart. Outside the UAE it ships with instructions and we provide setup guidance on request.
9. Is there a warranty and after-sales support?
Yes - this is a genuine VSYS product with manufacturer warranty plus Smart-Boards after-sales support for the GCC and Africa, including help sourcing spares for the motor assembly.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and corporate projects.
