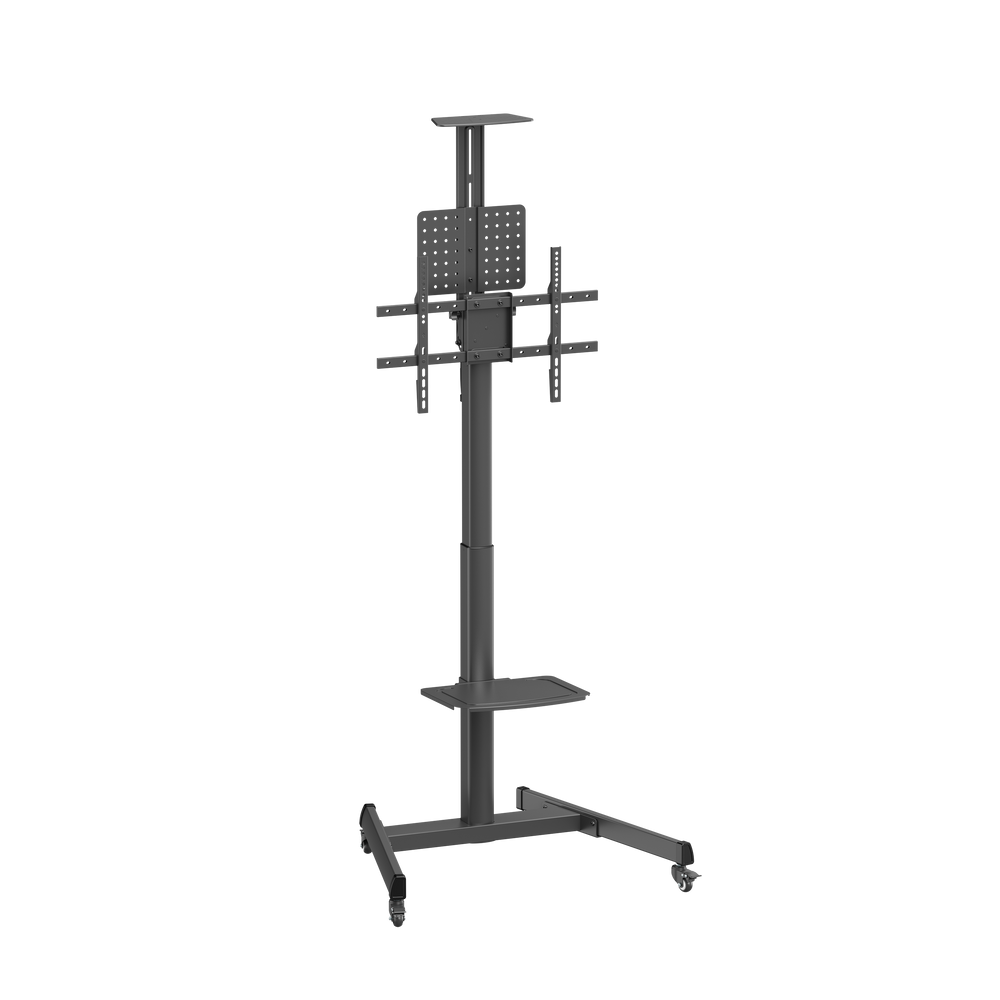

VSYS VTLS17H-46TW Crank Height-Adjustable TV Cart for 37"–70" Displays, 70 kg. Geared height control for rooms where the screen has to suit every user.
Height is not a set-and-forget decision in a shared room. A screen sitting at the right level for a standing presenter is too high for seated delegates, and far too high for a wheelchair user or a primary-school class. The VSYS VTLS17H-46TW Crank Height-Adjustable TV Cart for 37"–70" Displays, 70 kg replaces the usual spring latch with a geared crank handle, so the column can be wound to an exact height, under load, by one person. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
Turning the handle moves the column smoothly through a 450 mm range with no sudden drop and no second pair of hands. The bracket carries 37" to 70" displays up to 70 kg on VESA patterns from 200x200 mm to 600x400 mm, tilts from plus 5 to minus 12 degrees without tools and rotates 0 to 90 degrees for portrait work. A pegboard panel keeps cables and accessories on the cart, and two 5 kg shelves take AV equipment and a conferencing camera. The frame is strength tested to four times its rated load.
Key features
- Geared crank handle raises and lowers the column through 450 mm smoothly, with a display already fitted
- Repeatable exact heights, useful for inclusive classrooms, seated audiences and standing presenters
- Carries 37" to 70" displays up to 70 kg on VESA patterns from 200x200 mm to 600x400 mm
- Toolless tilt from plus 5 to minus 12 degrees and 0 to 90 degree rotation for portrait content
- Pegboard storage panel plus separate equipment and camera shelves, 5 kg each
- Matte black powder-coated steel frame, strength tested to four times its rated load
- Genuine VSYS part, supplied and shipped by Smart-Boards across the GCC and Africa
- Backed by manufacturer warranty, Smart-Boards after-sales support and a live demo before you commit
| Colour | Matte black |
|---|---|
| Display compatibility | 37" - 70" flat or curved displays |
| Height adjustment | Geared crank handle, 450 mm range |
| Installation | Freestanding, no wall drilling required |
| In the box | Steel column, crank handle mechanism, display bracket, pegboard panel, equipment shelf, camera shelf, castor base, fixings pack, assembly guide |
| Material | Steel and plastic, matte black powder coating |
| Max load | 70 kg display, 5 kg per shelf |
| Mobility | Lockable castor base |
| Mounting type | Crank height-adjustable mobile cart |
|---|---|
| Rotation | 0 to 90 degrees, portrait or landscape |
| Shelves | Height-adjustable equipment shelf and camera shelf, 5 kg each |
| Storage | Integrated pegboard panel for cables and accessories |
| Testing | Strength tested to 4x rated load |
| Tilt range | Plus 5 to minus 12 degrees, toolless |
| Vesa pattern | 200x200 mm to 600x400 mm |
| Model | VTLS17H-46TW |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VTLS17H-46TW crank TV cart?
It is a mobile steel display stand for 37" to 70" screens up to 70 kg whose column is raised and lowered by a geared crank handle rather than a spring catch, giving 450 mm of controlled, repeatable travel.
2. Why choose a crank over a spring-lock cart?
A crank moves a loaded column gradually and stops exactly where you leave it, so a single member of staff can set the height precisely without holding the weight of the screen. Spring locks are quicker but coarser and usually want two hands.
3. Is it compatible with my display?
Yes - any 37" to 70" panel up to 70 kg with a VESA pattern from 200x200 mm to 600x400 mm will fit, whatever the brand. Tell us your display model when you request a quote and we will confirm the exact fit.
4. Is it suitable for wheelchair users and younger pupils?
It is a sensible choice for inclusive rooms. The 450 mm of travel plus a plus 5 to minus 12 degree tilt lets you bring the screen down to seated eye level and angle it so touch and viewing stay comfortable.
5. What does the pegboard panel do?
It holds hooks and clips for cables, adaptors, remotes and small accessories, so the kit that belongs with the cart travels with the cart instead of disappearing between rooms.
6. Do you ship the VSYS VTLS17H-46TW across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VTLS17H-46TW?
Pricing is on request. Send a quote request from this product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
9. Is there a warranty and after-sales support?
Yes - this is a genuine VSYS product supplied with manufacturer warranty plus Smart-Boards after-sales support for the GCC and Africa.
10. Can I add a video-conferencing camera?
Yes. A separate height-adjustable camera shelf rated to 5 kg sits above the display, and the second shelf takes a media player or codec, so the cart works as a self-contained hybrid meeting position.
