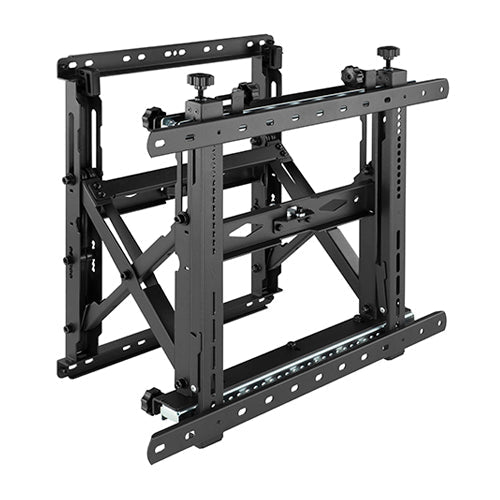

VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg. A pop-out array mount for the largest panels in a video wall.
The VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg is the large-format member of the VSYS push-pull family, rated for panels up to 120" and 130 kg with VESA support reaching 1000x600 mm. In a tiled array the individual screens are unreachable from the sides once installed, so every panel needs its own way out: a firm push or pull releases the pop-out mechanism and brings that screen forward on its own. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
Clearance runs from 120 mm retracted to 325 mm extended, enough to get hands and tools behind a large panel. Micro-adjustment gives 13.5 mm of depth travel and 13 mm of height travel per mount, which is how a multi-screen wall is brought into a flat, even-seamed plane after the brackets are up. Portrait and landscape are both supported, and an anti-theft locking design keeps public-facing installations secure.
Key features
- Rated for displays up to 120" and 130 kg
- Push-pull pop-out release brings a single panel forward inside a tiled array
- Clearance from 120 mm retracted to 325 mm extended for full rear service access
- Micro-adjustment of 13.5 mm depth and 13 mm height for seam alignment
- Portrait or landscape orientation for flexible signage layouts
- VESA support from 200x200 mm up to 1000x600 mm
- Slight tilt range of plus 2 to minus 3 degrees for plane correction
- Cold-rolled steel arms and wall plate, fine-texture black powder coating, strength tested four times
- Anti-theft locking design for public-facing installations
- Supplied and shipped by Smart-Boards across the GCC and Africa
| Brand | VSYS |
|---|---|
| Certifications | Strength tested 4x |
| Colour | Black, fine texture |
| Display compatibility | Displays up to 120 in |
| Extension range | 120 mm retracted to 325 mm extended |
| Installation | Solid wall or stud array, micro-adjustment 13.5 mm depth and 13 mm height |
| In the box | Wall plate, pop-out bracket arms, heavy-duty mounting hardware kit, anti-theft lock fitting, printed instructions |
| Material | Cold-rolled steel, fine-texture powder coating |
| Max load | 130 kg |
| Mounting type | Push-pull video wall mount |
|---|---|
| Movement | Push-pull pop-out extension with micro-adjustment, portrait or landscape |
| Security | Anti-theft locking design |
| Tilt range | Plus 2 to minus 3 degrees |
| Vesa pattern | 200x200 mm to 1000x600 mm |
| Wall distance | 120 mm to 325 mm |
| Warranty | 1 year replacement warranty |
| Model | VSVW13-610T |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg?
It is a video wall bracket for very large panels, rated up to 120" and 130 kg. Each mount holds one screen and lets that screen pop out of the array on its own, so a single panel can be serviced without disturbing the ones around it.
2. Is it compatible with my display?
Yes - if your panel is 120" or smaller, weighs 130 kg or less and has a VESA pattern between 200x200 mm and 1000x600 mm, it fits. Tell us your display model and array layout when you request a quote and we will confirm the exact fit and the quantity you need.
3. How do I get the screens in a video wall perfectly aligned?
Each mount carries micro-adjustment of 13.5 mm in depth and 13 mm in height, plus a small tilt range of plus 2 to minus 3 degrees. Those three adjustments are what bring an array of separately fixed brackets into one flat plane with even seams.
4. Can it be used in portrait orientation?
Yes. Portrait and landscape are both supported, so the same mount works for a horizontal wall in a lobby or a vertical column of signage in a mall corridor.
5. Do you sell it with a full display?
Yes - Smart-Boards supplies the complete range, so you can add this to a display order or buy it on its own.
6. Can I order these in bulk?
Absolutely - we handle bulk and fleet orders for schools, offices and integrators, with quantity pricing on request. Video walls are ordered by the array, so tell us the grid size and we will price the full set.
7. Is it a genuine part, and is there a warranty?
Yes - Smart-Boards supplies only genuine VSYS accessories, backed by manufacturer warranty and our after-sales support across the GCC and Africa.
8. Do you ship the VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
9. How do I get a price for the VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
10. Is installation included?
Within the UAE, yes - our team can install and set up the array, which we strongly recommend at this size and weight. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
