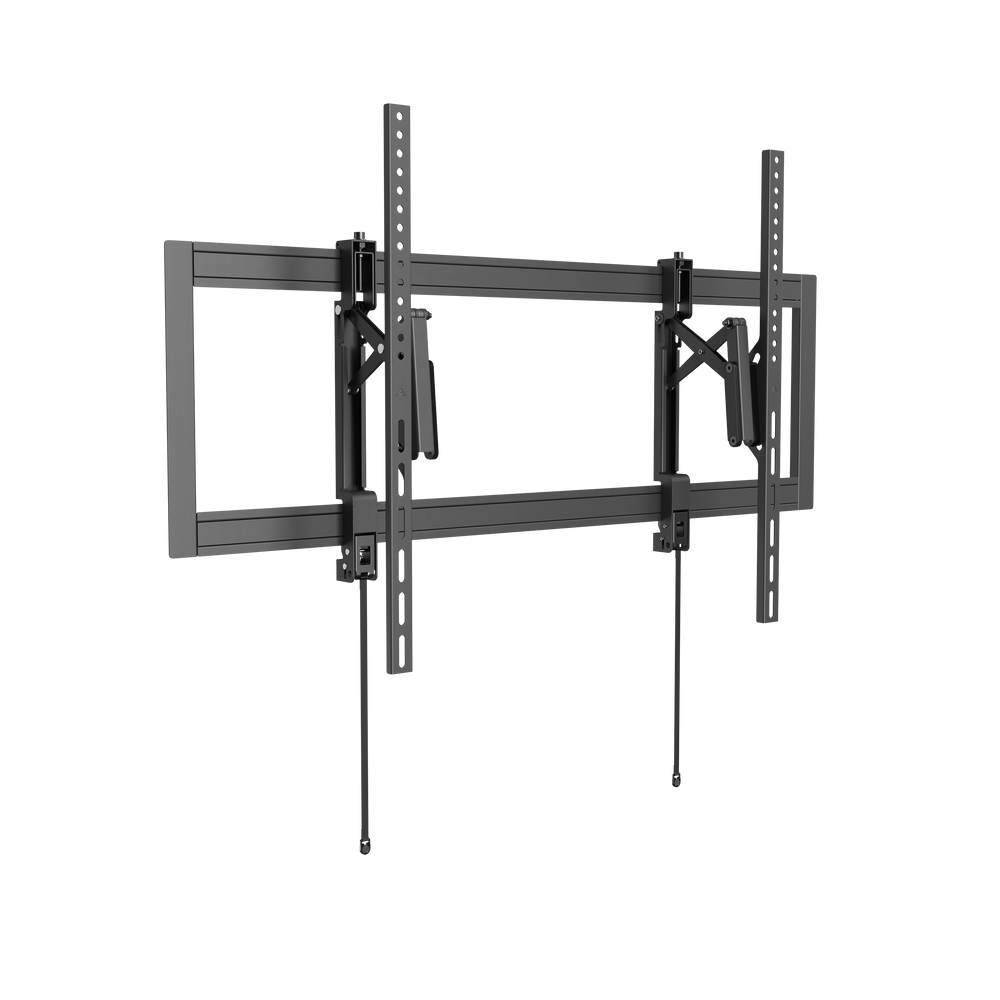

VSYS VS03P-610T Pull-Out Tilting Wall Mount for 55"–105" Displays, 80 kg. A bracket that lets a large screen come off the wall for servicing and go back flush.
The VSYS VS03P-610T Pull-Out Tilting Wall Mount for 55"–105" Displays, 80 kg solves the recurring headache of a big panel installed flat against a wall: nobody can reach behind it. This mount extends the display 172 mm forward, so ports, power and media players are all accessible without unbolting anything, then pushes back to a 53 mm profile. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
Once extended, the screen tilts 10 degrees up and 15 degrees down and swivels 10 degrees either side, which is what makes above-fireplace and above-cabinet placements workable. A sliding lateral track means the panel can be nudged left or right on the wall plate after the plate is fixed, so the screen ends up centred on the room rather than centred on the studs. Micro-adjustment levelling squares it off, and an anti-theft lock secures it in public spaces.
Key features
- Pull-out extension of 172 mm for full rear access to cabling and connections
- Retracts to a 53 mm wall gap when pushed back
- Tilt plus 10 to minus 15 degrees and swivel plus 10 to minus 10 degrees
- Sliding lateral positioning to centre the screen independently of stud position
- 80 kg (176 lbs) rated capacity on 2 mm cold-rolled steel, UL certified
- Covers 55" to 105" displays with VESA up to 1000x600 mm
- Micro-adjustment levelling to square the panel after fitting
- Anti-theft locking structure plus quick-release spring locks
- Supplied and shipped by Smart-Boards across the GCC and Africa
- Live demo available before you commit to a purchase
| Brand | VSYS |
|---|---|
| Certifications | UL certified |
| Colour | Black |
| Display compatibility | 55 in to 105 in flat panels |
| Extension range | 172 mm |
| Installation | Wall plate fixed first, micro-adjustment levelling after fitting |
| In the box | Wall plate, extend-out bracket arms, mounting hardware kit, anti-theft lock fitting, printed instructions |
| Material | 2 mm cold-rolled steel, powder coated |
| Max load | 80 kg (176 lbs) |
| Mounting type | Pull-out tilting and swivelling wall mount |
| Movement | Pull-out extension, tilt, swivel and sliding lateral positioning |
|---|---|
| Security | Anti-theft locking structure and quick-release spring locks |
| Stud spacing | Solid wall or dual stud at 406, 450 or 600 mm |
| Swivel range | Plus 10 to minus 10 degrees |
| Tilt range | Plus 10 to minus 15 degrees |
| Vesa pattern | 200x200 mm to 1000x600 mm, max hole spread 1000x602 mm |
| Wall distance | 53 mm retracted to 172 mm extended |
| Warranty | 1 year replacement warranty |
| Model | VS03P-610T |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS03P-610T Pull-Out Tilting Wall Mount for 55"–105" Displays, 80 kg?
It is a single-screen wall mount that extends the display 172 mm off the wall for rear access, then retracts to a 53 mm profile. It also tilts, swivels and slides laterally, so the final position can be corrected after the wall plate is fixed.
2. Is it compatible with my display?
Yes - if your panel measures 55" to 105", weighs 80 kg or less and has a VESA pattern up to 1000x600 mm, it fits. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Why would I need the pull-out function?
Because a large panel sitting flat on a wall makes its own ports unreachable. Pulling it out 172 mm lets an engineer swap a media player, reseat an HDMI cable or add a signage stick without taking the screen down, which is the difference between a five-minute service call and a two-person lift.
4. Can the screen be repositioned if the studs are off-centre?
Yes. The sliding lateral track lets the display shift left or right along the wall plate after installation, so the screen can be centred on the room rather than on the wall framing. Micro-adjustment levelling then squares it off.
5. Do you sell it with a full display?
Yes - Smart-Boards supplies the complete range, so you can add this to a display order or buy it on its own.
6. Can I order these in bulk?
Absolutely - we handle bulk and fleet orders for schools, offices and integrators, with quantity pricing on request.
7. Is it a genuine part, and is there a warranty?
Yes - Smart-Boards supplies only genuine VSYS accessories, backed by manufacturer warranty and our after-sales support across the GCC and Africa.
8. Do you ship the VSYS VS03P-610T Pull-Out Tilting Wall Mount for 55"–105" Displays, 80 kg across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
9. How do I get a price for the VSYS VS03P-610T Pull-Out Tilting Wall Mount for 55"–105" Displays, 80 kg?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
10. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
