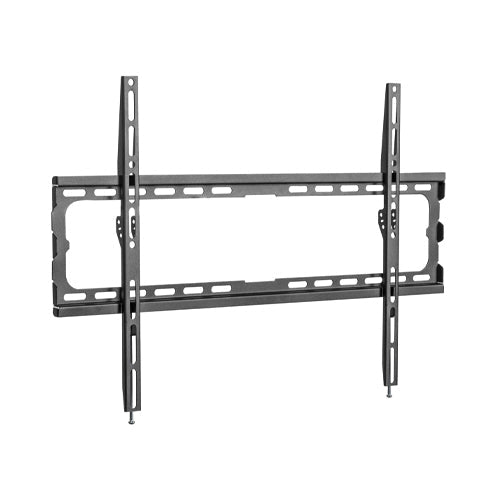

VSYS VS01E-46F Low-Profile Fixed Wall Mount for 37"–86" Displays, 45 kg. A budget fixed bracket that takes large panels without a bulky frame.
The VSYS VS01E-46F Low-Profile Fixed Wall Mount for 37"–86" Displays, 45 kg answers a common procurement problem: an 86" panel usually forces buyers into a heavy, expensive bracket even when the screen itself is light. This one carries up to 45 kg on a VESA window that reaches 600x400 mm, so large lightweight commercial panels get a proper fixing without the cost of a heavy-duty frame. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
The wall plate spans three stud pitches - 406 mm, 450 mm and 600 mm - so the same part fits the different framing standards found across GCC and African construction. An open-frame back keeps sockets and signal cabling reachable after the panel is hung, and the whole unit ships in a compact carton, which pulls down freight cost noticeably on container-scale orders.
Key features
- Covers 37" to 86" panels on one part number
- VESA support from 200x200 mm up to 600x400 mm for large-format screens
- 45 kg (99 lbs) rating on 1.4 mm cold-rolled steel, strength tested four times
- 20 mm wall clearance keeps a big screen visually flush
- Three stud pitches supported: 406 mm, 450 mm and 600 mm
- Open-frame back for socket access, cable routing and airflow
- Security screws included to lock the panel to the arms
- Compact packaging that lowers freight and warehousing cost on volume orders
- Supplied and shipped by Smart-Boards across the GCC and Africa
- Live demo available before you commit to a purchase
| Brand | VSYS |
|---|---|
| Certifications | Strength tested 4x |
| Colour | Black, fine texture |
| Display compatibility | 37 in to 86 in flat panels |
| Installation | Wall plate first, then lift panel on and fit security screws |
| In the box | Wall plate, bracket arms, security screws, mounting hardware kit, printed instructions |
| Material | 1.4 mm cold-rolled steel, powder coated |
| Max load | 45 kg (99 lbs) |
| Mounting type | Fixed wall mount, low profile |
|---|---|
| Movement | Fixed, no tilt or swivel |
| Security | Security screws included |
| Stud spacing | Solid wall or dual stud at 406, 450 or 600 mm |
| Vesa pattern | 200x200 mm to 600x400 mm |
| Wall distance | 20 mm |
| Warranty | 1 year replacement warranty |
| Model | VS01E-46F |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS01E-46F Low-Profile Fixed Wall Mount for 37"–86" Displays, 45 kg?
It is a slim fixed bracket sized for large but relatively light panels - 37" to 86", up to 45 kg. It holds the screen 20 mm off the wall in a permanent position, with no tilt or swivel mechanism to loosen over time.
2. Is it compatible with my display?
Yes - if your panel measures 37" to 86", weighs 45 kg or less and has a VESA pattern between 200x200 mm and 600x400 mm, it fits. Tell us your display model when you request a quote and we will confirm the exact fit.
3. My 86" panel is heavier than 45 kg. What then?
Then this is not the right bracket. Check the weight on your display's spec sheet first - many large commercial panels exceed 45 kg. Send us the model and we will quote a heavier-rated VSYS mount instead.
4. Will it fit the stud spacing in my building?
In most cases yes. The wall plate accepts 406 mm, 450 mm and 600 mm stud pitches, and it can also be fixed to a solid masonry or concrete wall with the appropriate anchors.
5. Do you sell it with a full display?
Yes - Smart-Boards supplies the complete range, so you can add this to a display order or buy it on its own.
6. Can I order these in bulk?
Absolutely - we handle bulk and fleet orders for schools, offices and integrators, with quantity pricing on request. Its compact carton also keeps freight cost down when you are shipping hundreds of units.
7. Is it a genuine part, and is there a warranty?
Yes - Smart-Boards supplies only genuine VSYS accessories, backed by manufacturer warranty and our after-sales support across the GCC and Africa.
8. Do you ship the VSYS VS01E-46F Low-Profile Fixed Wall Mount for 37"–86" Displays, 45 kg across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
9. How do I get a price for the VSYS VS01E-46F Low-Profile Fixed Wall Mount for 37"–86" Displays, 45 kg?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
10. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
