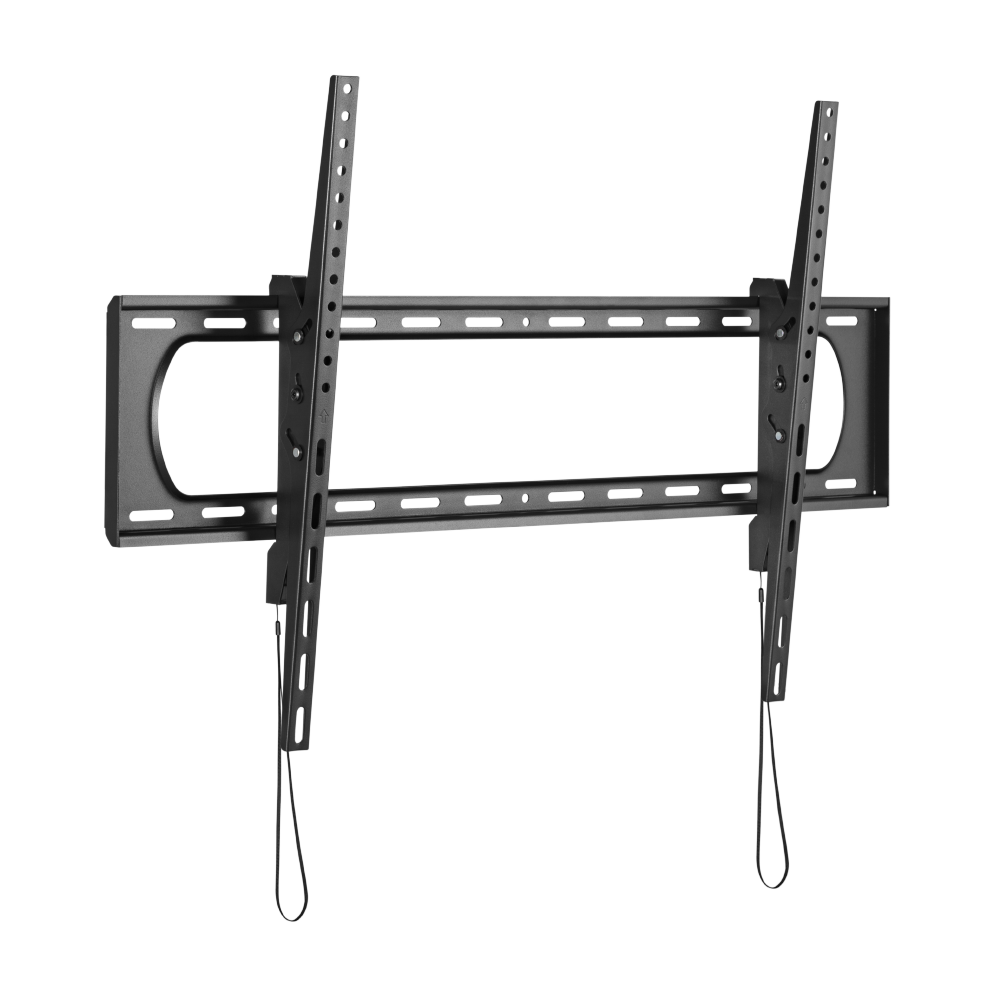

VSYS VS01A-69T Heavy-Duty Tilting Wall Mount for 60"–120" Displays, 120 kg. A 120 kg bracket whose angle can still be corrected after the screen is hung.
The VSYS VS01A-69T Heavy-Duty Tilting Wall Mount for 60"–120" Displays, 120 kg exists because large screens rarely end up at eye level. Concourses, lecture theatres and hotel function rooms push the panel high, and a screen aimed straight ahead from three metres up throws ceiling light back at the audience. This mount tilts 10 degrees either way to fix that. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
The tilt is toolless, so the angle is set by hand after the panel is already on the wall and can be corrected later without dismounting anything - useful when a room's seating layout changes. Underneath, it is the same structural platform as the fixed model: 2 mm cold-rolled steel arms and plate, UL approved, strength tested four times, 120 kg rated. The tilt mechanism raises the wall gap to 80 mm to give the panel room to swing.
Key features
- Toolless tilt of plus 10 to minus 10 degrees, adjustable after installation
- 120 kg (264 lbs) rated capacity, UL approved and strength tested four times
- Handles 60" to 120" flat or curved large-format panels
- 2 mm cold-rolled steel arms and wall plate, powder coated black
- VESA coverage from 50x50 mm to 900x600 mm, with a maximum hole spread of 965x602 mm
- 80 mm wall clearance to allow the tilt mechanism to travel
- Pull-cord quick-release spring locks for rear service access
- Dual-stud fixing at 406, 450 or 600 mm, hook-on bubble level supplied
- Supplied and shipped by Smart-Boards across the GCC and Africa
- Live demo available before you commit to a purchase
| Brand | VSYS |
|---|---|
| Certifications | UL approved, strength tested 4x |
| Colour | Black |
| Display compatibility | 60 in to 120 in flat or curved displays |
| Installation | Two-person lift, hook-on bubble level supplied |
| In the box | Wall plate, bracket arms, heavy-duty dual-stud hardware kit, hook-on bubble level, printed instructions |
| Material | 2 mm cold-rolled steel, powder coated |
| Max load | 120 kg (264 lbs) |
| Mounting type | Heavy-duty tilting wall mount |
| Movement | Tilt only, toolless adjustment |
|---|---|
| Security | Pull-cord quick-release spring locks |
| Stud spacing | Solid wall or dual stud at 406, 450 or 600 mm |
| Tilt range | Plus 10 to minus 10 degrees |
| Vesa pattern | 50x50 mm to 900x600 mm, max hole spread 965x602 mm |
| Wall distance | 80 mm |
| Warranty | 1 year replacement warranty |
| Model | VS01A-69T |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS01A-69T Heavy-Duty Tilting Wall Mount for 60"–120" Displays, 120 kg?
It is a UL-approved tilting bracket for very large panels, rated to 120 kg and covering 60" to 120" screens. The display can be angled 10 degrees up or down, which is what separates it from the fixed VS01A-69F.
2. Is it compatible with my display?
Yes - if your panel measures 60" to 120", weighs 120 kg or less and has a VESA pattern within 50x50 mm to 900x600 mm, it fits. The maximum usable hole spread is 965x602 mm. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Can the tilt angle be changed after the screen is installed?
Yes. The tilt is toolless, so the angle is set by hand with the panel already on the wall and can be re-set later if the room layout or seating changes. No dismounting and no tools are needed.
4. Should I choose this or the fixed VS01A-69F?
Choose this one when the screen sits above eye level and glare or viewing angle is a concern. Choose the fixed VS01A-69F when the panel is at seated height and you want the slimmest possible 35 mm wall gap. Both carry 120 kg.
5. Do you sell it with a full display?
Yes - Smart-Boards supplies the complete range, so you can add this to a display order or buy it on its own.
6. Can I order these in bulk?
Absolutely - we handle bulk and fleet orders for schools, offices and integrators, with quantity pricing on request. One part number covers the whole 60" to 120" band on a large-display rollout.
7. Is it a genuine part, and is there a warranty?
Yes - Smart-Boards supplies only genuine VSYS accessories, backed by manufacturer warranty and our after-sales support across the GCC and Africa.
8. Do you ship the VSYS VS01A-69T Heavy-Duty Tilting Wall Mount for 60"–120" Displays, 120 kg across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
9. How do I get a price for the VSYS VS01A-69T Heavy-Duty Tilting Wall Mount for 60"–120" Displays, 120 kg?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
10. Is installation included?
Within the UAE, yes - our team can install and set up the unit, which we recommend at this size and weight. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
