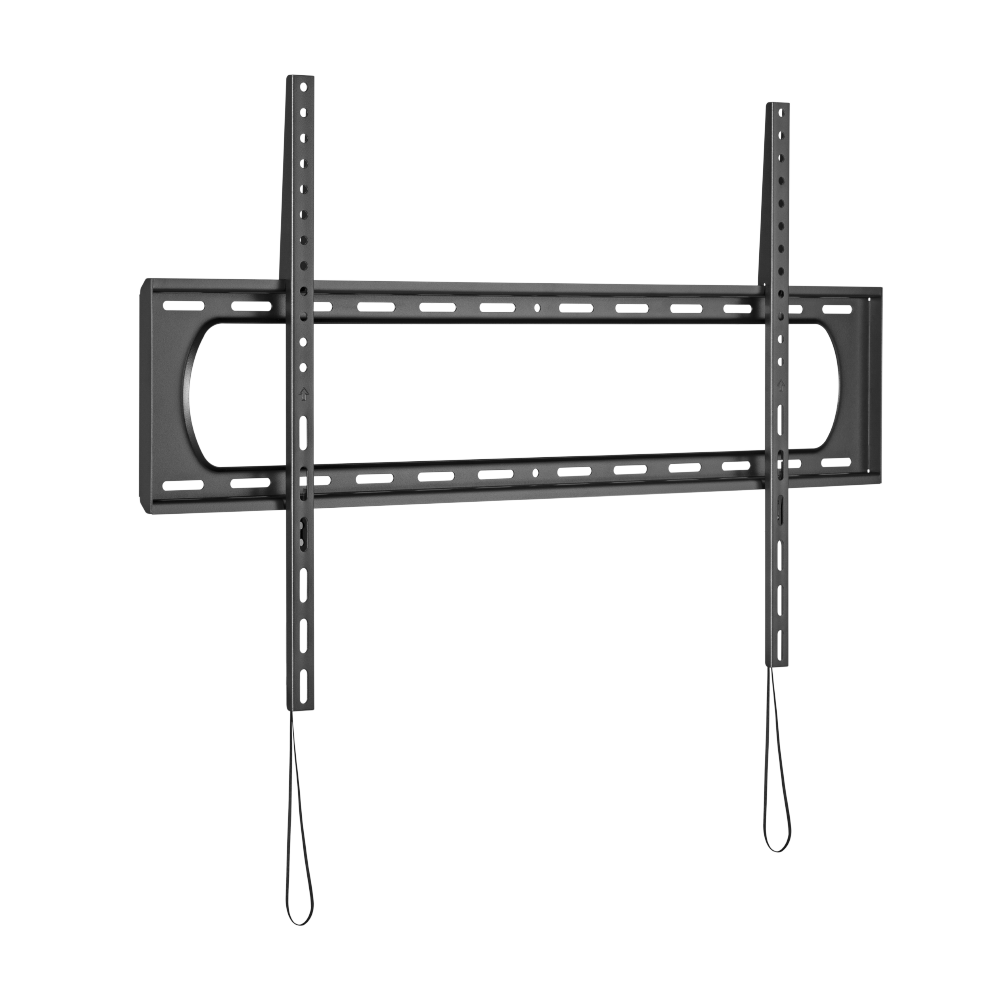

VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg. A UL-approved structural bracket for the largest panels in a building.
The VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg is built for the point where a display stops being furniture and becomes a structural load. At 120 kg rated capacity, UL approved and strength tested four times, it is specified for auditorium, ballroom and transport-hall screens that hang above people all day. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
Both the arms and the wall plate are pressed from 2 mm cold-rolled steel, and the plate is deliberately wide so the mass is spread across two studs rather than concentrated on one. Despite the capacity the panel still sits only 35 mm off the wall. Pull-cord spring locks release the screen for rear service access and re-seat it positively, and a hook-on bubble level is supplied so the plate can be set true before any weight goes on it.
Key features
- 120 kg (264 lbs) rated capacity, UL approved and strength tested four times
- Handles 60" to 120" flat or curved large-format panels
- 2 mm cold-rolled steel arms and wall plate, powder coated black
- 35 mm wall clearance, unusually low for a mount of this class
- VESA coverage from 50x50 mm to 900x600 mm, with a maximum hole spread of 974x602 mm
- Pull-cord quick-release spring locks for rear access without dismantling the bracket
- Wide plate spreads the load across dual studs at 406, 450 or 600 mm
- Hook-on bubble level supplied for accurate levelling before loading
- Supplied and shipped by Smart-Boards across the GCC and Africa
- Live demo available before you commit to a purchase
| Brand | VSYS |
|---|---|
| Certifications | UL approved, strength tested 4x |
| Colour | Black |
| Display compatibility | 60 in to 120 in flat or curved displays |
| Installation | Two-person lift, hook-on bubble level supplied |
| In the box | Wall plate, bracket arms, heavy-duty dual-stud hardware kit, hook-on bubble level, printed instructions |
| Material | 2 mm cold-rolled steel, powder coated |
| Max load | 120 kg (264 lbs) |
| Mounting type | Heavy-duty fixed wall mount |
|---|---|
| Movement | Fixed, no tilt or swivel |
| Security | Pull-cord quick-release spring locks |
| Stud spacing | Solid wall or dual stud at 406, 450 or 600 mm |
| Vesa pattern | 50x50 mm to 900x600 mm, max hole spread 974x602 mm |
| Wall distance | 35 mm |
| Warranty | 1 year replacement warranty |
| Model | VS01A-69F |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg?
It is a UL-approved fixed bracket for very large panels, rated to 120 kg and covering 60" to 120" screens. The display is locked square to the wall at a 35 mm clearance, with no tilt or swivel mechanism in the load path.
2. Is it compatible with my display?
Yes - if your panel measures 60" to 120", weighs 120 kg or less and has a VESA pattern within 50x50 mm to 900x600 mm, it fits. The maximum usable hole spread is 974x602 mm. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Is it safe for a screen mounted above people?
That is what it is designed for. It is UL approved, strength tested four times, and its wide plate distributes the load over two studs instead of one. The wall itself must be structurally sound, and a two-person lift is expected at these panel sizes.
4. How do I reach the cabling once the panel is up?
Pull the two release cords and the spring locks let the display come off the wall plate for rear access, then re-seat it until the locks click home. The open architecture also leaves room behind the panel for sockets and concealed cabling.
5. Do you sell it with a full display?
Yes - Smart-Boards supplies the complete range, so you can add this to a display order or buy it on its own.
6. Can I order these in bulk?
Absolutely - we handle bulk and fleet orders for schools, offices and integrators, with quantity pricing on request. One part number covers the whole 60" to 120" band on a large-display rollout.
7. Is it a genuine part, and is there a warranty?
Yes - Smart-Boards supplies only genuine VSYS accessories, backed by manufacturer warranty and our after-sales support across the GCC and Africa.
8. Do you ship the VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
9. How do I get a price for the VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
10. Is installation included?
Within the UAE, yes - our team can install and set up the unit, which we recommend at this size and weight. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
