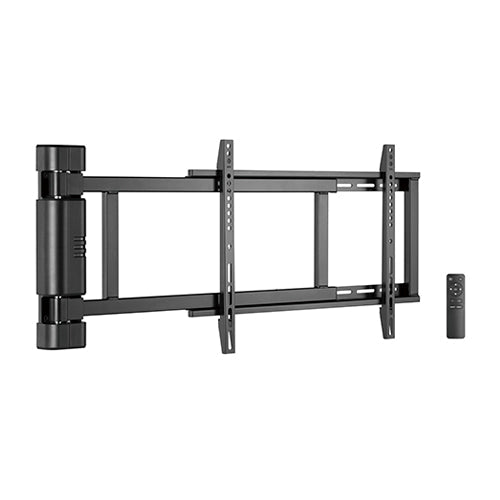

VSYS VCM-M06 Motorised Swing-Arm Wall Mount for 32"–75" Displays, 50 kg. A powered bracket that turns the screen to face a different part of the room on command.
The VSYS VCM-M06 Motorised Swing-Arm Wall Mount for 32"–75" Displays, 50 kg is a powered mount, not a manual one. A low-noise motor drives the arm through 0 to 170 degrees of swivel from an RF remote, so a display serving two zones - a reception desk and a waiting area, an open-plan office and a break-out corner - can be repointed without anyone touching the panel. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
Preferred angles can be stored in position memory and recalled with one button, and collision avoidance halts the motor if the arm meets an obstruction on its way round, which protects both the screen and whatever is in its path. The motor runs on 100-240 V AC through a 1.5 m cord, so a socket or in-wall power point has to be planned into the installation. Retracted, the arm sits 56 mm from the wall.
Key features
- Motorised swivel through 0 to 170 degrees, driven from an RF remote
- Position memory stores preferred viewing angles for one-button recall
- Collision avoidance stops the motor automatically if the arm meets an obstruction
- Low-noise motor suited to offices, clinics and hospitality spaces
- Carries 32" to 75" displays up to 50 kg, load tested to three times the rated capacity
- VESA support from 200x200 mm to 600x400 mm
- Slim 56 mm minimum wall clearance when retracted
- Runs on 100-240 V AC via a 1.5 m power cord
- CE, FCC, RoHS, ErP and AS/NZS compliant
- Supplied and shipped by Smart-Boards across the GCC and Africa
| Brand | VSYS |
|---|---|
| Certifications | CE, FCC, RoHS, ErP, AS/NZS. Load tested to 3 times rated capacity |
| Colour | Black |
| Control | RF remote control with saved position recall |
| Display compatibility | 32 in to 75 in flat or curved displays |
| Installation | Solid wall or stud fixing, hook-on bubble level supplied, mains outlet required |
| In the box | Motorised swing mount, wall plate, RF remote control, mounting hardware bag, power cord, printed installation guide |
| Material | Steel, aluminium and engineering plastic |
| Max load | 50 kg |
| Mounting type | Motorised swing-arm wall mount |
|---|---|
| Movement | Motorised swivel with position memory and collision avoidance |
| Power | 100-240 V AC, 1.5 m power cord supplied |
| Swivel range | 0 to 170 degrees, motorised |
| Vesa pattern | 200x200 mm to 600x400 mm |
| Wall distance | 56 mm minimum, retracted |
| Warranty | 1 year replacement warranty |
| Model | VCM-M06 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VCM-M06 Motorised Swing-Arm Wall Mount for 32"–75" Displays, 50 kg?
It is a motorised wall mount for 32" to 75" displays up to 50 kg. An electric motor swings the arm through 0 to 170 degrees on command from an RF remote - this is a powered mount, not a manual push-and-pull arm.
2. Is it compatible with my display?
Yes - if your panel measures 32" to 75", weighs 50 kg or less and has a VESA pattern between 200x200 mm and 600x400 mm, it fits. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Does it need a power supply?
Yes. The motor runs on 100-240 V AC through the supplied 1.5 m cord, so a mains socket or an in-wall power point needs to be within reach of the mount. Plan the outlet position before the wall plate goes up.
4. What happens if someone walks into the screen while it is moving?
Collision avoidance detects the resistance and stops the motor, protecting the display and the obstruction. It is one of the reasons the mount suits busy reception and retail areas.
5. Do you sell it with a full display?
Yes - Smart-Boards supplies the complete range, so you can add this to a display order or buy it on its own.
6. Can I order these in bulk?
Absolutely - we handle bulk and fleet orders for schools, offices and integrators, with quantity pricing on request.
7. Is it a genuine part, and is there a warranty?
Yes - Smart-Boards supplies only genuine VSYS accessories, backed by manufacturer warranty and our after-sales support across the GCC and Africa.
8. Do you ship the VSYS VCM-M06 Motorised Swing-Arm Wall Mount for 32"–75" Displays, 50 kg across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
9. How do I get a price for the VSYS VCM-M06 Motorised Swing-Arm Wall Mount for 32"–75" Displays, 50 kg?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
10. Is installation included?
Within the UAE, yes - our team can install the mount and commission the motor and remote. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
