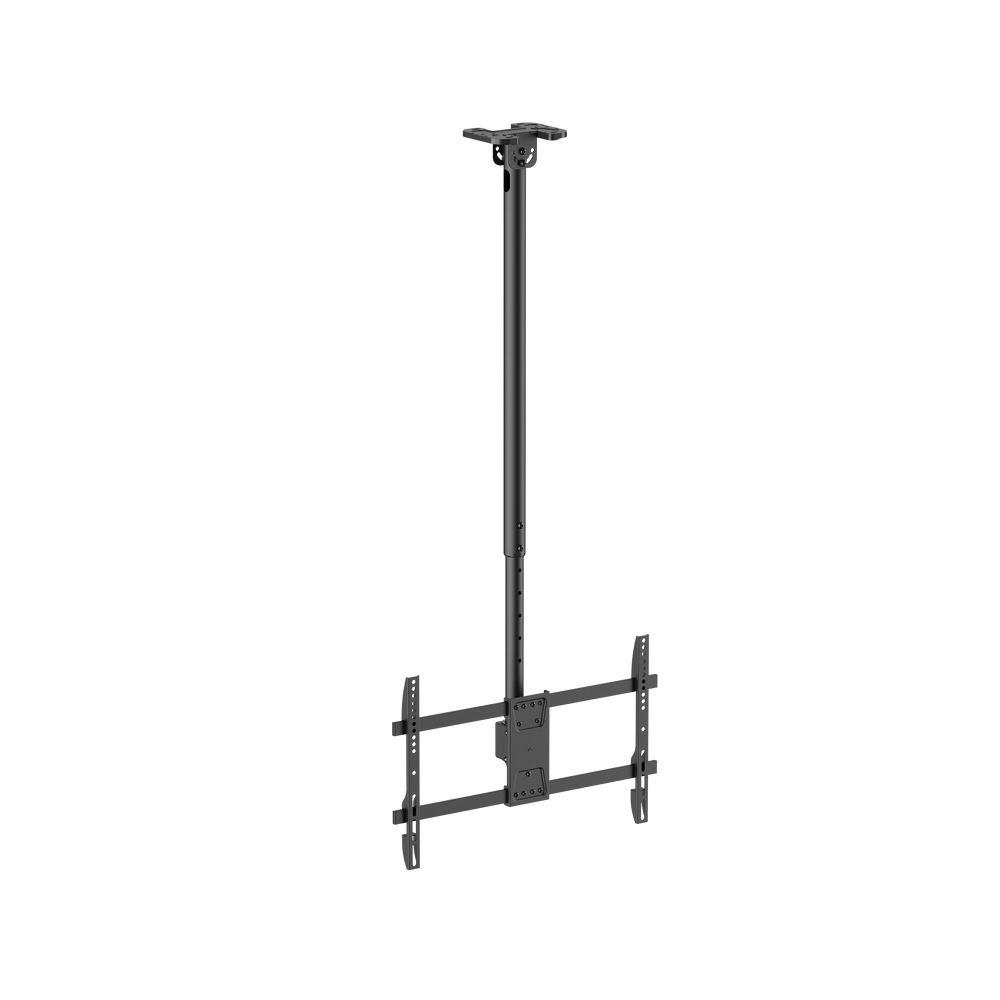

VSYS VCM-CE1546L Adjustable Ceiling Mount for 43"–86" Displays, 60 kg. A single-screen ceiling drop for rooms with no usable wall.
Glass partitions, structural columns, curtain walling and open-plan floor plates all produce the same problem: the screen has to go somewhere, and there is no wall to put it on. The VSYS VCM-CE1546L Adjustable Ceiling Mount for 43"–86" Displays, 60 kg hangs one display from the slab instead, on a telescopic pole that drops between 1090 mm and 1690 mm. This is the single-screen model in the range - one panel, one pole, up to 60 kg. Smart-Boards supplies it across the GCC and Africa alongside our full VSYS range, with quotations and low-cost delivery to your country.
The ceiling plate itself tilts, so the mount fits a pitched or sloping roof as well as a flat slab without an extra bracket. Once hung, the display rotates a full 360 degrees around the pole, tilts down to minus 25 degrees for high mounting positions, and can be squared up with plus or minus 3 degrees of fine levelling - the adjustment that decides whether an installation looks professional or not. Cabling runs inside the pole. The body is 1.5 mm to 2.5 mm cold-rolled steel with a black powder coat, strength tested to four times its rated load, and takes VESA patterns from 200x200 mm to 600x400 mm.
Key features
- Single-screen ceiling mount rated for 43" to 86" displays up to 60 kg
- Telescopic pole drops from 1090 mm to 1690 mm, covering a wide span of ceiling heights from one part number
- Tiltable ceiling plate fits pitched and sloping roofs as well as flat slabs, with no additional adapter
- Full 360 degree rotation around the pole and tilt down to minus 25 degrees
- Plus or minus 3 degrees of fine levelling to square the screen after hanging
- Cables routed inside the pole for a concealed, finished appearance
- 1.5 mm to 2.5 mm cold-rolled steel, black powder coated, strength tested to four times rated load
- Genuine VSYS part supplied by Smart-Boards, with warranty, after-sales support and a live demo on request
| Cable management | Cables routed internally through the pole |
|---|---|
| Ceiling plate | Tiltable, suits flat or pitched ceilings |
| Colour | Black |
| Display compatibility | 43" - 86" flat or curved displays |
| Drop range | Telescopic pole 1090 mm to 1690 mm |
| Installation | Ceiling fixed to structural joist or slab, two-person installation recommended |
| In the box | Tiltable ceiling plate, telescopic pole, VESA display bracket, mounting hardware kit, installation instructions |
| Levelling | Plus or minus 3 degrees fine adjustment |
| Material | 1.5 mm to 2.5 mm cold-rolled steel, powder coated |
|---|---|
| Max load | 60 kg |
| Mounting type | Single-screen ceiling mount |
| Rotation | 360 degrees around the pole |
| Testing | Strength tested to 4x rated load |
| Tilt range | 0 to minus 25 degrees |
| Vesa pattern | 200x200 mm to 600x400 mm, maximum hole spread 610x402 mm |
| Model | VCM-CE1546L |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VCM-CE1546L ceiling mount?
It is a single-screen ceiling mount for flat or curved displays from 43" to 86" weighing up to 60 kg, built on a telescopic pole with a tiltable ceiling plate, 360 degree rotation and internal cable routing.
2. Is this the single-screen or the dual-screen model?
Single screen. The VCM-CE1546L carries one display of up to 60 kg. If you need two panels back to back or side by side, tell us on the quote request and we will point you at the correct dual-screen model in the same family.
3. Is it compatible with my display?
Yes - any 43" to 86" panel up to 60 kg with a VESA pattern from 200x200 mm to 600x400 mm will fit, with a maximum hole spread of 610x402 mm. Tell us your display model when you request a quote and we will confirm the exact fit.
4. Can it be fitted to a sloping or pitched ceiling?
Yes. The ceiling plate tilts, so the pole hangs vertically from a pitched roof as well as from a flat slab, without buying a separate angled adapter.
5. How far below the ceiling does the screen sit?
The telescopic pole is adjustable from 1090 mm to 1690 mm, so one mount covers standard commercial ceilings and taller spaces such as atriums and terminal halls.
6. Do you ship the VSYS VCM-CE1546L across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VCM-CE1546L?
Pricing is on request. Send a quote request from this product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can survey the ceiling, fit the plate and hang the display. Outside the UAE we ship it ready for local installation and provide setup guidance on request. A ceiling installation of this weight should always be fixed to sound structure and handled by two people.
9. Is there a warranty and after-sales support?
Yes - this is a genuine VSYS product with manufacturer warranty plus Smart-Boards after-sales support for the GCC and Africa.
10. Can you supply large quantities for a multi-site rollout?
Yes - because a single model spans 43" to 86" and a wide range of ceiling heights, it is a practical standard part for a chain or campus rollout. We handle multi-unit orders with volume pricing and procurement-ready documentation for tenders.
