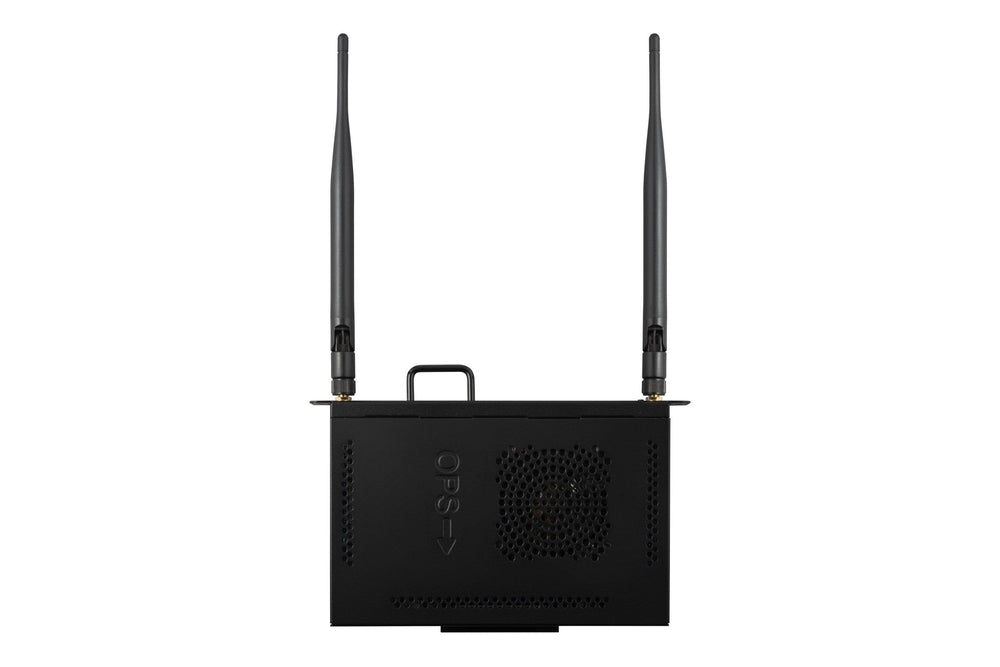

The ViewSonic VPCF5-W55-G1 is a Windows 11 Pro OPS slot-in PC designed for ViewBoard interactive panels. Powered by an Intel Tiger Lake processor with 16GB RAM and 512GB SSD, it delivers reliable computing for educational and corporate environments across the GCC and Africa.
This slot-in computer integrates directly into ViewBoard interactive displays, providing a compact computing solution for classrooms and meeting rooms. Equipped with an Intel 11th Gen Core i5 processor or later and Intel Iris Xe Graphics, it handles complex presentations and collaborative workflows efficiently. The system runs Windows 11 Pro, ensuring compatibility with standard educational and business software suites without the need for external hardware.
Connectivity is prioritized with Wi-Fi 6 (802.11ax) and Bluetooth 5.2, alongside a Gigabit Ethernet port for stable wired connections. The OPS slot includes USB 3.1 Type-A, USB 3.1 Type-C (data only), and USB 2.0 ports for peripherals, plus a MIC-in/line-out combo jack for audio. Measuring 200 x 119 x 30 mm and weighing 0.7 kg, it fits standard OPS slots while supporting resolutions up to 7680 x 4320 at 60 Hz for crisp display output.
Key features
- Processing Power - Intel Tiger Lake mobile processor with Intel 11th Gen Core i5 or later, paired with 16 GB RAM for responsive multitasking.
- Storage and OS - Comes with Windows 11 Pro and a 512 GB M.2 PCIe SSD for fast boot times and ample storage for applications and data.
- Graphics Capabilities - Intel Iris Xe Graphics with up to 7680 x 4320 support at 60 Hz and 32 GB shared graphics memory for clear visual output.
- Wireless Connectivity - Integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.2 enable fast wireless networking and peripheral pairing without external adapters.
- Port Configuration - Includes two USB 3.1 Type-A ports, one USB 3.1 Type-C data port, one USB 2.0 port, and a Gigabit RJ45 Ethernet jack.
- Physical Specifications - Compact dimensions of 200 x 119 x 30 mm and a weight of 0.7 kg allow for easy installation into standard OPS slots.
Ideal for schools, universities, and corporate offices in the GCC and Africa requiring a reliable, pre-configured computing engine for ViewBoard interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- VPCF5-W55-G1
- Product type
- OPS Slot-in PC
- Key features
- Intel Tiger Lake processor, 16 GB RAM, 512 GB SSD, Wi-Fi 6, Bluetooth 5.2, OPS slot, Windows 11 Pro
System
- Processor
- Intel Tiger Lake mobile processor, Intel 11th Gen Core i5 or later
- Graphics
- Intel Iris Xe Graphics (96EU), up to 7680 x 4320 at 60 Hz (DP), 32 GB total available graphics memory
- OPS slot
- OPS standard, x1 (USB 3.1 Type-A x 2, USB 3.1 Type-C x 1 data only, USB 2.0 x 1)
- Operating system
- Windows 11
- RAM
- 16 GB
- Storage
- 512 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- RJ45 10/100/1000 Mbps x 1
- USB-C
- USB 3.1 Gen 2 x 1 (data only)
- USB ports
- USB 3.1 x 2, USB 2.0 x 1
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio
- MIC-in and line-out combo connector
Physical & warranty
- In the box
- Quick start guide, 2 screws, 2 antennas
- Operating humidity
- 10% to 90% RH (non-condensing, at 40 °C)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 90 W (max)
- Dimensions
- 200 x 119 x 30 mm
- Weight
- 0.7 kg
- Input voltage
- DC 12-19 V, 8 A max
- Certifications
- CE EMC, LVD, RED, RoHS, REACH, WEEE, CB2018
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this unit include mounting hardware?
Yes, the package includes two screws and two antennas to secure the unit and ensure stable wireless connectivity within the display.
Can it be installed in any ViewBoard?
It is designed for OPS standard slots found in ViewBoard interactive displays and compatible Presentation Displays. Verify slot compatibility with your specific panel model before purchase.
What is the maximum resolution supported?
The unit supports output resolutions up to 7680 x 4320 at 60 Hz via DisplayPort, ensuring compatibility with high-resolution interactive panels.
Is Windows 11 Pro pre-installed?
Yes, the VPCF5-W55-G1 comes with Windows 11 Pro pre-installed, providing enterprise-grade security and management features out of the box.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations via established logistics partners. Delivery times are confirmed on your specific quotation based on order size and destination.
Do you provide installation services?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided if needed to assist your technical team.
What power requirements does this OPS PC have?
The unit operates on DC 12-19 V with a maximum current of 8 A and consumes up to 90 W of power. Ensure your display's OPS slot provides the correct voltage and power delivery.
