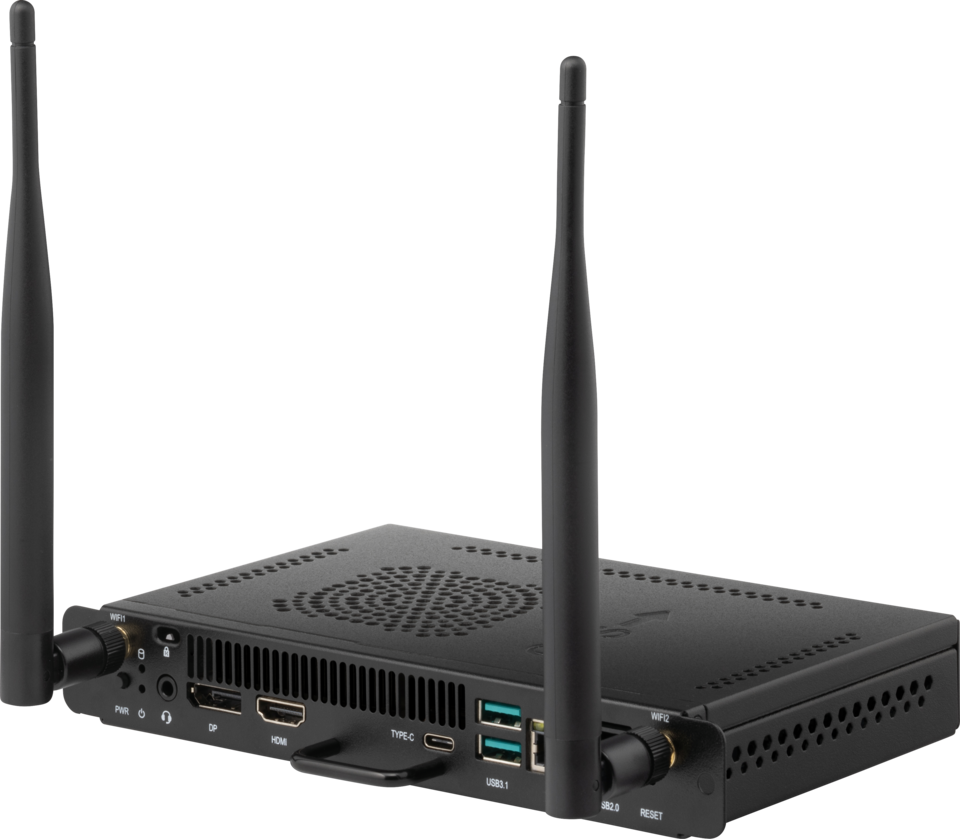

The ViewSonic VPCF5-W55-G1-2A is a slot-in PC designed for ViewBoard interactive displays. It features an Intel 12th Gen Core i5 processor, 16GB RAM, and 512GB SSD. Smart-Boards supplies this unit across the GCC and Africa for educational and corporate deployments.
This OPS slot-in PC integrates directly with ViewBoard displays to extend their functionality. Powered by an Intel 12th Gen Core i5 processor and Intel Iris Xe Graphics, it handles demanding workflows efficiently. The system includes 16GB of RAM and a 512GB PCIe M.2 SSD for fast data access. Windows 11 Pro provides a stable enterprise-grade environment for schools and ministries.
Connectivity is comprehensive, featuring Wi-Fi 6, Bluetooth 5.2, and Gigabit Ethernet. Video outputs support up to 8K via DisplayPort and 4K via HDMI, ensuring compatibility with high-resolution screens. Physical ports include USB 3.1, USB 2.0, and an audio combo jack. The unit measures 200 x 119 x 30 mm and weighs 0.7 kg, fitting standard OPS slots securely.
Key features
- Processing Power - Intel 12th Gen Core i5 processor with Intel Iris Xe Graphics handles intensive interactive tasks.
- Memory and Storage - 16GB RAM and 512GB M.2 PCIe SSD provide ample space and speed for operating systems and applications.
- Operating System - Pre-installed Windows 11 Pro offers enterprise security and management capabilities for institutional use.
- Wireless Connectivity - Built-in Wi-Fi 6 (802.11ax) and Bluetooth 5.2 ensure fast, stable wireless connections.
- Physical Ports - Includes USB 3.1, USB 2.0, RJ45 Gigabit Ethernet, and audio combo connector for versatile peripheral support.
Ideal for schools, universities, and corporate offices deploying ViewBoard interactive displays, suitable for multi-site buyers across the GCC and Africa requiring reliable, pre-configured computing solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- VPCF5-W55-G1-2A
- Product type
- OPS Slot-in PC
- Key features
- Intel 12th Gen processor, 16 GB RAM, 512 GB SSD, Wi-Fi 6, Bluetooth 5.2, 80-pin OPS connector, Windows 11 Pro
System
- Processor
- Intel 12th Gen Core i5 or later
- Graphics
- Intel Iris Xe Graphics; DisplayPort up to 8K at 30 Hz, HDMI up to 3840 x 2160 at 30 Hz
- OPS slot
- 80-pin OPS: HDMI 2.0 4K at 60 Hz, DP 5K at 60 Hz, USB 3.0 x 1, USB 2.0 x 2, DC 12-19 V
- Operating system
- Windows 11
- RAM
- 16 GB
- Storage
- 512 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- RJ45 10/100/1000 Mbps x 1
- USB-C
- USB 3.1 Gen 2 x 1 (data only)
- USB ports
- USB 3.1 x 2, USB 2.0 x 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio
- MIC-in and line-out combo connector
Physical & warranty
- In the box
- Quick start guide, 2 screws, 2 antennas
- Operating humidity
- 20% to 80% RH (non-condensing)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 90 W (max)
- Dimensions
- 200 x 119 x 30 mm
- Weight
- 0.7 kg
- Input voltage
- DC 19 V, 4.74 A
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this slot-in PC be delivered to African countries?
Yes. Smart-Boards ships to GCC nations and African countries through established logistics partners. Delivery times vary by location and order size, which are confirmed on your quotation.
Is on-site installation included for orders outside the UAE?
No. On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed.
What operating system does the VPCF5-W55-G1-2A run?
It runs Windows 11 Pro. This version is included to support enterprise features, security updates, and compatibility with standard educational and business software suites.
Does it support 8K video output?
Yes. The DisplayPort output supports up to 8K at 30 Hz. The HDMI port supports up to 3840 x 2160 at 30 Hz, suitable for high-resolution interactive displays.
What is the maximum power consumption?
The maximum power consumption is 90 W. It operates on DC 19 V input and functions within temperatures of 0 to 40 °C.
Are antennas included for Wi-Fi connectivity?
Yes. The box includes two Wi-Fi antennas, a quick start guide, and two mounting screws for secure installation into the OPS slot.
Can Smart-Boards provide a live demonstration?
Yes. We offer live or virtual demonstrations before purchase. This allows your technical team to verify compatibility with your existing ViewBoard models and network requirements.
