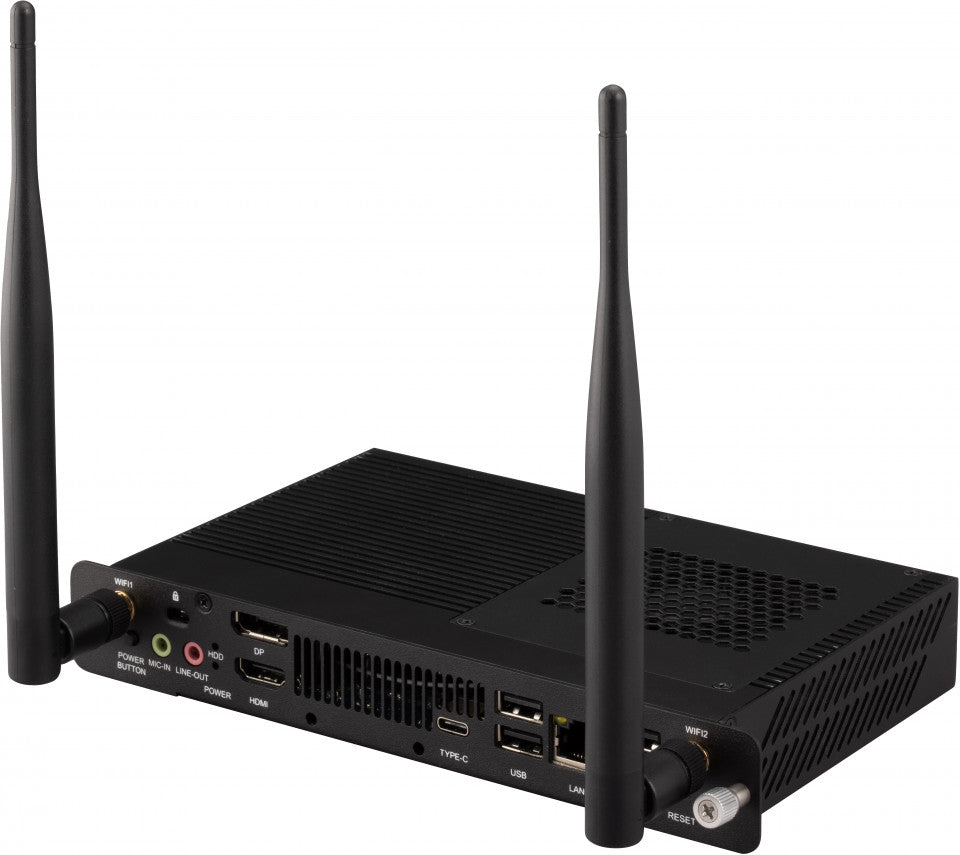

The ViewSonic VPC27-W53-O1-1B is an OPS slot-in PC designed for ViewBoard interactive displays. It features an Intel Core i7-10700T processor, 16 GB DDR4 RAM, and a 256 GB NVMe SSD running Windows 11 Pro. Smart-Boards supplies this unit across the GCC and Africa for educational and corporate deployments.
This compact computer integrates directly into compatible ViewBoard panels to provide full Windows 11 Pro functionality without external clutter. The Intel Core i7-10700T processor delivers reliable performance for interactive lessons and business presentations. With 16 GB of DDR4 memory and a 256 GB NVMe SSD, users experience fast boot times and smooth application loading. The system maintains a low profile, measuring just 202 x 119 x 30 mm, ensuring it fits standard OPS slots without protruding.
Connectivity options support modern classroom and office workflows, including dual-band Wi-Fi, Bluetooth 5.2, and a Gigabit Ethernet port. Input capabilities include four USB ports, an audio jack, and a microphone input for peripheral devices. Display output reaches 4K resolution at 60 Hz via DisplayPort 1.2. Designed for continuous operation, it handles operating temperatures from -5 to 45 °C. Smart-Boards, an authorised reseller, provides this model with manufacturer warranty and after-sales support for multi-site rollouts.
Key features
- Processor & Memory - Powered by an Intel Core i7-10700T processor with 16 GB DDR4 RAM for efficient multitasking.
- Storage Capacity - Equipped with a 256 GB NVMe SSD (M.2 2280) for rapid data access and operating system performance.
- Operating System - Preinstalled with Windows 11 Pro, including a downgrade option to Windows 10 Pro.
- Wireless Connectivity - Features dual-band Wi-Fi and Bluetooth 5.2 for reliable wireless peripheral connections.
- Physical Dimensions - Compact form factor of 202 x 119 x 30 mm and a weight of 1 kg for standard OPS mounting.
Ideal for: Interactive flat panels in schools, universities, and corporate offices across the GCC and Africa requiring embedded computing power.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- VPC27-W53-O1-1B
- Product type
- OPS Slot-in PC
- Key features
- Windows 11 Pro, Intel Core i7-10700T, 16 GB DDR4, 256 GB NVMe SSD, 4K DisplayPort at 60 Hz, dual-band Wi-Fi, Bluetooth 5.2, GbE LAN
System
- Processor
- Intel Core i7-10700T, 2.0 GHz (up to 4.5 GHz turbo)
- Graphics
- Intel UHD Graphics 630
- Operating system
- Windows 11
- RAM
- 16 GB DDR4
- Storage
- 256 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- 1.2, 3840 x 2160 at 60 Hz
- Ethernet (RJ45)
- GbE RJ45 LAN, x1
- Wi-Fi
- Dual-band Wi-Fi
- Ports
- USB 3.2 × 1, USB 2.0 × 3, USB-C × 1 (data only), Line out × 1, Microphone × 1
Physical & warranty
- Operating humidity
- 20% to 80% RH, non-condensing
- Operating temperature
- -5 to 45 °C
- Power consumption
- 65 W (typical)
- Dimensions
- 202 x 119 x 30 mm
- Weight
- 1 kg
- Input voltage
- DC 12–19 V, 3.42 A
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this unit support Windows 11?
Yes, it comes with Windows 11 Pro preinstalled. A Windows 10 Pro downgrade is also included.
What is the display output resolution?
The DisplayPort 1.2 output supports 3840 x 2160 resolution at 60 Hz.
Which countries receive delivery?
Smart-Boards ships to all GCC nations and African countries via established logistics partners.
Is on-site installation included in other countries?
No. On-site installation is available only in the UAE. Other regions receive delivery ready for local setup.
Does it include HDMI ports?
The specifications list DisplayPort, USB, and audio ports. HDMI is not listed as a direct feature on this slot-in unit.
What is the input voltage requirement?
It requires DC 12–19 V at 3.42 A for operation.
What warranty is provided?
The unit includes the manufacturer warranty plus Smart-Boards after-sales support for the region.
