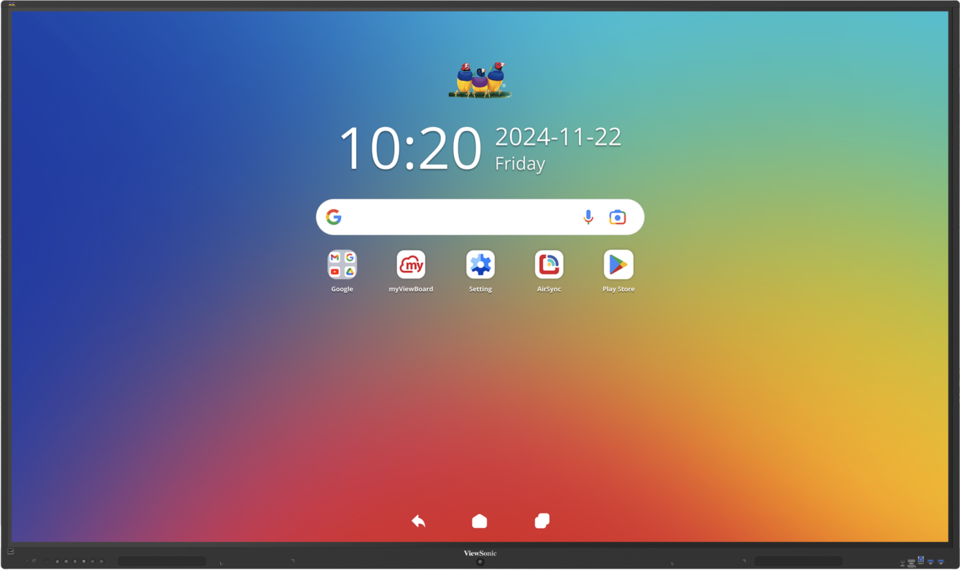

The ViewSonic ViewBoard IFP8635-1-1C is an 86-inch 4K UHD interactive flat panel designed for educational and corporate environments across the GCC and Africa. This EDLA-certified display runs Android 16 with an octa-core processor, offering 64-point infrared touch and integrated energy-saving sensors for efficient operation in large meeting rooms or classrooms.
This 86-inch LCD panel delivers 4K UHD resolution with a 16:9 aspect ratio and 350 nits brightness, ensuring clear visibility even in well-lit spaces. The 9H anti-glare surface protects the screen while supporting 64-point multi-touch via infrared technology, allowing multiple users to collaborate simultaneously. With a 178-degree viewing angle and 1.07 billion color depth, content remains accurate from any position in the room.
Powered by Android 16, the device provides secure access to Google Play applications, essential for modern digital workflows. It features an octa-core CPU, 8 GB RAM, and up to 128 GB storage, ensuring smooth performance for annotation and wireless presentation. Integrated light and PIR sensors optimize power consumption, reducing energy use when the room is unoccupied, while dual RJ45 ports facilitate robust network connectivity.
Key features
- EDLA Android 16 - Certified for secure access to Google Play apps and integrated ViewSonic education software for seamless classroom or meeting management.
- 64-Point Touch - Infrared touch technology supports 64 simultaneous touch points with palm rejection for effective multi-user collaboration.
- Energy Efficient - Built-in ambient light and motion sensors automatically adjust brightness and power states to conserve energy and extend panel life.
- Comprehensive Connectivity - Includes two USB-C ports, five USB-A ports, dual Gigabit Ethernet, VGA, DisplayPort, and an RS232 port for versatile integration.
- Wireless Presentation - Supports AirSync wireless casting, allowing users to share content from mobile devices without physical cables.
Ideal for: Suitable for schools, universities, and corporate offices requiring large-format interactive displays across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- IFP8635-1
- Product type
- Interactive Flat Panel
- Key features
- 64-point infrared touch, palm rejection, myViewBoard annotation, AirSync wireless presentation, light and PIR sensors, EDLA-certified Android 16, SmartPort USB, device management
- Orientation
- Landscape
Display
- Brightness
- 350 cd/m²
- Colour depth
- 1.07 billion colors (8-bit + FRC)
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- 9H hardness, anti-glare coating
- Viewing angle
- 178° horizontal, 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1 (max, DCR enabled)
- Panel technology
- LCD
- Response time
- 6.5 ms
Touch
- Touch points
- 64-point multi-touch
- Touch resolution
- 32767 x 32767
- Touch technology
- Infrared
System
- Processor
- Octa-core CPU
- OPS slot
- 1 OPS PC slot
- Operating system
- Android 16
- RAM
- 8 GB
- Storage
- 64 GB
Connectivity
- DisplayPort
- DisplayPort x1
- Ethernet (RJ45)
- 10/100/1000 Mbps (RJ45 x2)
- Serial port
- RS232 x1
- VGA input
- RGB / VGA x1
- Ports
- DisplayPort x1, RGB/VGA x1, RJ45 x2, USB-C x2, USB Type-A x5, USB Type-B x2, RS232 x1
Camera & audio
- Audio out
- Line out x1
Physical & warranty
- Operating humidity
- 20% to 80% RH (non-condensing)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 93.99 W (on); under 0.5 W (off)
- Dimensions
- 1956.7 x 1159.6 x 98.3 mm
- Weight
- 49.7 kg
- VESA mount
- 800 x 600 mm
- Input voltage
- 100–240 V AC ±10%
- Certifications
- EDLA-certified
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can I buy this with education or government pricing?
Yes, Smart-Boards provides quote-only pricing that includes specific options for education, government, bulk purchases, and tender requirements. Contact us for a detailed quotation tailored to your organization's needs.
Does this model support Google Play apps?
Yes, the ViewSonic ViewBoard IFP8635-1-1C is EDLA-certified and runs Android 16, ensuring full compatibility with Google Play applications and secure device management for institutional use.
Which countries can you deliver to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Logistics are handled through established partners to ensure cost-effective delivery.
Is on-site installation included outside the UAE?
On-site installation is available within the UAE only. For other regions, the panel is delivered ready for local setup, with remote guidance provided by our technical team if needed.
What is the weight and VESA mount size?
The unit weighs 49.7 kg and requires a standard 800 x 600 mm VESA mount for wall or stand installation. Ensure your mounting hardware supports this weight for safety.
Does it have wireless casting capability?
Yes, the display includes AirSync wireless presentation technology, allowing users to mirror content from laptops and mobile devices without additional hardware adapters.
How do I get a price for this unit?
Pricing is available by quotation only. Please contact our sales team with your project details to receive a formal quote, including any applicable bulk or tender discounts.
