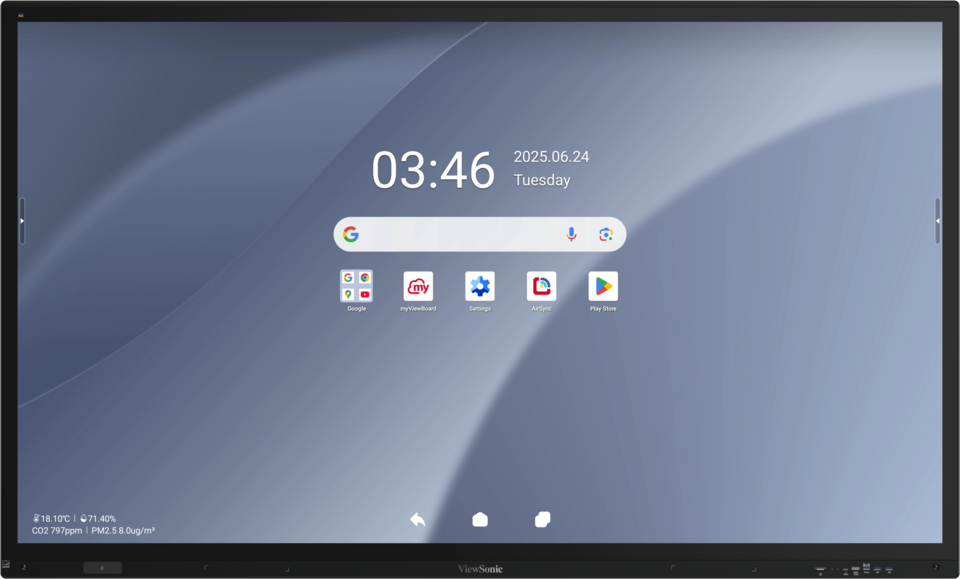

The ViewSonic IFP7563-2C is a 75-inch 4K UHD interactive flat panel designed for secure collaboration in enterprise and higher education settings. It features 50-point PCAP touch, Android 15, and EDLA certification. Smart-Boards supplies this display across the GCC and Africa with quotation-based pricing and regional logistics support.
This 75-inch interactive display delivers 4K UHD resolution (3840 x 2160) on an ADS panel with 450 nits brightness and 5,000:1 contrast. The 50-point PCAP touchscreen supports precise multi-touch input, palm rejection, and Write Away pen-on-paper annotation. Integrated environmental sensors adjust brightness and monitor conditions to optimize energy use. The device runs Android 15 with an octa-core processor and 32 GB RAM for smooth multitasking.
Built for secure environments, the IFP7563-2C is EDLA certified, ensuring access to the latest Google apps and updates. It includes AirSync for wireless casting and TeamOne for real-time collaboration. Connectivity options include three USB-C ports with power delivery, RS232, and dual RJ45 ports. The display weighs 56.1 kg and supports VESA 800 x 400 mm mounting. Smart-Boards provides installation in the UAE and delivery-ready units for other GCC and African countries.
Key features
- Secure Android Platform - The device runs Android 15 and holds EDLA certification for verified access to Google applications and secure updates.
- 50-Point Touch Accuracy - PCAP touch technology enables 50 simultaneous touch points with palm rejection and Write Away pen-on-paper functionality.
- 4K UHD Visual Clarity - The 75-inch ADS panel provides 3840 x 2160 resolution, 1.07 billion colors, and 178-degree viewing angles.
- Collaboration Software - Included tools are AirSync for wireless casting, TeamOne for real-time annotation, and Manager for remote device oversight.
- Comprehensive Connectivity - Ports include three USB-C (PD 65W/100W), four USB 3.2 Gen 1, RS232, and dual RJ45 Ethernet connections.
Ideal for hybrid meeting rooms, university lecture halls, and government offices requiring secure, high-performance collaboration across GCC and African sites.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- IFP7563-2C
- Product type
- Interactive Flat Panel
- Key features
- 50-point PCAP touch, palm rejection, Write Away pen-on-paper, EDLA certified, Android 15, 32 GB RAM, environmental sensors, AirSync and TeamOne software
Display
- Brightness
- 450 cd/m²
- Colour depth
- 1.07 billion colors (8-bit + FRC)
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- 9H pencil hardness, anti-glare, anti-fingerprint and anti-bacterial
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1
- Panel technology
- ADS (TFT LCD with DLED backlight)
- Response time
- 6.5 ms
Touch
- Touch points
- 50-point multi-touch (Windows and Android)
- Touch resolution
- 32767 x 32767
- Touch technology
- PCAP
System
- Processor
- Octa-core (4 x Cortex-A76 + 4 x Cortex-A55)
- Operating system
- Android 15
- RAM
- 32 GB LPDDR
- Storage
- 128 GB
Connectivity
- USB-C
- 3 (front and rear with DP 1.2, touch and PD 65 W or 100 W; top camera port with PD 15 W)
- Ports
- DisplayPort × 1, Audio In × 1, Audio Out × 1, RS232 × 1, MicroSD × 1, OPS slot × 1, WiFi slot × 1, RJ45 × 2, USB-C × 3, USB 3.2 Gen 1 × 4, USB 2.0 × 2, USB 3.0 × 2
Physical & warranty
- Operating humidity
- 20% to 80% RH, non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 101.1 W (on), below 0.5 W (off)
- Dimensions
- 1714.3 x 1032.4 x 79.1 mm
- Weight
- 56.1 kg (net)
- VESA mount
- 800 x 400 mm
- Bezel size
- 3.8 / 3.8 / 11.3 / 32.5 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the ViewSonic IFP7563-2C EDLA certified?
Yes, the display is EDLA certified, ensuring verified access to the latest Google apps and secure platform updates for enterprise and education use.
Which countries receive delivery?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations. Delivery costs are minimized through established logistics partners, with timing confirmed on the quotation.
Is installation included outside the UAE?
No. On-site installation is provided only within the UAE. For other regions, units are delivered ready for local setup with optional remote guidance to assist with configuration.
What operating system does it use?
It runs Android 15 with an octa-core processor and 32 GB LPDDR RAM, supporting smooth multitasking and access to modern collaboration applications.
Does it support wireless casting?
Yes, AirSync software is included for wireless casting, allowing users to share content from mobile devices or laptops directly onto the 75-inch display.
What is the touch technology?
The panel uses PCAP touch technology with 50 simultaneous touch points, palm rejection, and Write Away pen-on-paper annotation for precise interaction.
How is pricing handled?
Pricing is by quotation only. Smart-Boards provides quote-only pricing with options for education, government, bulk purchases, and tender requirements upon request.
