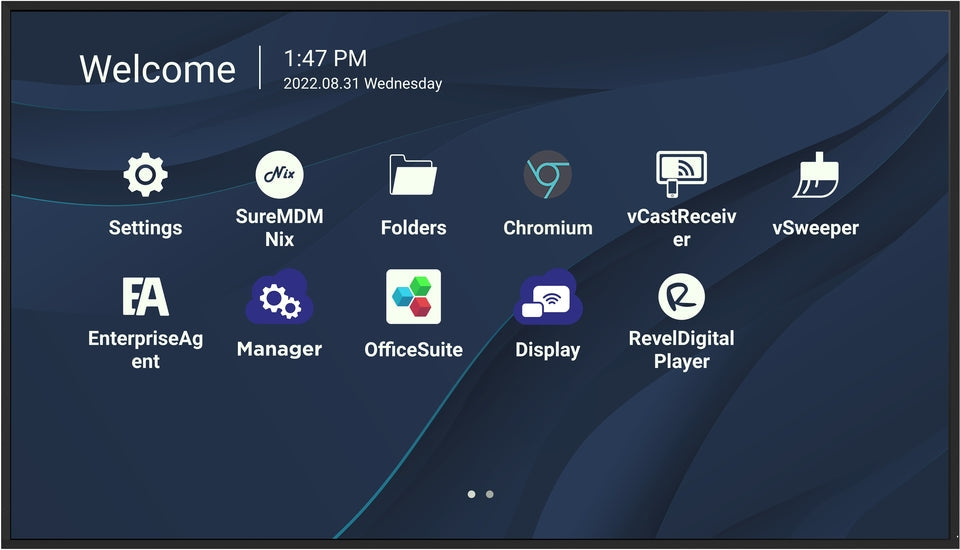

The ViewSonic CDE7530 is a 75-inch 4K UHD digital signage display designed for 24/7 corporate and campus use. Featuring a Quad-core processor, 500-nit brightness, and USB-C connectivity, it supports easy content management across the GCC and Africa.
This 75-inch TFT LCD display delivers 3840 x 2160 resolution with 500 nits typical brightness for clear visibility in well-lit environments. The CDE7530 includes a Quad-core ARM processor, 4GB RAM, and 32GB storage to handle multimedia playback efficiently. Its 14.7mm bezel enables seamless video wall tiling for impactful presentations in corporate or educational settings.
Connectivity is streamlined via a USB-C port supporting 65W power delivery and DP 1.2, alongside HDMI in/out for tiling. The unit supports landscape and portrait orientation, RS-232 control, and an OPS slot for flexible integration. Operating on 100-240V AC, it weighs 34.65kg net and is built for continuous operation in temperatures from 0°C to 40°C.
Key features
- 4K UHD Clarity - Native 3840 x 2160 resolution with 1.07 billion colors and 500 nits brightness for sharp, vivid imagery.
- USB-C Connectivity - Single-cable solution for data, video, and 65W power delivery, simplifying connections with modern laptops.
- Video Wall Ready - HDMI input and output ports allow tiling of up to nine screens with a slim 14.7mm bezel for unified displays.

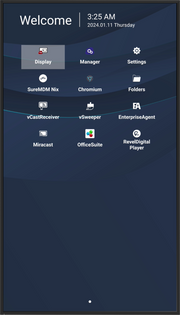

- Flexible Orientation - Supports both landscape and portrait modes for versatile installation in corridors, lobbies, or meeting rooms.
- Management Tools - Compatible with myViewBoard Manager for remote content updates, broadcasting, and software management across multiple units.
Ideal for: Corporate lobbies, university campuses, and retail spaces across the GCC and Africa requiring reliable, high-brightness digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- CDE7530
- Key features
- All-in-one solution includes CDE7530 display, Wi-Fi adapter and wall mount, Powerful ViewSonic Embedded Signage Platform (VESP), Integrated RJ45 and USB Wi-Fi, ViewBoard Cast content sharing software, myViewBoard Display app for remote screen sharing
- Orientation
- Landscape & Portrait
Display
- Backlight
- Direct LED
- Brightness
- 500 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- Anti-glare, 3H hardness, 25% haze
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1 (typ.), 5,000:1 (DCR)
- Panel technology
- ADS
- Response time
- 8 ms
System
- Processor
- Amlogic T982
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Built-in
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 3
- HDMI output
- HDMI Out × 1
- Serial port
- RS-232 × 1
- USB-C
- USB-C × 1
- USB ports
- USB 3.0 × 1, USB 2.0 × 1
- Wi-Fi
- Built-in
Camera & audio
- Audio out
- SPDIF out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- In the box
- CDE7530 Wireless Presentation Display, Wi-Fi adapter and wall mount, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, USB-C cable, Wall Mount, Screws and RS232 cable
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 126 W (typical)
- Standby power
- ≤ 0.5 W
- Dimensions
- 1685.6 x 963.7 x 81.6 mm
- Weight
- 34.65 kg
- Shipping dimensions
- 1863 x 1090 x 225 mm
- VESA mount
- 800 x 600 mm, M8 x 25 mm
- Warranty
- 3 years (parts, labor and backlight)
- Bezel size
- 14.7 mm
- Input voltage
- 100–240 V AC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the typical brightness of the ViewSonic CDE7530?
The display offers 500 nits typical brightness, ensuring clear visibility in bright indoor environments common in GCC offices and public spaces.
Does it support video wall tiling?
Yes, the CDE7530 includes HDMI input and output ports, allowing you to tile up to nine screens together for a large, cohesive digital signage solution.
Can I control the display remotely?
Yes, it supports RS-232 control and is compatible with myViewBoard Manager for remote content updates and system monitoring across multiple units.
What is the operational temperature range?
The unit operates reliably between 0°C and 40°C, making it suitable for various indoor climates in the UAE, KSA, and other GCC countries.
Which countries can it be delivered to?
Smart-Boards ships to GCC nations (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African countries through established logistics partners at competitive rates.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup with remote guidance if needed.
What is the net weight for shipping calculations?
The net weight is 34.65 kg (76.39 lbs), while the gross weight including packaging is 48.15 kg (106.15 lbs) for logistics planning.
