The ViewSonic CDE9830 is a 98-inch 4K UHD presentation display designed for continuous corporate and campus communication. Featuring a quad-core processor and 500-nit brightness, it supports multi-screen tiling and remote management. Smart-Boards supplies this model across the GCC and Africa from its Dubai office.
This CDE30 Series panel delivers a 3840 x 2160 resolution with 500 nits of typical brightness, ensuring clear visibility in well-lit environments. The ADS-type TFT LCD module provides 178-degree viewing angles, while the anti-glare surface treatment maintains image integrity. Built for 24/7 operation, it handles landscape and portrait orientations with a slim 25mm bezel, making it suitable for large-scale digital signage networks in corporate lobbies or educational campuses across the region.
Connectivity is streamlined via a USB-C port supporting DP 1.2, 65W power delivery, and 100M Ethernet, alongside HDMI input/output for tiling up to nine screens. Internal resources include 4GB RAM and 32GB storage, driven by a Quad-core ARM Cortex A55 processor. Remote content updates and software management are facilitated through myViewBoard Manager, allowing administrators to control multiple units efficiently without physical access to each display.
Key features
- 4K UHD Clarity - The 98-inch panel offers a native 3840 x 2160 resolution with 500 nits brightness for high-impact visual content.
- USB-C Connectivity - Single-cable solution supports DisplayPort 1.2, 65W PD charging, and 100M Ethernet for streamlined device integration.
- Multi-Screen Tiling - HDMI input and output ports enable seamless tiling of up to nine units for expansive digital signage walls.
- Remote Management - myViewBoard Manager allows centralized content broadcasting and software updates for efficient fleet administration.
- Cable-Free Casting - Built-in vCast and myViewBoard Display support wireless screen sharing with Airplay and Chromecast compatibility.
Ideal for corporate boardrooms, university lecture halls, and retail spaces requiring large-format displays, this model suits multi-site buyers across the GCC and Africa seeking reliable digital signage solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- CDE9830
- Key features
- Multiple Ways To Connect And Share Content, AV Control System Interoperability, Centralized Control Device Management, Reliable 24/7 Operation Rating, Superb And Stunning Picture Quality, Powerful Secured Embedded Platform
- Orientation
- Landscape & Portrait
Display
- Backlight
- Direct LED
- Brightness
- 500 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Resolution
- 4K UHD
- Screen size
- 98"
- Surface protection
- Anti-glare, 3H hardness, 25% haze
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1 (typ.), 5,000:1 (DCR)
- Panel technology
- ADS
- Response time
- 8 ms
System
- Processor
- Amlogic T982
- OPS slot
- Yes (80-pin Intel OPS)
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Built-in
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 3
- HDMI output
- HDMI Out × 1
- Serial port
- RS-232 × 1
- USB-C
- USB-C × 1
- USB ports
- USB 3.0 × 1, USB 2.0 × 1
- Wi-Fi
- Built-in
Camera & audio
- Audio out
- SPDIF out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- In the box
- Wireless Presentation Display, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, USB-C cable, Wall Mount Screws and RS232 cable
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 190 W (typical)
- Standby power
- < 0.5 W
- Dimensions
- 2212.9 x 1268.4 x 79 mm
- Weight
- 69.4 kg
- Shipping dimensions
- 2360 x 1425 x 280 mm
- VESA mount
- 800 x 400 mm, M8 x 25 mm
- Warranty
- 3 years (parts, labor and backlight)
- Bezel size
- 25 mm (0.98 in)
- Input voltage
- 100–240 V AC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What are the power requirements for this display?
The unit accepts 100-240 VAC ±10% input. Typical consumption is 190W, dropping below 0.5W in standby mode. Ensure local voltage stability matches these specifications for optimal performance.
Can this display be installed outside the UAE?
On-site installation is provided within the UAE only. For other GCC and African countries, the unit is delivered ready for local setup, with remote guidance available if needed to assist with configuration.
Which countries does Smart-Boards ship to?
We ship to GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times depend on the specific country and order size, confirmed on your quotation.

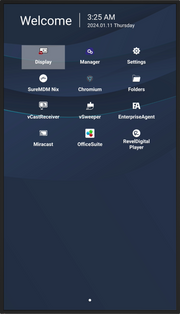

Does it support portrait orientation?
Yes, the display supports both landscape and portrait modes. The physical dimensions and mounting points remain consistent, allowing flexible rotation for vertical content displays in lobbies or information kiosks.
Is the warranty manufacturer-backed?
Yes, the product includes the standard manufacturer warranty plus Smart-Boards after-sales support. We assist with documentation and logistics, ensuring continuity for your installation project.
How many screens can be tiled together?
The CDE9830 supports HDMI input and output, allowing you to tile up to nine screens together. This creates a large, unified display suitable for digital signage networks in corporate or educational environments.
What is the net weight of the 98-inch unit?
The net weight is 69.40 kg (153.0 lbs). The gross weight with packaging is 90.30 kg (199.1 lbs). Ensure your mounting structure can support this load for secure and safe installation.
