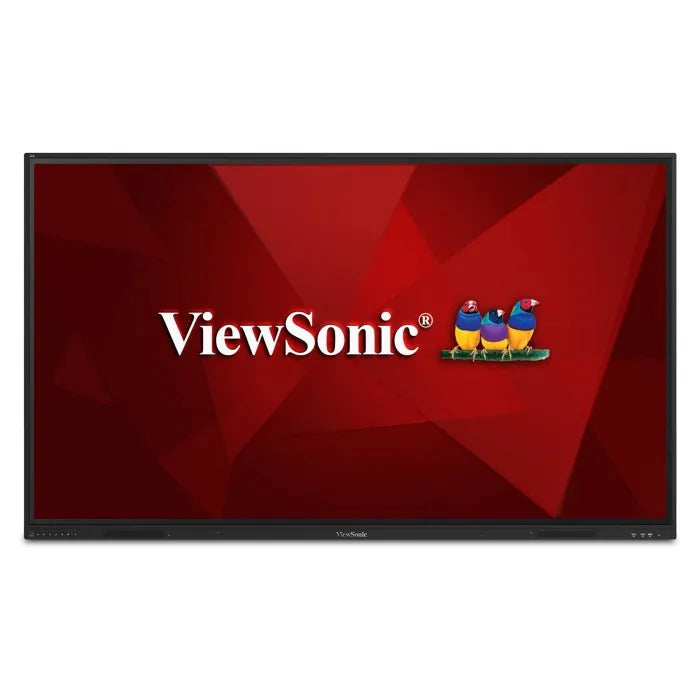

The ViewSonic ViewBoard IFP86G1 is an 86-inch UHD interactive flat panel designed for Bring Your Own Device workflows. It features 40-point touch, 400 nits brightness, and versatile USB-C and OPS connectivity. Smart-Boards supplies this display to organisations in the GCC and Africa.
This 86-inch TFT LCD display delivers a UHD 3840x2160 resolution with 400 nits brightness and a 4000:1 contrast ratio. The surface features a 9H anti-glare coating for clarity in varied lighting. Its slim bezel design supports landscape orientation, fitting seamlessly into modern boardrooms and lecture halls across the GCC and African markets.
Connectivity includes USB-C with 65W PD, RJ45, and RS232 ports, alongside an OPS slot for slot-in PCs. The unit supports 40-point touch on Windows and 20-point on Android, with touch resolution up to 32767 × 32767. We provide quotation-only pricing, including education and government tender options, with delivery times confirmed based on country and order size.
Key features
- UHD Visuals - The 86-inch panel provides 3840x2160 resolution with 1.07 billion colors and 400 nits typical brightness.
- Multi-Touch Input - Supports 40 points of touch for Windows compatibility and 20 points for Android systems.
- Versatile Connectivity - Includes USB-C with 65W Power Delivery, RJ45, RS232, and an OPS slot for slot-in computing devices.
- Secure Operations - Data remains on connected devices for security, with a light sensor and low power consumption in off mode.
- Mounting Options - Compatible with standard VESA 800mm x 600mm wall mounts for flexible installation setups.
Ideal for schools, universities, and corporate training rooms across the GCC and Africa requiring a reliable, OS-free interactive display.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power cable 3 m, HDMI 2.0 cable 3 m × 1, USB 2.0 touch cable 3 m × 1
- Orientation
- Landscape
Display
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Colour depth
- 1.07G
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 4000:1 (typ.) 6000:1 (DCR)
- Panel technology
- TFT LCD Module with DLED Backlight.
- Response time
- 8ms
Touch
- Touch points
- 40 Points Multi Touch
- Touch resolution
- 32767 × 32767
- Touch response time
- < 5 ms
- Touch technology
- Infrared
System
- Processor
- MTK3683
- OPS slot
- x1
Connectivity
- Ethernet (RJ45)
- Gigabit LAN (RJ45) × 2
- HDMI input
- HDMI In (HDMI 2.0) × 3
- Serial port
- RS232 × 1
- Touch USB ports
- USB 2.0 touch cable × 1
- USB-C
- USB Type C 65W × 1
- USB ports
- USB 3.0 × 2, USB 2.0 × 6
- VGA input
- VGA × 1
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Speaker output
- 10W × 2
- Speaker type
- Built-in Speakers
- Audio
- x1
Physical & warranty
- In the box
- Remote control with AAA battery (Opt.), Touch pen (Passive pen) × 2 (VB-PEN-002), Quick Start Guide + Compliance statement, RS232 adapter, Screw (wall mount 4), Camera Plate
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C - 40 °C
- Power consumption
- 154.9 W
- Standby power
- < 0.5 W
- Dimensions
- 1957 × 1160 × 85.7 mm
- Weight
- 62.35 kg
- Shipping dimensions
- 2110 × 1283 × 225 mm
- VESA mount
- 800 × 600 mm (VESA)
- Warranty
- 3 years
- Shipping weight
- 164.58lb/74.65kg
- Bezel size
- Slim
- Input voltage
- 100-240VAC +/- 10% Wide Range
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this product be delivered to my country?
Yes, we ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations. Delivery times depend on the country and order size, confirmed in your quotation.
Do you provide installation outside the UAE?
On-site installation is available only within the UAE. For other countries, we deliver the unit ready for local setup with remote guidance if needed. Please contact us for specific regional support details.
What is the touch technology used?
It uses Ultra Fine Touch Technology with IR recognition, supporting up to 40 touch points on Windows and 20 on Android.
Is an OPS module included?
The panel includes an OPS slot for slot-in PCs but does not include the module itself. You can add an EDLA, Windows, or Chromebox OPS unit separately.
What is the display's weight?
The net weight is 62.35kg (137.46lb) and the gross weight is 74.65kg (164.58lb). Ensure your mounting structure supports this load.
Does it support wide voltage ranges?
Yes, it operates on 100-240VAC +/- 10%, making it suitable for various power standards across different countries in our supply region.
What warranty is provided?
We provide the manufacturer's warranty plus Smart-Boards after-sales support. Specific warranty lengths are confirmed on your quotation.
