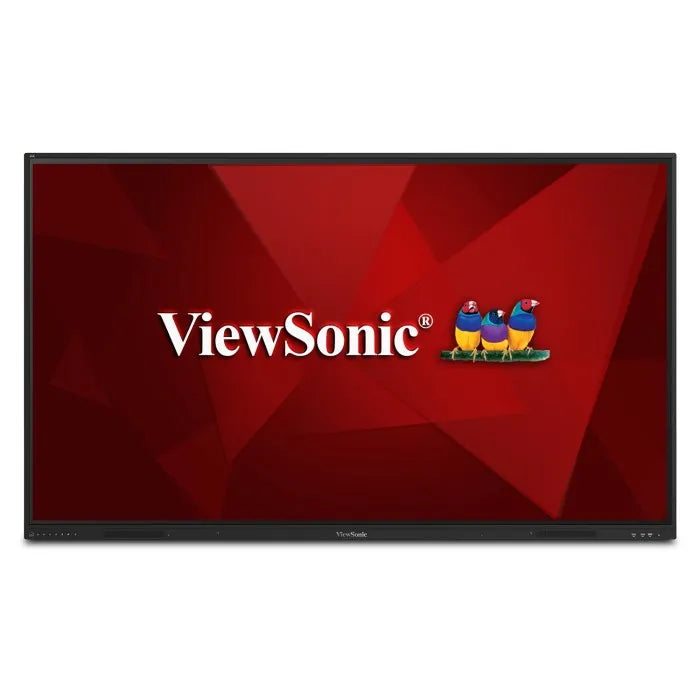

The ViewSonic ViewBoard IFP75G1 is a 75-inch UHD interactive flat panel designed for Bring Your Own Device workflows. This OS-free display supports 40-point touch and offers versatile connectivity, including USB-C and OPS slots. Smart-Boards supplies this unit to educational and corporate clients across the GCC and Africa, providing quotation-based pricing and regional logistics support.
This 75-inch interactive display features a 3840x2160 UHD resolution and a 400-nit brightness level for clear visibility in varied lighting. The surface includes a 9H anti-glare coating to maintain image quality. Touch performance utilizes IR recognition, supporting up to 40 simultaneous touch points on Windows devices. The slim-bezel design allows for clean integration in boardrooms and lecture halls without visual distraction.
Connectivity options include a front USB-C port supporting DP 1.2, data sharing, and 65W power delivery. The unit also provides three front Type-A ports and rear USB connections for peripheral attachment. An OPS slot allows for slot-in PCs running EDLA, Windows, Chromebox, or Linux, enabling access to Google Workspace and Microsoft 365. The wide-range voltage (100-240VAC) supports global power standards, and the 800x400mm VESA mount ensures flexible wall installation.
Key features
- UHD Visual Clarity - The 75-inch TFT LCD panel delivers a 3840x2160 resolution with 1.07 billion colors and 400 nits brightness for sharp, vibrant images.
- 40-Point Touch Tech - Ultra Fine Touch Technology enables 40 simultaneous touch points for Windows and 20 for Android, facilitating collaborative multi-user sessions.
- Flexible OPS Integration - A dedicated OPS slot supports slot-in computers running EDLA, Windows, Chromebox, or Linux to install productivity suites like Google Workspace.
- USB-C Connectivity - A front USB-C port supports DisplayPort 1.2, touch input, data sharing, and 65W power delivery for single-cable device connection.
- Secure Data Handling - The OS-free design ensures sensitive information remains stored on the connected BYOD device rather than the display, enhancing workflow security.
Ideal for: This display suits schools, universities, and corporate offices in the GCC and Africa requiring a BYOD interactive solution with multi-site deployment capabilities.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- 3m power cable, HDMI 2.0 cable 3m × 1, 3m USB 2.0 touch cable × 1
- Orientation
- Landscape
Display
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Colour depth
- 1.07G
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1200:1 (typ.) 6000:1 (DCR)
- Panel technology
- TFT LCD Module with DLED Backlight.
- Response time
- 8ms
Touch
- Touch points
- 40 Points Multi Touch
- Touch resolution
- 32767 × 32767
- Touch response time
- < 5 ms
- Touch technology
- Infrared
System
- Processor
- MTK3683
- OPS slot
- x1
Connectivity
- Ethernet (RJ45)
- Gigabit LAN (RJ45) × 2
- HDMI input
- HDMI In (HDMI 2.0) × 3
- Serial port
- RS232 × 1
- Touch USB ports
- USB 2.0 touch cable × 1
- USB-C
- USB Type C 65W × 1
- USB ports
- USB 3.0 × 2, USB 2.0 × 6
- VGA input
- VGA × 1
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Speaker output
- 10W × 2
- Speaker type
- Built-in Speakers
- Audio
- x1
Physical & warranty
- In the box
- Remote control with AAA battery (Opt.), Touch pen (Passive pen) × 2, Quick Start Guide + Compliance statement, RS232 adapter, Screw (wall mount 4), Camera Plate
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C - 40 °C
- Power consumption
- 110.9 W
- Standby power
- < 0.5 W
- Dimensions
- 1708 × 1020 × 85.7 mm
- Weight
- 49.6 kg
- Shipping dimensions
- 1863 × 1140 × 225 mm
- VESA mount
- 800 × 400 mm (VESA)
- Warranty
- 3 years
- Shipping weight
- 137.35lb/62.30kg
- Bezel size
- Slim
- Input voltage
- 100-240VAC +/- 10% Wide Range
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can the ViewSonic IFP75G1 be delivered to KSA and Qatar?
Yes, Smart-Boards ships to GCC countries including KSA and Qatar through established logistics partners. Delivery times depend on the country and order size, and are confirmed in the quotation. The unit arrives ready for local setup with remote guidance if needed.
Is on-site installation available in KSA or Qatar?
On-site installation is available within the UAE only. For deliveries to KSA, Qatar, or other African countries, the display is shipped ready for local setup. Remote guidance is provided to assist local technicians with mounting and configuration.
Does this model include an operating system?
No, the IFP75G1 is OS-free and designed for Bring Your Own Device use. You can insert a slot-in PC via the OPS slot to run Windows, Linux, Chromebox, or EDLA systems for access to productivity suites.
What is the maximum number of simultaneous touch points?
The display supports 40 simultaneous touch points when connected to a Windows device. When connected to an Android device, it supports 20 simultaneous touch points. This allows for collaborative writing and navigation in meeting rooms.
What power requirements does the IFP75G1 have?
The unit accepts a wide-range voltage of 100-240VAC +/- 10%. Power consumption is 110.82W when on and less than 0.5W in off mode. This wide range makes it suitable for various power infrastructures across the GCC and Africa.
Does the panel support wall mounting?
Yes, the display supports VESA mounting with a pattern of 800mm x 400mm. The slim design and 49.60kg weight allow for standard wall brackets. Smart-Boards can provide mounting accessories upon request during the quotation process.
Is a demonstration available before purchase?
Yes, Smart-Boards offers live or virtual demonstrations before purchase. This allows buyers to verify touch responsiveness, connectivity options, and visual clarity. Contact the team to schedule a demonstration and receive a tailored quotation.
