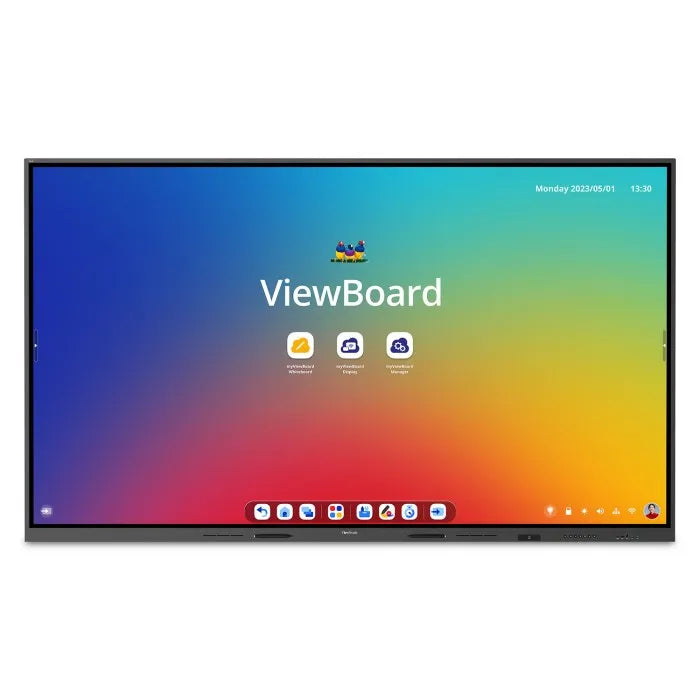

The ViewSonic ViewBoard IFP110 is a 110-inch 4K interactive flat panel designed for large lecture halls and corporate auditoriums. It features an octa-core processor, 8GB RAM, and integrated NFC for secure sign-in. Smart-Boards supplies this unit to schools and ministries across the GCC and Africa.
This display delivers a 3840x2160 UHD image with 500-nit brightness on a 16:9 TFT LCD panel, ensuring clarity in well-lit environments. The surface includes a 7H anti-glare coating to reduce reflections during presentations. Connectivity is extensive, featuring multiple USB-C ports with Power Delivery, DisplayPort, and RS232 for system integration. An integrated 8-array microphone improves audio capture for video conferencing, while the light sensor automatically adjusts screen settings for energy efficiency.
Operating on Android, the IFP110 runs myViewBoard software for annotation and wireless casting with touch feedback via ViewBoard Cast. Users can sign in using Google, Microsoft, or Apple IDs, or through NFC cards for security. The device includes an OPS slot for a Windows PC and a WiFi module slot to expand network capabilities. Weighing 120.2 kg, it requires a VESA 1000 x 800 wall mount for safe installation in high-traffic educational or government facilities.
Key features
- Visual Clarity - The 110-inch panel provides UHD 3840x2160 resolution with 1.07 billion colors and 500 nits brightness for clear visibility in large rooms.
- Interactive Touch - Infrared recognition supports up to 40 touch points on Windows and 20 on Android, with a touch resolution of 32767 x 32767 for precise control.
- System Performance - An octa-core CPU, 8GB LPDDR RAM, and 128GB eMMC storage ensure smooth operation of integrated apps and wireless presentation tools.
- Audio Capture - A built-in 8-array microphone array captures voice clearly from across the room, enhancing audio quality for hybrid meetings and remote learning.
- Connectivity Ports - The rear and front panels include USB 3.0 SmartPort, HDMI, DisplayPort, RJ45 network ports, and RS232 for comprehensive device integration.
- Security Access - Integrated NFC reader and single-service sign-in options for Google, Microsoft, and Apple allow secure and rapid user authentication.
Ideal for university lecture halls, government ministry briefing rooms, and corporate training centers across the GCC and Africa requiring large-format collaboration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- 3m Power Cord, 1.8m USB-C Cable, 3m USB Touch Cable, 3m HDMI cable
- Orientation
- Landscape
Display
- Backlight
- DLED
- Brightness
- 500 cd/m²
- Colour depth
- 1.07G colors
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 110"
- Surface protection
- Hardness: 7H, Anti-glare coating
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1200:1(Typ.); 5000:1(Min. with DCR enabled)
- Panel technology
- TFT LCD module with DLED backlight
- Response time
- 8ms
Touch
- Touch points
- Windows: 40 Android: 20
- Touch resolution
- 32767 x 32767
- Touch response time
- 8 ms
- Touch technology
- Infrared
System
- Processor
- Octa-Core CPU (A73 × 4 + A53 × 4)
- Graphics
- Mali-G52
- OPS slot
- X1 OPS Slot
- RAM
- 8 GB
- Storage
- 128 GB
- Operating hours
- 16/7
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- 1
- Ethernet (RJ45)
- X2 (in x 1；out x 1)
- HDMI input
- HDMI In (HDMI 2.0) × 2, HDMI In (HDMI 2.1) × 1
- HDMI output
- HDMI Out × 1
- Serial port
- RS232 × 1
- Touch USB ports
- 3 (Front x1, Bottom x 1, Rear x 1)
- USB-C
- 3 [Rear x 2: 1x (PD100W + DP1.2 + Touch + USB 3.0 & USB 2.0 ; 1x(USB 3.0 only) ; Front x 1(PD65W + DP1.2 + Touch + 100M sharing, USB 3.0 & USB 2.0)]
- USB ports
- USB2.0 x 1 (Rear x 1) (for FW upgrade); USB3.0 x 4 (Rear x 2 + Front x2 )
- VGA input
- 1
- Wi-Fi
- X1 Module Slot
Camera & audio
- Audio in
- Line In × 1
- Audio out
- SPDIF × 1
- Speaker output
- 15W × 2 + 20W (Subwoofer)
- Speaker type
- Built-in Speakers
- Audio
- 1 (3.5mm phone jack)
- Microphone
- Beamforming array × 8, full duplex echo cancellation
Physical & warranty
- In the box
- Remote control, AAA battery, Stylus × 2, QSG + Compliance statement, RS232 adapter, Clamp × 5, Camera Plate, Screw × 8 (camera 2+2, wall mount 4), VB-WIFI-005 WiFi Adapter
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C - 40 °C
- Power consumption
- On:175.46W ; Off: ≤ 0.5W
- Standby power
- < 0.5 W
- Dimensions
- 98.70 x 58.06 x 3.81 in; 2507.1 x 1474.8 x 96.8 mm
- Weight
- 265lb/120.2kg
- Shipping dimensions
- 105.7 x 64.17 x 12.2 in; 2685 × 1630 x 310 mm
- VESA mount
- 1000 × 800 mm (VESA)
- Warranty
- 3 years
- Shipping weight
- 427.69lb/194kg
- Input voltage
- 100-240VAC +/- 10% Wide Range
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the ViewSonic IFP110 include a wall mount?
No, the wall mount is not included with the display. You must purchase a compatible VESA 1000 x 800 mount separately. Smart-Boards can advise on suitable mounting hardware for your specific site requirements.
What is the maximum viewing distance for this screen?
Viewing distance depends on room acoustics and seating layout. While the 110-inch screen is designed for large audiences, optimal clarity is achieved when viewers are within a range that allows them to read text details clearly without straining.
Can I use my own Windows PC with this display?
Yes. You can connect a Windows PC via HDMI or DisplayPort. Alternatively, you can install an optional Windows slot-in PC into the dedicated OPS slot for a fully integrated system with shared USB connectivity.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times vary by location and order size, and are confirmed on your specific quotation.
Is installation available outside the UAE?
On-site installation is only available within the UAE. For other countries, the unit is delivered ready for local setup. We provide remote guidance to assist your local technicians with the installation process.
Does the IFP110 support wireless presentation?
Yes, it supports wireless casting via ViewBoard Cast, which includes touch feedback capabilities. This allows presenters to share content from their devices directly to the screen without physical cables.
What are the power consumption specs?
The unit consumes 175.46W when on and less than 0.5W when off. It supports a wide voltage range of 100-240VAC, making it suitable for different electrical standards in the GCC and African regions.
