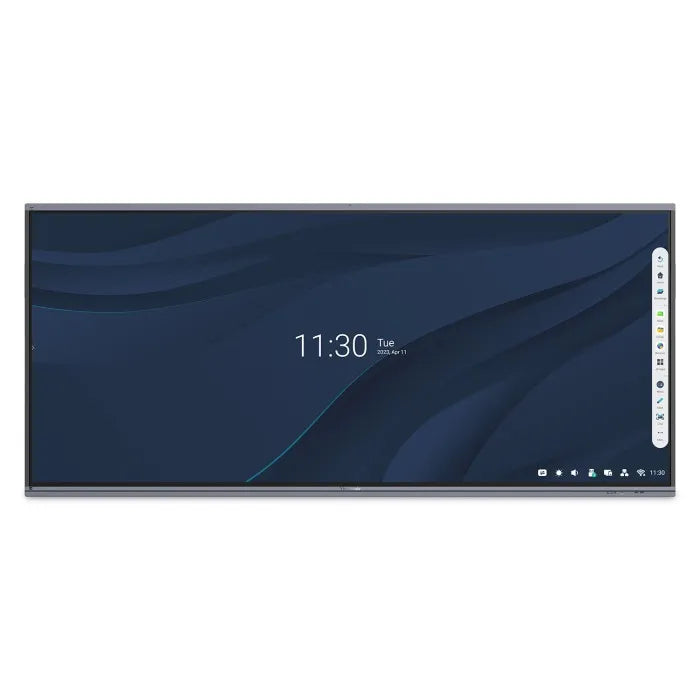

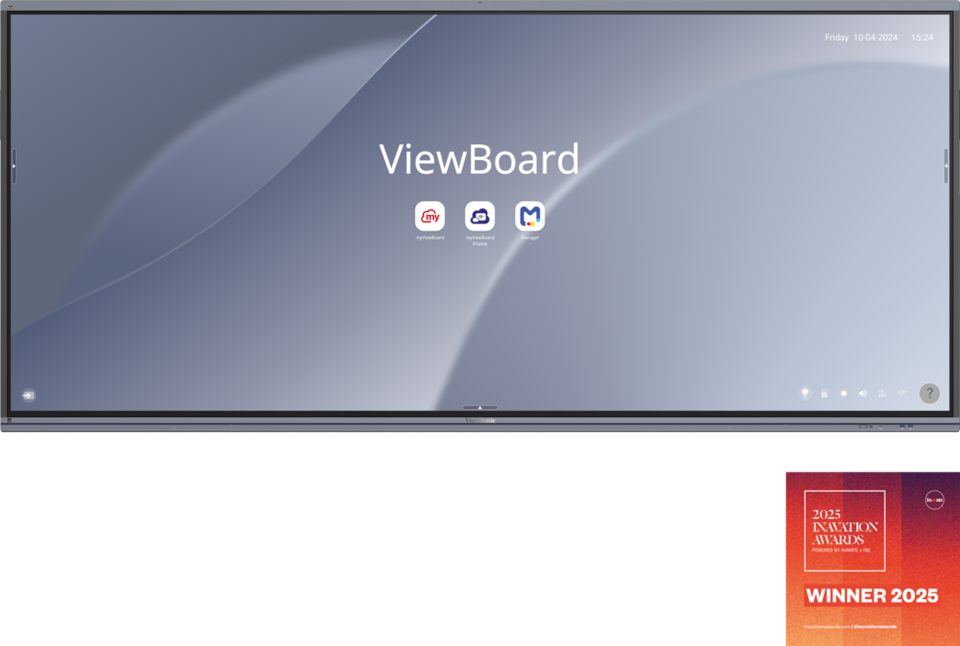

The ViewSonic ViewBoard IFP105UW is a 105-inch 5K interactive flat panel designed for large-scale collaboration in GCC and African enterprises. It features a 21:9 WUHD display, 40-point touch, and integrated 8-array microphones, supplied by Smart-Boards from Dubai for regional deployment.
This 105-inch display delivers WUHD 5120x2160 resolution across a 21:9 aspect ratio, providing ample horizontal space for split-screen multitasking. The TFT LCD panel with DLED backlighting offers 400 nits of brightness and a 4000:1 contrast ratio. Its octa-core processor, 8GB RAM, and 128GB storage ensure smooth operation of the built-in Android interface. The screen surface includes a 3H hard coating and 7H anti-glare glass to maintain clarity in well-lit meeting rooms.
Connectivity is comprehensive, with two RJ45 ports for network integration and multiple USB 3.2 Gen 1 ports for peripheral access. An X1 OPS slot allows for slot-in computing modules, while the rear USB-C port supports 65W Power Delivery with OPS or 100W without. Wireless presentation is handled via vCast or AirSync, and the embedded myViewBoard software supports annotation. An integrated 8-array microphone array captures audio clearly for hybrid collaboration sessions.
Key features
- Ultra-Wide 5K Display - The 105-inch panel provides WUHD 5120x2160 resolution with a 21:9 aspect ratio for expanded multitasking capabilities.
- High Responsiveness - Infrared technology supports up to 40 touch points simultaneously with a touch resolution of 32767 x 32767.
- Integrated Audio - An eight-array microphone system is built into the frame to capture voice clearly for video conferencing applications.
- Flexible Connectivity - Includes dual RJ45 ports, an OPS slot, and USB-C ports with up to 100W Power Delivery for versatile device integration.
- Software Ecosystem - Comes with myViewBoard Whiteboard for Android and Windows, plus vCast wireless presentation tools for instant sharing.
Ideal for: The ViewSonic IFP105UW is ideal for large boardrooms, lecture halls, and command centers requiring expansive visual collaboration, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- 3 m Power Cord, 1.8 m USB-C Cable, 3 m USB Touch Cable, 3 m HDMI Cable
- Orientation
- Landscape
Display
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Colour depth
- 1.07B colors
- Refresh rate
- 60 Hz
- Resolution
- 5120 × 2160
- Screen size
- 105"
- Surface protection
- Panel Hard Coating 3H; Glass Anti-Glare 7H
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 21:9
- Contrast ratio
- 4000:1(Typ.); 5000:1(Max. with DCR enabled)
- Panel technology
- TFT LCD Module with DLED Backlight, VA
- Response time
- 6.5ms
Touch
- Touch points
- Windows: 40 Android: 20
- Touch resolution
- 32767 x 32767
- Touch response time
- < 5 ms
- Touch technology
- Infrared
System
- Processor
- Octa-Core CPU (A76 × 4 + A55 × 4)
- Graphics
- Mali-G610
- OPS slot
- X1 OPS Slot
- Operating system
- ViewBoard OS
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- DisplayPort Input × 1
- Ethernet (RJ45)
- X2 (inx1；outx1；1000m for Android/PC；100m for type-C)
- HDMI input
- HDMI In (HDMI 2.0) × 3, HDMI In (HDMI 2.1) × 1
- HDMI output
- HDMI Out × 1
- Serial port
- RS232 × 1
- Touch USB ports
- 3 (Bottom x 1; Rear x 2)
- USB-C functions
- 60W Charging
- USB-C
- 2 [Rearx1: PD65W(65W with OPS, 100W without OPS) + DP1.2 + Data + 10M/100M sharing ; Front x1:PD15W + DP1.2 + Data + 10M/100M sharing]
- USB ports
- USB 2.0 x 1 (Bottom) (for FW upgrade); USB 3.2 Gen 1 x 6 (Top x 2 + Rear x 2 + Front x2 ), all support Smart USB
- Wi-Fi
- X1 Module Slot
Camera & audio
- Audio in
- Line In × 1
- Audio out
- SPDIF × 1
- Speaker output
- 16W × 2 + 15W (Subwoofer)
- Speaker type
- Built-in Speakers
- Audio
- 1
- Microphone
- Built-in 8 Array Microphone
Physical & warranty
- In the box
- Remote control with AAA battery, Stylus × 2, QSG + Compliance statement, RS232 adapter, Clamp × 5, Camera Plate, Screw × 8 (camera 2+2, wall mount 4), VB-WIFI-004 WiFi Adapter
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C - 40 °C
- Power consumption
- On: 176W(Energy Star) / Off: <0.5W
- Standby power
- < 0.5 W
- Dimensions
- 98.71 x 44.49 x 4.06 in / 2507.2 x 1130.1 x 103.2mm
- Weight
- 201.5lb/ 91.4kg
- Shipping dimensions
- 105.04 x 51.38 x 11.02 in / 2668 x 1305 x 280 mm
- VESA mount
- 1000 × 400 mm (VESA)
- Warranty
- 3 years
- Shipping weight
- 255.9lb/116.1kg
- Bezel size
- 19.5/19.5/29.8/41.2 mm
- Input voltage
- 100-240VAC +/- 10% Wide Range
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the resolution of the ViewSonic IFP105UW?
It features WUHD 5120x2160 resolution. This provides high clarity for detailed maps, code, or data visualization in large spaces.
Does this unit have built-in speakers?
The specifications list an audio output port but do not confirm internal speaker wattage. We recommend checking the specific quotation for audio accessory details.
Can I use the OPS slot with my own PC?
Yes, it has one X1 OPS slot. This allows you to insert a compatible Windows or Linux computing module directly into the display for standalone operation.
Which countries can the IFP105UW be delivered to?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup with remote guidance if needed.
What is the weight of the display for shipping?
The net weight is 91.4kg (201.5lb). The gross packaging weight is 116.1kg (255.9lb). This affects freight costs for international delivery.
Does it support wireless screen casting?
Yes, it supports vCast and AirSync for wireless presentation. This allows users to share content from laptops or tablets without physical cables.
