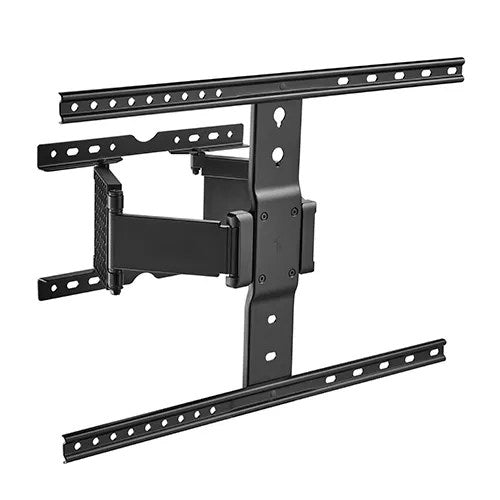

VSYS VS02US-464 Ultra-Slim Full-Motion Wall Mount for 43"–90" Displays, 50 kg. A 19.5 mm folded profile that hides the fact the screen moves at all.
Most full-motion arms announce themselves. Park the screen and there is still a visible gap, a shadow line, a bracket you can see from the side. The VSYS VS02US-464 closes to 19.5 mm - close enough that a 43" to 90" panel reads as a flush-fitted display in a finished boardroom, showroom or hotel suite, right up until someone pulls it out to 250 mm and swings it towards a different seat. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
The structure is steel and plastic, RoHS certified, and strength tested to four times its 50 kg rating. Movement is tilt from plus 3 to minus 15 degrees on a free-tilting head, swivel of 30 degrees each way, and an independent plus 3 to minus 3 degree levelling correction. The wall plate is built for solid masonry or a dual-stud fixing at 406 mm or 450 mm centres, which is what allows a slim arm to carry a 90" panel. Decorative covers clip over the arm to hide the cable runs.
Key features
- 19.5 mm folded depth - the defining figure of this model, giving a near-flush look in rooms where a protruding bracket would be noticed
- Extends to 250 mm and swivels 30 degrees each way, so the screen still serves seating that is off to one side
- 50 kg rating, strength tested to four times that load, covering 43" to 90" panels
- Free-tilting head runs plus 3 to minus 15 degrees and settles under the weight of the screen rather than needing a tool
- VESA 100x200 mm to 600x400 mm, with a maximum mounting hole span of 602x400 mm
- Dual-stud wall plate at 406 mm or 450 mm centres spreads the load of a large panel across two studs
- Plus 3 to minus 3 degree levelling adjustment squares the picture once the plate is fixed
- Decorative cable covers supplied in the box conceal the wiring along the arm
- RoHS certified steel and plastic construction
- Hook-on bubble level and printed installation guide included for a first-time-right fit
| Brand | VSYS |
|---|---|
| Cable management | Decorative clip-on cable covers along the arm |
| Display compatibility | 43 inch to 90 inch flat or curved panels |
| In the box | Ultra-slim full-motion arm, wall plate, mounting hardware bag, decorative cable covers, hook-on bubble level, printed installation guide |
| Material | Steel and plastic, RoHS certified |
| Max load | 50 kg (110 lbs) |
| Mounting type | Wall mount, ultra-slim full-motion arm |
| Screen levelling | Plus 3 to minus 3 degrees |
| Swivel range | Plus 30 to minus 30 degrees |
|---|---|
| Testing | RoHS, strength tested to 4 times rated load |
| Tilt range | Plus 3 to minus 15 degrees, free-tilting head |
| Vesa pattern | 100x200 mm to 600x400 mm, maximum hole span 602x400 mm |
| Wall distance | 19.5 mm folded, 250 mm fully extended |
| Wall fixing | Solid wall or dual stud at 406 mm or 450 mm centres |
| Model | VS02US-464 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS02US-464?
It is an ultra-slim full-motion wall mount for a 43" to 90" display weighing up to 50 kg. Folded it holds the screen 19.5 mm from the wall; extended it reaches 250 mm, swivels 30 degrees each way and tilts plus 3 to minus 15 degrees.
2. Is it compatible with my display?
Yes - if the screen is 43" to 90", weighs 50 kg or less and has a VESA pattern between 100x200 mm and 600x400 mm, it will fit. The maximum mounting hole span is 602x400 mm. Tell us your display model when you request a quote and we will confirm the exact fit.
3. How slim is it really when folded?
19.5 mm. That is the whole point of this model. At that depth a large panel reads as a fixed installation from across the room, so you get articulation in spaces where a visible arm would look wrong - executive boardrooms, showrooms, hotel suites.
4. Does a slim arm mean a weaker mount?
No. It is rated at 50 kg and strength tested to four times that figure, and the wall plate is designed for a dual-stud fixing at 406 mm or 450 mm centres rather than a single stud. Spreading the load across two studs is what lets a low-profile arm carry a 90" panel.
5. How is the cabling hidden?
Decorative covers are supplied with the mount and clip over the arm, concealing the cable run as the screen moves. With a 19.5 mm folded depth there is very little room for loose cable, so the covers matter more here than on a deeper arm.
6. Do you ship the VSYS VS02US-464 across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VS02US-464?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request. Plan the fixing for solid masonry or two studs at 406 mm or 450 mm spacing.
9. Is it certified for corporate and government procurement?
The construction is RoHS certified and strength tested to four times the rated load. We can supply that documentation with the quotation for tender submissions - tell us what your procurement file needs when you ask for pricing.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
