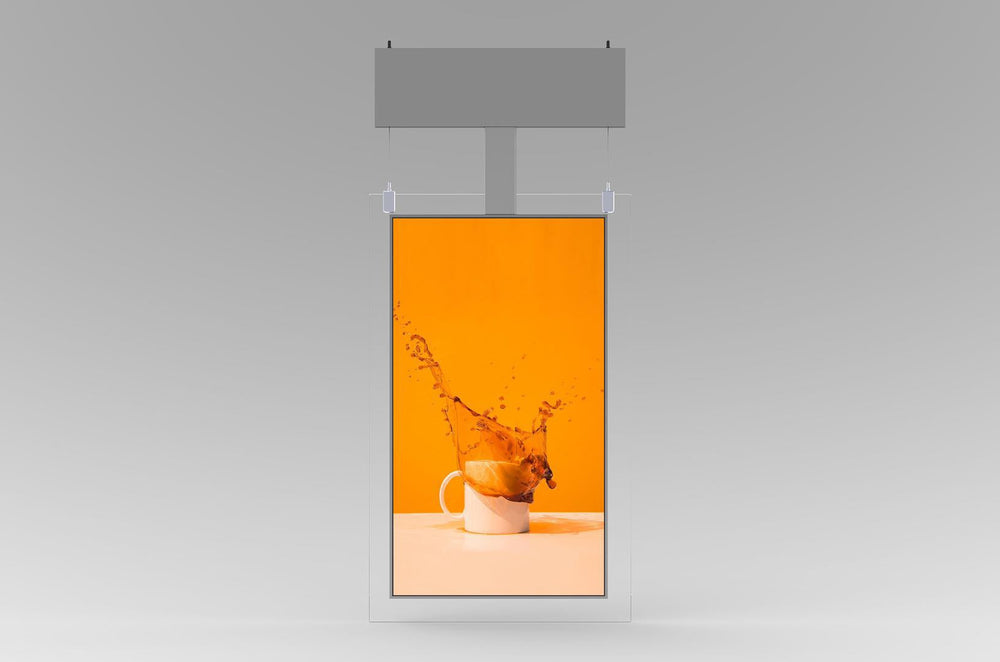

The Trend TD-43DHDTU is a 43-inch Ultra HD dual-sided hanging digital signage display designed for high-visibility environments. It features 700 nits brightness on the primary side and 350 nits on the reverse, housed in a 20mm slim chassis. Smart-Boards supplies this model across the GCC and Africa.
This dual-sided hanging display uses tempered glass to embed two LCD screens, delivering content visible from both sides. The primary screen offers 700 nits brightness, while the secondary side provides 350 nits, ensuring clarity in varying light conditions. The 43-inch panel delivers a 3840x2160 UHD resolution with a 16:9 aspect ratio, housed in a sleek white or black finish. Weighing 15kg plus 3kg for mounting hardware, it supports 24/7 operation within a 0°C to 50°C temperature range.
Powered by a Rockchip RK3288 quad-core processor with 2GB DDR3 memory and 8GB storage, the unit runs Android 5.1 for content management. It includes an RJ45 wired interface and supports optional 3G, 4G, Wi-Fi, and Bluetooth connectivity. The display allows split-screen modes and remote information publishing for multi-site control. Maximum power consumption is 85W, and it includes a 1-year manufacturer warranty with Smart-Boards' after-sales support.
Key features
- Dual-Sided Design - Two LCD screens embedded in tempered glass deliver content visible from opposite directions for lobby or corridor placement.
- High Brightness - The primary display achieves 700 cd/㎡ brightness, ensuring readability in well-lit environments, while the reverse side offers 350 cd/㎡.
- UHD Resolution - Each screen provides 3840x2160 resolution for sharp text and imagery, suitable for detailed digital signage content.
- Slim Form Factor - A 20mm thickness and hanging installation method save space while maintaining a professional appearance in corporate settings.
- Connectivity Options - Supports RJ45 wired networking with optional 3G, 4G, Wi-Fi, and Bluetooth for flexible content management across sites.
Ideal for: Corporate lobbies, shopping malls, and airport terminals requiring two-way visual communication, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- microSD card slot × 1
- Model
- TD-43DHDTU
- Key features
- Dual-Sided Hanging Display, Output Display signal × 2 (Double screen display)
Display
- Colour
- White & Black
- Brightness
- 700 cd/m²
- Resolution
- 4K UHD
- Screen size
- 43"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Panel technology
- TFT LCD
System
- Processor
- Rockchip RK3288
- Operating system
- Android 5
- RAM
- 2 GB
- Storage
- 8 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Built-in
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 1
- USB ports
- USB × 2
- Wi-Fi
- Built-in
Camera & audio
- Audio out
- Audio out (L/R)
- Speaker output
- 2 × 8 W
Physical & warranty
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0°C to 50°C
- Power consumption
- 85 W
- Dimensions
- 1260 x 400 x 950 mm
- Weight
- 15 kg
- Warranty
- 1 year
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this display suitable for outdoor use?
No. The operating temperature range is 0°C to 50°C, and it requires non-condensing humidity levels of 20% to 80%. It is designed for indoor environments only.
Does it support Wi-Fi connectivity?
Wi-Fi is an optional feature. The standard configuration includes an RJ45 wired network interface. You can specify the optional 3G, 4G, or Wi-Fi modules when requesting a quotation.
Can content be managed remotely?
Yes. The display supports remote information publishing and management software, allowing you to control content across multiple sites from anywhere, provided the network connection is active.
What is the warranty coverage?
The unit comes with a 1-year manufacturer warranty. Smart-Boards provides after-sales support for all products supplied through our authorized reseller status.
Which countries can receive delivery?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners, ensuring cost-effective delivery for your project.
Is installation included outside the UAE?
On-site installation is available within the UAE only. For other countries, the display is delivered ready for local setup, with remote guidance provided if needed to assist your team.
What are the physical dimensions?
The display measures 1260mm in width, 400mm in height (with mounting), and 950mm in depth. The weight is 15kg for the unit and 3kg for the mounting accessories.
