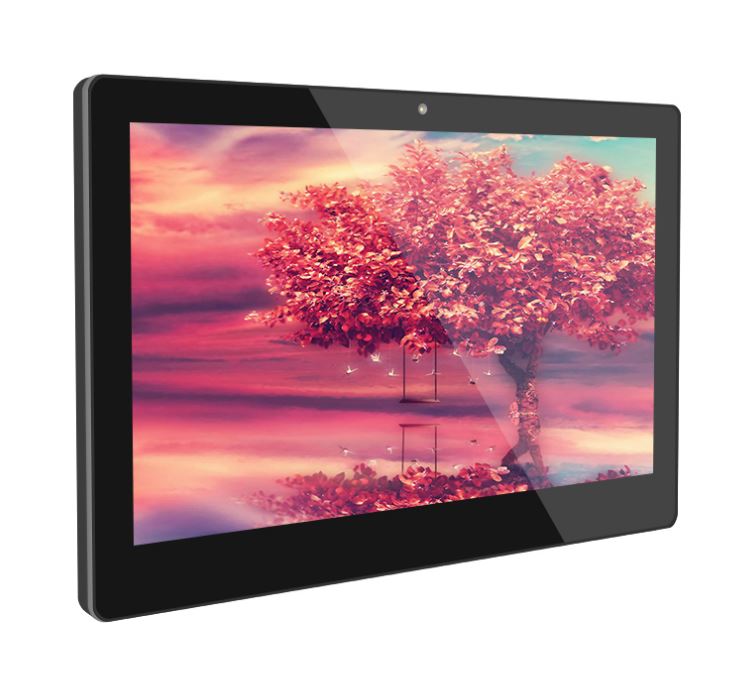

The Trend TD-156CDST is a 15.6-inch compact digital signage display featuring 1920x1080 resolution and 10-point capacitive touch. It supports Android 5.1, Wi-Fi, and PoE for simplified installation. Smart-Boards supplies this unit across the GCC and Africa.
This 15.6-inch LCD panel delivers Full HD visuals with a brightness of 250cd/m² and a 500:1 contrast ratio. The RK3188 octa-core processor runs Android 5.1, managing 1GB RAM and 8GB storage for signage applications. The screen offers an 85-degree viewing angle in all directions, ensuring visibility from multiple positions in meeting rooms or reception areas.
Connectivity includes Wi-Fi 802.11b/g/n, Bluetooth 4.0, and a 10M/100M Ethernet port. Power over Ethernet (IEEE802.3at/af) allows single-cable setup via the RJ45 interface. Inputs include three USB Host ports, an SD card slot, and a 3.5mm earphone jack. A 2.0MP front camera and dual 2W speakers support interactive functions. The unit mounts on 100x100mm VESA surfaces.
Key features
- Touch & Display - The 15.6-inch screen provides 1920x1080 FHD resolution with 10-point capacitive touch control for direct interaction.
- Android System - Powered by Android 5.1 with an RK3188 CPU, 1GB RAM, and 8GB storage for running signage applications.
- PoE Connectivity - The RJ45 port supports IEEE802.3at/af PoE, enabling data and power delivery through a single cable.
- Wireless Links - Built-in Wi-Fi 802.11b/g/n and Bluetooth 4.0 allow wireless content updates and peripheral connections.
- Audio & Video - Includes dual 2W speakers and a 2.0MP front camera for audio output and visual monitoring or conferencing.
- Mounting Options - The display fits standard 100x100mm VESA wall or stand mounts for flexible installation in various environments.
Ideal for: Suitable for meeting rooms, lobbies, and retail signage, this display suits buyers across the GCC and Africa seeking compact, PoE-enabled visual solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- SD card slot
- Model
- TD-156CDST
- Product type
- Compact Digital Signage Display
- Key features
- 10 Point Capacitive Touch, PoE, Front camera 2.0MP
Display
- Brightness
- 250 cd/m²
- Resolution
- Full HD
- Screen size
- 15.6"
- Viewing angle
- 170° (H) / 170° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 500:1
- Panel technology
- LCD
Touch
- Touch points
- 10-point multi-touch
- Touch technology
- PCAP
System
- Processor
- Rockchip RK3188
- Operating system
- Android 5
- RAM
- 2 GB
- Storage
- 8 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Bluetooth 4.0
- Ethernet (RJ45)
- RJ45 × 1
- USB ports
- USB × 3
- Wi-Fi
- 802.11b/g/n
Camera & audio
- Audio out
- 3.5 mm headphone out
- Camera
- 2 MP front
- Speaker output
- 2 × 2 W
Physical & warranty
- In the box
- Adapter, User manual
- Operating temperature
- 0°C to 50°C
- VESA mount
- 100 x 100 mm
- Warranty
- 1 year
- Input voltage
- 12 V DC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the resolution of the Trend TD-156CDST?
The display has a 1920x1080 Full HD resolution on a 15.6-inch LCD panel.
Does this model support Power over Ethernet?
Yes, the RJ45 port supports IEEE802.3at/af PoE for combined power and data transmission.
Which countries do you deliver to?
We ship to GCC countries and African nations through established logistics partners at the lowest possible cost.
Is on-site installation available outside the UAE?
On-site installation is within the UAE only. Other countries receive delivery ready for local setup with remote guidance if needed.
What operating system does it run?
The device runs Android 5.1, providing a versatile platform for digital signage applications.
What accessories are included?
The package includes a 12V/3A adapter and a user manual. No other accessories are listed in the facts.
What is the warranty period?
The manufacturer provides a 1 Year warranty, supplemented by Smart-Boards after-sales support.
