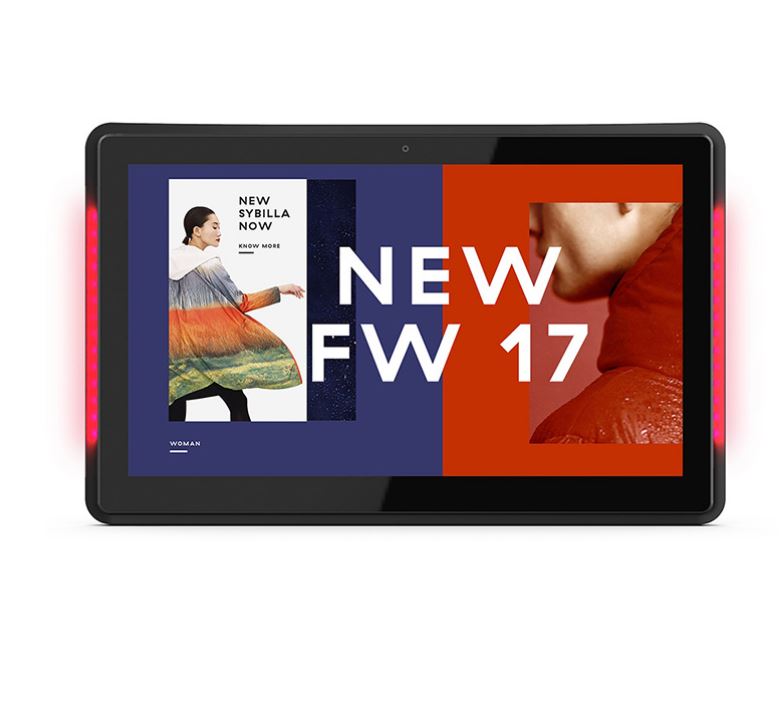

The Trend TD-101CMBSL is a 10.1-inch compact interactive display designed for meeting room booking and status indication. Featuring 10-point capacitive touch, PoE connectivity, and full-border LED lights, it provides clear room availability signals. Smart-Boards supplies this unit across the GCC and Africa.
This compact panel integrates room management functions into a single 10.1-inch IPS device. It features a 1280x800 resolution screen and a quad-core RK3288 processor running Android 5.1 or 8.1. The 10-point capacitive touch interface allows users to interact directly with booking software. An RJ45 port supports Power over Ethernet, simplifying installation by delivering both data and power through one cable. This reduces clutter in executive suites and conference rooms.
Visual status indication is handled by the full-border LED light bar, which changes color to show room availability. Green indicates an open room, blue means booked, and red signifies current usage. A front-facing 2.0MP camera supports video conferencing integration. The unit operates within a 0-40°C temperature range and includes internal 8GB memory with 2GB RAM. Wall mounting is supported via a standard 75x75mm VESA pattern for flexible placement.
Key features
- Room Status Lighting - Full-border LED lights indicate room status with green (available), blue (booked), or red (in use) signals for quick visual checks.
- Power Over Ethernet - The RJ45 port supports IEEE802.3at/af PoE, allowing data connectivity and power delivery through a single cable to simplify installation.
- Touch Interface - A 10-point capacitive touch screen ensures accurate interaction with booking applications, supporting multi-touch gestures for smooth navigation.
- Operating System Options - Users can select between Android 5.1 or Android 8.1 to match their existing software ecosystem and security requirements.
- Connectivity Ports - Includes SD card slot, USB Host, Micro USB OTG, and USB for serial connections, alongside built-in Wi-Fi 802.11b/g/n.
Ideal for: This display is ideal for corporate conference rooms, university meeting spaces, and ministry offices across the GCC and Africa requiring clear room availability indicators and booking integration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- SD card slot
- Model
- TD-101CMBSL
- Product type
- Compact Digital Signage Display
- Key features
- 10 Point Capacitive Touch, POE, LED Light Bar, Front Camera
Display
- Brightness
- 300 cd/m²
- Resolution
- 1280 × 800
- Screen size
- 10.1"
- Viewing angle
- 170° (H) / 170° (V)
- Aspect ratio
- 16:10
- Contrast ratio
- 800:1
- Panel technology
- IPS
System
- Processor
- Rockchip RK3288
- Operating system
- Android 5
- RAM
- 2 GB
- Storage
- 8 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Bluetooth 4.0
- Ethernet (RJ45)
- RJ45 × 1
- USB ports
- USB Host × 1, Micro USB OTG × 1, USB for serial × 1
- Wi-Fi
- 802.11b/g/n
Camera & audio
- Speaker output
- 2 × 1.5 W
Physical & warranty
- In the box
- Adapter, User manual
- Operating temperature
- 0°C to 40°C
- VESA mount
- 75 x 75 mm
- Warranty
- 1 year
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Trend TD-101CMBSL support Power over Ethernet?
Yes, the device supports PoE via its RJ45 port using the IEEE802.3at/af standard. This allows the display to receive both network data and electrical power through a single Ethernet cable, reducing the need for separate power adapters near the mounting location.
What operating systems are available for this model?
The Trend TD-101CMBSL can be configured with either Android 5.1 or Android 8.1. Buyers should specify their preferred version during the quotation process to ensure compatibility with their specific meeting room booking software.
How does the LED light bar indicate room status?
The full-border LED light bar provides visual cues for room availability. It glows green when the room is free, blue when it is booked, and red when a meeting is currently in progress. This allows staff to quickly identify space availability without checking a digital calendar.
Can this display be delivered to countries outside the UAE?
Yes, Smart-Boards ships to all GCC nations including KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African countries. Delivery times and costs depend on the specific destination and order size, which are confirmed on the quotation.
Is on-site installation available in GCC countries other than the UAE?
On-site installation services are provided only within the UAE. For other GCC and African countries, the unit is delivered ready for local setup. Remote guidance is available to assist local technical teams with the mounting and configuration process.
What is the viewing angle of the IPS display?
The 10.1-inch IPS panel offers a wide viewing angle of 85 degrees in all directions (Left, Right, Up, and Down). This ensures that content remains visible and color-accurate for participants seated at various positions around the meeting table.
Does the package include a power adapter?
The standard package includes a 12V/1.5A adapter, a user manual, and the display unit. If you use the PoE feature, the adapter is not required for operation, but it is included for flexibility in non-PoE network environments.
