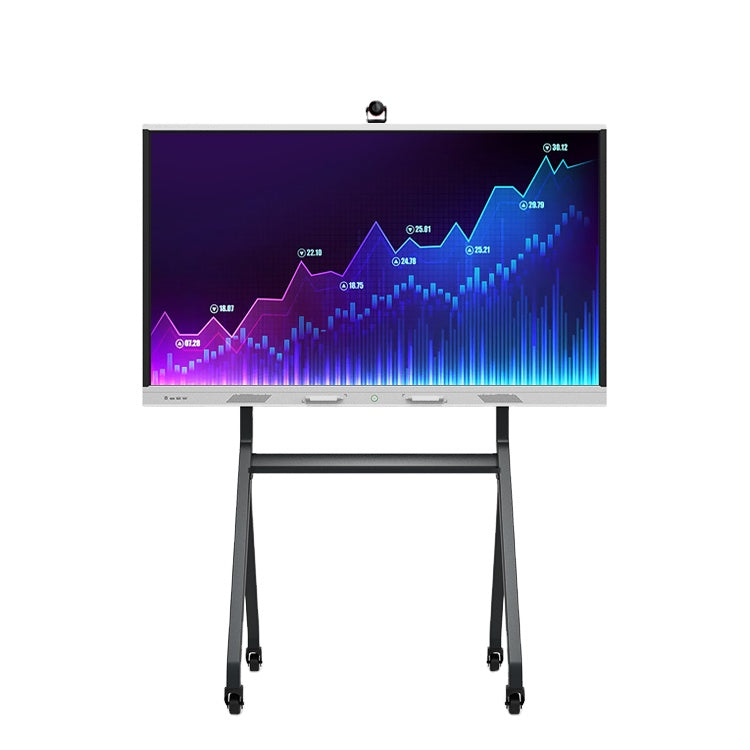

The Trend TD-100ID20U-Di5 is a 100-inch 4K UHD interactive flat panel designed for collaborative environments across the GCC and Africa. Featuring 20-point infrared touch, a built-in Intel i5 processor with dual OS support, and robust connectivity, this unit supports intensive daily use in educational and corporate settings.
This 100-inch display delivers 3840 x 2160 resolution on an S-IPS panel with 450 nits brightness and a 2,000:1 contrast ratio. The integrated dual operating system combines Android 6.0 on a quad-core Cortex-A53 with Windows 7/8/10 on an Intel Core i5 processor. It includes 4 GB RAM and 120 GB SSD for Windows, plus 1.5 GB RAM and 32 GB storage for Android, ensuring smooth operation for teaching and conference applications.
Connectivity is managed through three HDMI inputs, one VGA port, and dual RJ45 Ethernet ports, with two 5 W speakers for audio output. The unit measures 1960.6 x 1161.8 x 96.8 mm and weighs 67 kg, supporting wall, floor, or fixed stand mounting. It operates on 100–240 V AC input and is built with a 4 mm tempered glass front for durability in high-traffic areas across the region.
Key features
- Dual OS Computing - Runs Windows 7/8/10 via Intel Core i5 and Android 6.0 with quad-core Cortex-A53 for flexible software deployment.
- 4K UHD Panel - 100-inch S-IPS screen with 3840 x 2160 resolution, 450 nits brightness, and 178-degree viewing angles.
- 20-Point Touch - Infrared touch technology supports 20 simultaneous points with 2 mm accuracy over 90% of the screen area.
- Rich Connectivity - Includes three HDMI inputs, VGA, dual RJ45, AV in/out, and USB ports for versatile signal integration.
- Built-in Audio - Features two 5 W speakers for immediate audio output without external amplification.
Ideal for: Suitable for schools, universities, government offices, and corporate meeting rooms across the GCC and Africa requiring durable, high-specification interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TD-100ID20U-Di5
- Product type
- Interactive Flat Panel
- Key features
- 100-inch 4K, 20-point infrared touch, dual Windows and Android OS, 2 x 5 W speakers, 24-hour service, wall or floor mount, 4 mm tempered glass
- Application
- Teaching, meetings, government and corporate reception
- Duty cycle
- 24 hours per day
Display
- Colour
- Black
- Backlight
- WLED
- Brightness
- 450 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 100"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 2,000:1
- Panel technology
- S-IPS
- Response time
- 8 ms
Touch
- Touch accuracy
- 2 mm (over 90% of touch area)
- Touch points
- 20-point multi-touch
- Touch technology
- Infrared
System
- Processor
- Intel Core i5 (Windows); quad-core Cortex-A53 1.5 GHz (Android)
- Graphics
- Intel HD Graphics 3000
- Operating system
- Android 6
- RAM
- 4 GB (Windows); 1.5 GB (Android)
- Storage
- 120 GB
- Storage conditions
- -20 to 60 °C; 10% to 90% RH (non-condensing)
Connectivity
- Ethernet (RJ45)
- 2 x RJ45
- HDMI input
- 3
- VGA input
- 1 x DB15
- Wi-Fi
- Optional
- Ports
- HDMI in x 3, VGA x 1, USB 2.0 x 1, USB touch (Type B) x 1, AV in x 1, AV out x 1, RJ45 x 2, audio out
Camera & audio
- Speaker output
- 2 x 5 W
Physical & warranty
- Material
- 4 mm tempered glass front; plastic and sheet metal shell
- Mounting type
- On wall, movable or fixed floor stand
- In the box
- Remote control, base/bracket, WiFi module, power cord, manual, warranty card
- Operating humidity
- 20% to 80% RH (non-condensing)
- Operating temperature
- 0 to 50 °C
- Power consumption
- Standby 385 W
- Dimensions
- 1960.6 x 1161.8 x 96.8 mm
- Weight
- 67 kg (net)
- Warranty
- 1 year
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this model available for multi-site procurement in the GCC?
Yes. As an authorised reseller, Smart-Boards supports bulk and tender orders for multiple sites across the GCC and Africa. We manage logistics to ensure consistent delivery and can confirm lead times on your quotation.
Which countries can you deliver to?
We ship to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries through established logistics partners. Delivery times vary by country and order size, which is confirmed on the quotation.
Do you provide on-site installation?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup with remote guidance if needed.
What is the operating temperature range?
The unit operates between 0 to 50 °C and 20% to 80% RH (non-condensing). It supports a 24-hour duty cycle for continuous use in professional environments.
Does it include a wall mount?
Yes. The box includes a base/bracket kit. The panel supports wall, movable floor stand, or fixed floor stand mounting options for flexible deployment.
What is the warranty coverage?
The product comes with a 1-year manufacturer warranty. Smart-Boards provides after-sales support for all units sold through our site.
Can I request a demonstration before buying?
Yes. We offer live or virtual demonstrations before purchase to help you verify specifications and suitability for your specific requirements.
