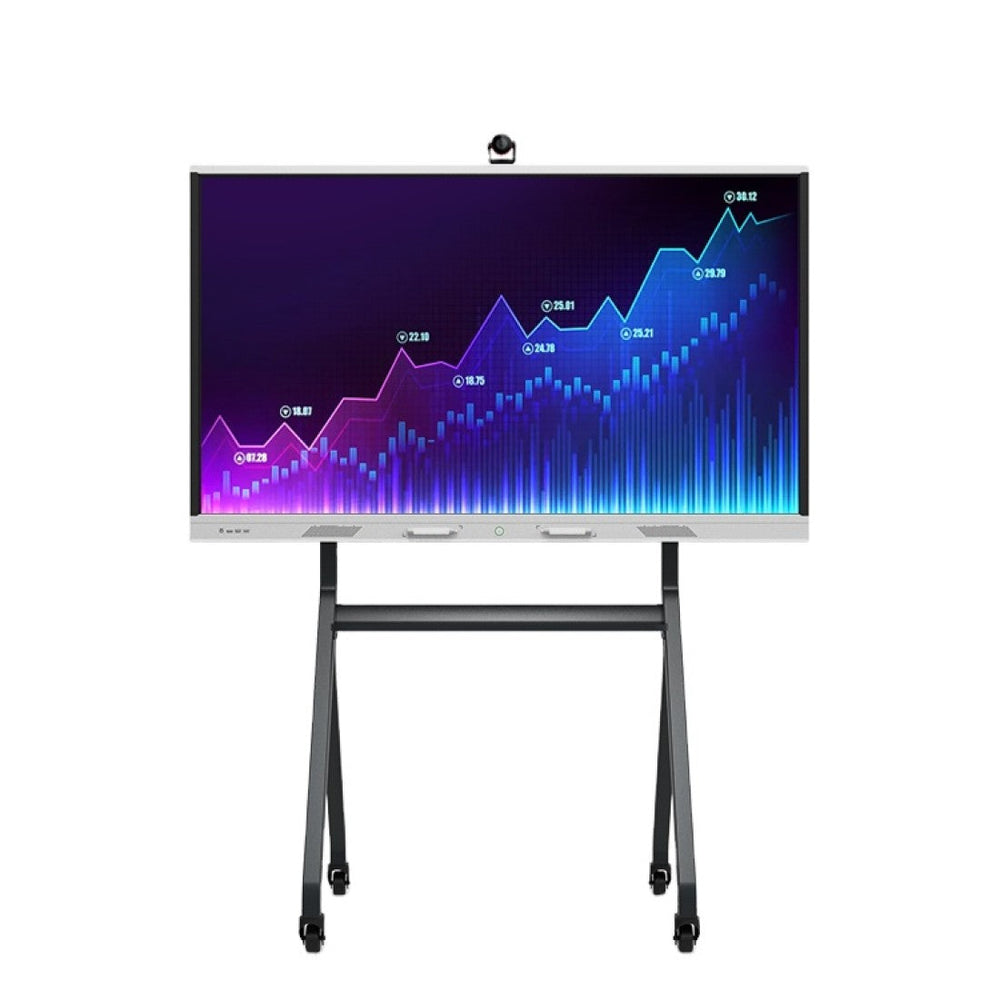

The Trend TD-100ID20U-A is a 100-inch interactive flat panel featuring 20-point infrared touch and Android 6.0. Smart-Boards supplies this 4K UHD display to educational and corporate clients across the GCC and Africa for collaborative environments.
This large-format display combines a 3840×2160 UHD screen with a 4mm tempered glass surface for durability. The Android 6.0 operating system runs on a Cortex A53 processor with 1.5 GB DDR3 memory, supporting immediate content interaction. A 450 cd/m² brightness level ensures visibility in well-lit conference rooms or classrooms across the region.
Connectivity is handled by three HDMI inputs, VGA, AV, and dual RJ45 Ethernet ports, alongside built-in 2×5W speakers. The unit weighs 67 kg and supports wall, floor-standing, or movable installation. Smart-Boards, an authorised reseller, provides this equipment with manufacturer warranty and after-sales support for multi-site deployments.
Key features
- High-Definition Display - The 100-inch S-IPS panel delivers 3840×2160 resolution at 60Hz with a 2000:1 contrast ratio for clear visuals.
- Multi-Touch Interaction - Infrared touch technology supports 20 simultaneous touch points with 2mm accuracy across over 90% of the screen area.
- Android Operating System - Built-in Android 6.0 provides direct access to apps, featuring 32GB storage and options for up to 8GB RAM.
- Robust Connectivity - Includes three HDMI inputs, one VGA, AV, USB multimedia, and dual RJ45 sockets for versatile device integration.
- Versatile Installation - The 67kg unit supports wall mounting, fixed floor stands, or movable brackets for flexible room setups.
Ideal for lecture halls, boardrooms, and training centers requiring large collaborative displays, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- SD-card × 1
- Key features
- 20-point infrared touch, 4 mm tempered glass, Android 6.0, 24/7 operation, Remote control, Wall or floor installation
Display
- Backlight
- WLED
- Brightness
- 450 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 100"
- Viewing angle
- 178° (H) / 178° (V)
- Contrast ratio
- 2,000:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch points
- 20 Points Multi Touch
- Touch response time
- 8 ms
- Touch technology
- Infrared
System
- Processor
- Cortex A53 × 4 1.5GHz (Android)
- Graphics
- T720MP2 (Android)
- Operating system
- Android 6
- RAM
- 1.5 GB DDR3
- Storage
- 32 GB
- Memory type
- DDR3
- Operating hours
- 24/7
Connectivity
- Ethernet (RJ45)
- RJ45 × 2
- HDMI input
- HDMI In × 3
- Serial port
- DB9 × 1
- Touch USB ports
- USB (touch screen) × 1
- USB ports
- USB 3.0 × 2, USB 2.0 × 1
- VGA input
- VGA × 1
- Wi-Fi
- Built-in Wi-Fi
Camera & audio
- Audio in
- AV In × 1
- Audio out
- AV Out × 1
- Speaker output
- 2 × 6Ω/5W
- Speaker type
- Built-in Speakers
Physical & warranty
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0℃~50℃
- Power consumption
- 385 W
- Dimensions
- 1960.6 × 1161.8 × 96.8 mm
- Weight
- 67 kg
- Warranty
- 1 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this model support multiple users writing simultaneously?
Yes. The infrared touch frame allows for 20 touch points, enabling multiple users to interact with the screen content at the same time.
Which countries can receive delivery?
Smart-Boards ships to GCC and African countries through established logistics partners. Delivery times depend on the country and order size, confirmed in the quotation.
Is on-site installation available outside the UAE?
No. On-site installation is within the UAE only. Other countries receive the unit ready for local setup, with remote guidance provided if needed.
What is the operating system?
The display runs on Android 6.0, allowing direct use of Android applications without additional computers. Optional memory upgrades are available.
What are the included accessories?
The package includes a remote control, base or bracket options, a WiFi module, power cord, user manual, warranty card, and certificate of conformity.
How is the display protected?
The screen features 4mm tempered glass that is level 7 earthquake resistant, ensuring durability in various environmental conditions across the region.
What warranty is provided?
The product comes with a 1-year manufacturer warranty. Smart-Boards offers additional after-sales support for clients in the GCC and Africa.
