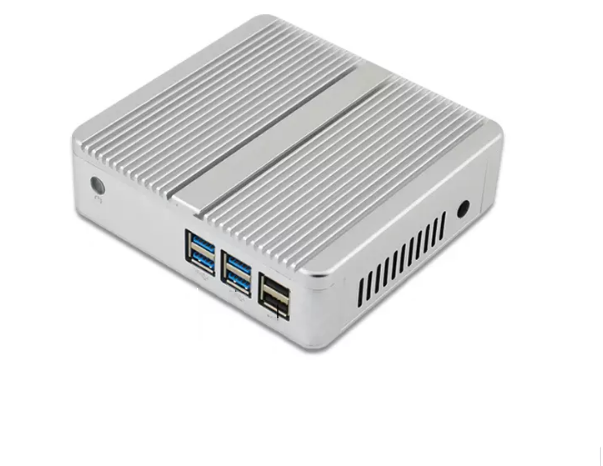

The Trend TC-24FA-i75G is a fanless aluminium digital signage media player designed for continuous 24/7 operational environments. It features a 5th Gen Intel Core i7 processor, dual Full HD graphics outputs, and passive cooling for silent, durable performance in commercial displays.
This media player utilizes an aluminium casing to provide robust durability while maintaining a compact form factor of 140 x 135 x 35 mm and weighing only 0.55 kg. The fanless passive cooling design eliminates moving parts, ensuring silent operation and extended lifespan for unattended deployments. With a power consumption of just 15 W, it offers energy-efficient reliability for businesses requiring consistent uptime without the noise or heat generation of traditional active cooling systems.
Connectivity options include one HDMI port, one VGA port, four USB 3.0 ports, two USB 2.0 ports, and an RJ45 gigabit Ethernet interface. It supports dual-band Wi-Fi (802.11n) and optional Bluetooth, allowing flexible network integration. The system supports Windows 10 Pro Trial with optional licensed versions or Linux, and features PXE and Wake-on-LAN boot capabilities for remote management. It is suitable for mounting via standard VESA patterns in various digital signage configurations across the GCC and Africa.
Key features
- Fanless Durability - Passive cooling design ensures silent, uninterrupted 24/7 operation without moving parts.
- Core i7 Performance - Powered by a 5th Gen Intel Core i7 processor for efficient content processing and rendering.
- Dual Full HD Output - Features HDMI and VGA ports to drive dual Full HD displays simultaneously at 1920 x 1080 resolution.
- Flexible Memory Options - Supports RAM configurations from 2 GB to 32 GB and storage from 64 GB mSATA to 2 TB SATA.
- VESA Mounting - Compact 140 x 135 x 35 mm aluminium chassis allows for discreet installation using standard VESA mounts.
Ideal for: Digital signage, corporate lobbies, and retail displays requiring silent, reliable hardware, suitable for multi-site rollouts across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TC-24FA-i75G
- Product type
- Digital Signage Media Player
- Key features
- Fanless passive cooling, 24/7 operation, Dual Full HD graphics, PXE and Wake-on-LAN boot, Dual-band Wi-Fi, VESA mounting
- Application
- 24/7 use
Display
- Resolution
- Full HD
System
- Processor
- 5th Gen Intel Core i7
- Graphics
- Dual Full HD graphics (HDMI and VGA)
- Operating system
- Windows 10
- RAM
- 2 GB to 32 GB
- Storage
- 64 GB
Connectivity
- Bluetooth
- Optional
- Ethernet (RJ45)
- 10/100/1000 Mbps auto-adaptive
- Wi-Fi
- 802.11n dual band, 2.4 / 5.0 GHz
- Ports
- HDMI × 1, VGA × 1, RJ45 × 1, USB 3.0 × 4, USB 2.0 × 2
Camera & audio
- Audio
- Integrated audio
Physical & warranty
- Material
- Aluminium
- Power consumption
- 15 W
- Dimensions
- 140 x 135 x 35 mm
- Weight
- 0.55 kg (net), 1.4 kg (gross)
- VESA mount
- Available
- Warranty
- 2 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this media player operate without a fan?
Yes. The Trend TC-24FA-i75G uses a fanless design with passive cooling. This ensures silent operation and increased durability by eliminating mechanical components, making it ideal for noise-sensitive environments like hotels or quiet offices.
Can it drive two displays at the same time?
Yes. The device includes dual Full HD graphics outputs via HDMI and VGA ports. It can simultaneously output 1920 x 1080 resolution to two separate screens, supporting dual-monitor digital signage setups.
Which countries in the GCC and Africa receive this product?
Smart-Boards supplies this media player to the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries. Delivery is managed through established logistics partners to ensure cost-effective shipping to your specific location.
Is installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup. Remote guidance is available to assist your team with the initial configuration and deployment process.
What operating systems are supported?
The unit ships with a Windows 10 Pro Trial. You can purchase a licensed Windows version or opt for Linux. The hardware supports PXE and Wake-on-LAN boot, facilitating remote management and OS deployment across multiple units.
What are the connectivity options for network and peripherals?
It features an RJ45 gigabit Ethernet port, dual-band Wi-Fi (802.11n), and optional Bluetooth. Peripheral connectivity includes four USB 3.0 ports and two USB 2.0 ports for attaching storage, controllers, or other devices.
How long is the warranty period?
The manufacturer provides a 2-year warranty for this media player. Smart-Boards, as an authorised reseller, also offers after-sales support to assist with any technical queries or service requirements during and after the warranty period.
