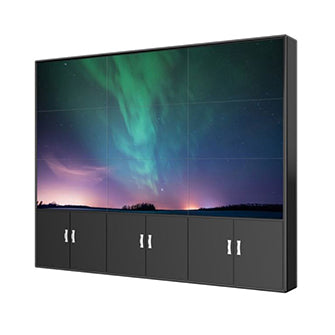

The Trend TD-46VDF3.5B is a 46-inch Full HD video wall display featuring a 3.5mm bezel and 1920x1080 resolution. It supports mobile control and RS232 remote management. Smart-Boards supplies this unit for commercial projects across the GCC and Africa.
This 46-inch LED display delivers 1920x1080 resolution at 500cd/m² brightness with a 4000:1 contrast ratio. The 3.5mm bezel width ensures minimal visual interruption in multi-panel setups. It accepts HDMI, VGA, DVI, and USB inputs for versatile signal integration.
Designed for 24/7 operation, the unit includes a silent industrial fan with automatic temperature switching. It supports wall mounting, embedding, and floor standing installations. The display features 16.7 million colors and 89-degree viewing angles for consistent image quality.
Key features
- Narrow Bezel Design - The 3.5mm bezel width minimizes visual gaps between panels for a cohesive large-scale display surface.
- Multiple Input Options - Connects via HDMI, VGA, DVI, and USB for flexible signal source integration and media playback.
- 24/7 Operational Stability - Engineered for continuous use with silent cooling and robust performance in demanding commercial environments.
- Remote Control Support - Integrated RS232 serial port and mobile/computer control allow for centralized management of the display array.
- Versatile Mounting - Supports wall mounting, embedded installation, floor standing, front maintenance, and cabinet configurations.
Ideal for control rooms, lobbies, and retail spaces requiring high-density visual data, suitable for buyers across the GCC and Africa seeking reliable multi-site deployment options.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TD-46VDF3.5B
- Key features
- Mobile and computer control, USB media playback, Front maintenance access, Multi-input (HDMI, VGA, DVI, USB)
Display
- Backlight
- LED
- Brightness
- 500 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 46"
- Viewing angle
- 178° (H) / 178° (V)
- Contrast ratio
- 4,000:1
- Response time
- 8 ms
Connectivity
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 1
- Serial port
- RS-232 × 1
- USB ports
- USB × 1
- VGA input
- VGA × 1
Physical & warranty
- Mounting type
- Wall mounted, embedded, floor standing, cabinet, front maintenance
- Operating temperature
- 0°C to 50°C
- Power consumption
- < 240 W
- Standby power
- 3 W
- Warranty
- 2 years
- Bezel size
- 3.5 mm (panel-to-panel gap)
- Input voltage
- 220 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the resolution of this video wall panel?
The Trend TD-46VDF3.5B has a Full HD resolution of 1920x1080 pixels. This provides clear, detailed imagery suitable for text-heavy presentations and video content in professional settings.
Can this display be used for 24-hour operation?
Yes, the unit is designed for 24/7 continuous operation. It features a silent industrial fan with automatic temperature switching to manage heat efficiently without disrupting the surrounding environment.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations. Delivery costs are minimized through established logistics partners, with times confirmed on your quotation.
Is on-site installation available in Africa?
On-site installation is provided within the UAE only. For other countries, we deliver the units ready for local setup. Remote guidance is available to assist your team with the configuration process.
What inputs are supported for signal connection?
The display supports HDMI, VGA, DVI, and USB inputs. The USB port allows for upgradeable video picture media playback, while other ports support standard signal input for versatile integration.
Does the system support remote management?
Yes, it includes an RS232 serial port for remote control. You can also use mobile or computer control to manage the display, making it suitable for integration into larger central control systems.
What is the warranty coverage for this model?
The Trend TD-46VDF3.5B comes with a 2-year manufacturer warranty. Smart-Boards provides additional after-sales support to ensure long-term reliability and assistance for your project needs.
