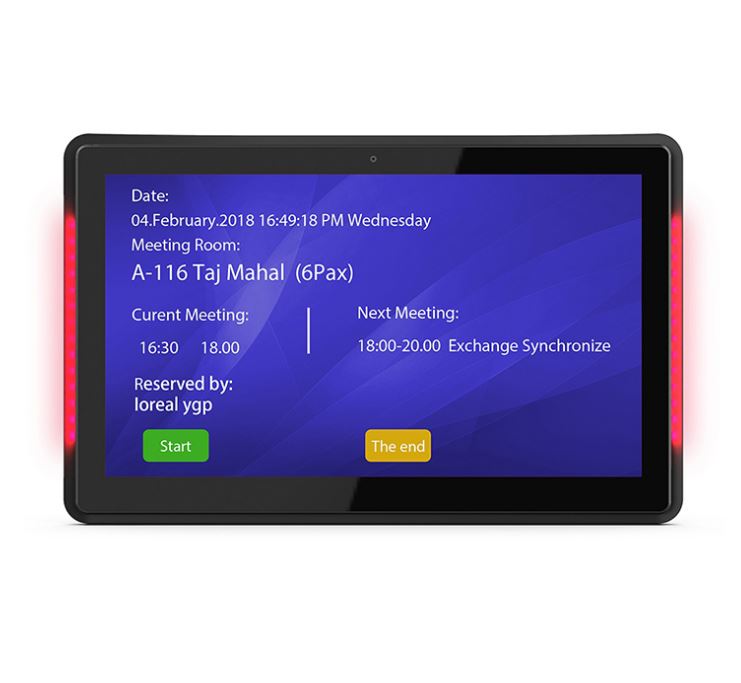

The Trend TD-133CMBSL is a 13.3-inch interactive display designed for meeting room booking and control. Featuring 1920x1080 resolution, 10-point capacitive touch, and PoE support, it simplifies AV integration. Smart-Boards supplies this unit across the GCC and Africa.
This 13.3-inch LCD IPS panel delivers Full HD 1920x1080 resolution with a 250 cd/m² brightness level, ensuring clear visibility in well-lit conference rooms. The 16:10 aspect ratio provides ample space for scheduling interfaces and video feeds. Equipped with an RK3288 quad-core processor, 2GB RAM, and 8GB storage, the device runs Android 5.1 or 8.1 for reliable application performance.
Connectivity is streamlined via an RJ45 port supporting IEEE 802.3at/af Power over Ethernet, eliminating the need for separate power cables. The unit includes built-in 802.11b/g/n Wi-Fi and Bluetooth 4.0 for wireless peripherals. An integrated 2.0-megapixel front camera and dual 1.5W speakers facilitate video conferencing, while the LED light bar enhances readability in various lighting conditions.
Key features
- Touch & Display - The 13.3-inch IPS panel offers 1920x1080 FHD resolution and 10-point capacitive touch with an 85-degree viewing angle for multi-user interaction.
- Power & Connectivity - PoE (IEEE 802.3at/af) via RJ45 provides both data and power, supplemented by 10M/1000M Ethernet and built-in Wi-Fi for flexible installation.
- Processing & OS - Powered by an RK3288 quad-core processor with 2GB RAM, the display runs Android 5.1 or 8.1, supporting SD cards and USB Host interfaces.
- AV Integration - Includes a 2.0MP front camera, dual 1.5W speakers, and a 3.5mm headphone jack with microphone input for direct meeting room audio and video use.
- Mounting & Design - The compact unit features a 75x75mm VESA mount pattern and an integrated LED light bar, with a normally black display mode for energy efficiency.
Ideal for: This display is ideal for smart board kiosks, meeting room booking stations, and AV control panels, suiting buyers across the GCC and Africa who require reliable, PoE-powered touch interfaces.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- SD card slot
- Model
- TD-133CMBSL
- Product type
- Compact Digital Signage Display
- Key features
- 10 Point Capacitive Touch, PoE, LED Light Bar, Front camera
Display
- Brightness
- 250 cd/m²
- Resolution
- Full HD
- Screen size
- 13.3"
- Viewing angle
- 170° (H) / 170° (V)
- Contrast ratio
- 800:1
- Panel technology
- IPS
System
- Processor
- Rockchip RK3288
- Operating system
- Android 5
- RAM
- 2 GB
- Storage
- 8 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- Bluetooth 4.0
- Ethernet (RJ45)
- RJ45 × 1
- USB ports
- USB Host × 1, Micro USB OTG × 1, USB for serial × 1
- Wi-Fi
- 802.11b/g/n
Camera & audio
- Audio in
- Mic in
- Audio out
- 3.5 mm headphone out
- Speaker output
- 2 × 1.5 W
Physical & warranty
- In the box
- Adapter, User manual
- Operating temperature
- 0°C to 40°C
- VESA mount
- 75 x 75 mm
- Warranty
- 1 year
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the screen resolution of the Trend TD-133CMBSL?
The display has a 1920x1080 Full HD resolution on a 13.3-inch IPS LCD panel with a 250 cd/m² brightness level and 800:1 contrast ratio.
Does this model support Power over Ethernet?
Yes, it supports IEEE 802.3at/af PoE via the RJ45 port, allowing data transfer and power delivery through a single cable for simpler installation.
Which Android versions are available?
The unit is available with either Android 5.1 or Android 8.1 operating systems, offering flexibility for different application requirements and compatibility needs.
What is the touch technology used?
It uses 10-point capacitive touch technology, allowing multiple users to interact simultaneously with a responsive and accurate touch experience.
Which countries can receive delivery?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners at competitive rates.
Is installation included outside the UAE?
On-site installation is available within the UAE only. For other countries, delivery is ready for local setup with remote guidance if needed.
What accessories are included in the box?
The package includes a 12V/1.5A power adapter (for non-PoE use), a user manual, and requires a separate mount. The unit also features a card slot and USB interfaces.
