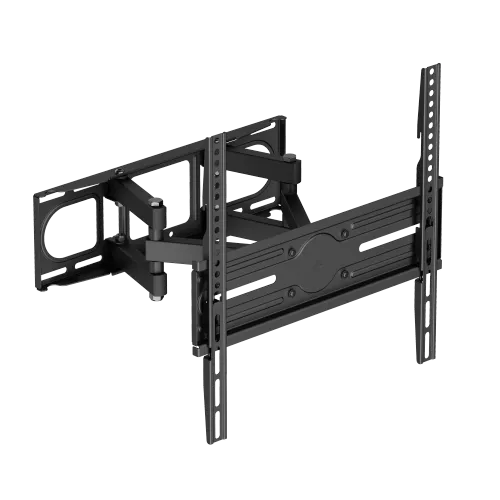

VSYS VS02SE-446 Full-Motion Wall Mount for 32"–75" Displays, 40 kg. An articulating arm on a dual-stud plate, for the heavier end of full motion.
Everything a moving arm does puts leverage on the wall, and the bigger the panel the more of it there is. That is the reasoning behind the VSYS VS02SE-446: it carries 32" to 75" displays up to 40 kg, and it spreads that load across a wall plate designed to span two studs at 406 mm rather than hanging off one. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
The arm folds to 67 mm and extends to 355 mm, tilting plus 3 to minus 15 degrees and swivelling plus 60 to minus 60 degrees either side. It also has something most full-motion brackets lack: an independent screen-levelling adjustment of plus 3 to minus 3 degrees, so a panel that reads slightly off-horizontal can be trued up at the bracket instead of by re-drilling. A hook-on spirit level and integrated cable routing are supplied, and the steel and reinforced-plastic assembly is strength tested to three times its rating.
Key features
- Dual-stud wall plate spanning 406 mm centres, spreading the leverage of an extended arm across two fixings instead of one
- 40 kg working load, strength tested to three times that figure, covering commercial panels up to 75"
- Independent screen-levelling adjustment of plus 3 to minus 3 degrees - correct a crooked panel at the bracket, not by re-drilling the wall
- Swivel of plus 60 to minus 60 degrees either side, enough to redirect a screen across an open-plan floor
- Tilt of plus 3 to minus 15 degrees, a deeper downward angle than most articulating arms in this class
- Extension from 67 mm folded to 355 mm out, so it disappears against the wall when the screen is not in use
- VESA from 100x100 mm to 400x400 mm, matching the majority of 32" to 75" commercial and consumer displays
- Integrated cable management keeps power and HDMI dressed through the full sweep of the arm
- Hook-on spirit level supplied, so the plate is levelled before the display and arm go on
- Steel and reinforced-plastic construction built for repeated daily adjustment rather than a one-time fixing
| Brand | VSYS |
|---|---|
| Cable management | Integrated routing along the arm, follows the full range of motion |
| Display compatibility | 32 inch to 75 inch flat and curved panels |
| Extension range | 67 mm folded to 355 mm extended |
| In the box | Full-motion arm, dual-stud wall plate, mounting hardware bag, hook-on spirit level, installation guide |
| Material | Steel and reinforced plastic |
| Max load | 40 kg (88 lbs) |
| Mounting type | Wall mount, full motion articulating arm, dual stud plate |
| Screen levelling | Plus 3 to minus 3 degrees, independent adjustment |
|---|---|
| Swivel range | Plus 60 to minus 60 degrees |
| Testing | Strength tested to 3x the rated load |
| Tilt range | Plus 3 to minus 15 degrees |
| Vesa pattern | 100x100 mm to 400x400 mm |
| Wall fixing | Dual stud plate at 406 mm centres, or solid concrete and block |
| Model | VS02SE-446 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS02SE-446?
It is a full-motion wall mount for 32" to 75" displays weighing up to 40 kg, built on a dual-stud wall plate. The arm extends from 67 mm to 355 mm, swivels plus 60 to minus 60 degrees, tilts plus 3 to minus 15 degrees and has a separate levelling adjustment.
2. Is it compatible with my display?
Yes - if the screen is 32" to 75", weighs 40 kg or less and has a VESA pattern between 100x100 mm and 400x400 mm, it will fit. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Does it have to go on two studs?
The plate is designed to span two studs at 406 mm centres, which is the preferred fixing because an extended arm multiplies the load on the wall. It will also install securely into solid concrete or block. On plasterboard, find the structure - do not rely on cavity anchors at this weight.
4. What is the screen-levelling adjustment for?
Even a perfectly levelled wall plate can leave a large panel looking a degree off, usually because of tolerances in the display's own VESA holes. The plus 3 to minus 3 degree adjustment lets you correct that at the bracket in a few seconds, with the screen still mounted.
5. How does this compare with the smaller VS02E-443?
The VS02E-443 is the lighter option: 23" to 65", 30 kg, single-stud fixing and a wider 90 degree swivel. The VS02SE-446 takes bigger and heavier panels up to 75" and 40 kg on a dual-stud plate, tilts further down at 15 degrees, and adds the levelling adjustment. Swivel is 60 degrees rather than 90.
6. Do you ship the VSYS VS02SE-446 across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VS02SE-446?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request. A hook-on spirit level is in the box so a local fitter can set the plate accurately.
9. How are the cables handled when the arm is extended?
Integrated cable management routes the power and HDMI leads along the arm so they follow the movement rather than being stretched. Dress them with a service loop at the wall end and the screen can be swung out and folded back daily without strain on the connectors.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
