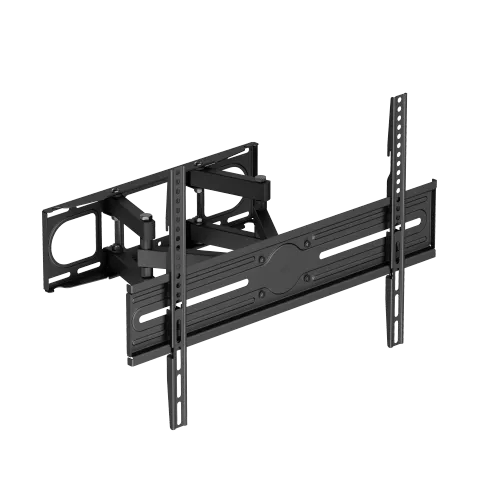

VSYS VS02SE-466 Full-Motion Wall Mount for 37"–80" Displays, 40 kg. An articulating arm sized for the larger end of the flat-panel range.
A screen bolted flat to the wall only works if everyone sits in front of it. In a training room with an L-shaped table, a café with seating down one side, or an open-plan office where one display serves two clusters of desks, the panel has to turn. The VSYS VS02SE-466 carries a 37" to 80" screen on a folding arm rated to 40 kg, and it accepts VESA patterns all the way out to 600x400 mm - the reach that lets it take genuinely large panels rather than only mid-size televisions. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
Folded, the arm sits 67 mm from the wall, close enough to read as a fixed mount. Opened, it reaches 355 mm out, then tilts from plus 3 to minus 15 degrees and swivels 60 degrees to either side. A separate plus 3 to minus 3 degree levelling adjustment squares the picture after the wall plate is already bolted down, so a stud line that is slightly out of true does not leave the screen crooked. Two bracket positions on the arm set the final mounting height, and hook-and-loop ties hold the cabling to the arm through the whole sweep.
Key features
- VESA support out to 600x400 mm - the specification that separates this model from smaller full-motion arms and lets it take 70" and 80" panels
- 37" to 80" coverage in a single part number, so a mixed-size rollout does not need two different mounts
- 40 kg load rating on a steel and reinforced-plastic structure, strength tested
- Arm folds to 67 mm off the wall and extends to 355 mm - flat-mount appearance when parked, full-motion reach when needed
- Swivel of 60 degrees left and right turns the screen towards side seating instead of moving the furniture
- Tilt from plus 3 to minus 15 degrees clears reflections from windows and ceiling lighting
- Independent plus 3 to minus 3 degree screen levelling corrects the picture after the plate is fixed
- Two-tier bracket positions give a second chance at final mounting height on site
- Hook-and-loop cable management keeps leads with the arm through the full range of movement
- Supplied with wall plate, hardware bag, hook-on bubble level and printed installation guide
| Brand | VSYS |
|---|---|
| Cable management | Hook and loop ties along the arm |
| Display compatibility | 37 inch to 80 inch flat or curved panels |
| Height adjustment | Two-tier bracket positions for final mounting height |
| In the box | Full-motion arm, wall plate, mounting hardware bag, hook-on bubble level, printed installation guide |
| Material | Steel and reinforced plastic |
| Max load | 40 kg (88 lbs) |
| Mounting type | Wall mount, full-motion articulating arm |
| Screen levelling | Plus 3 to minus 3 degrees |
|---|---|
| Swivel range | Plus 60 to minus 60 degrees |
| Testing | Strength tested |
| Tilt range | Plus 3 to minus 15 degrees |
| Vesa pattern | 100x100 mm to 600x400 mm |
| Wall distance | 67 mm folded, 355 mm fully extended |
| Model | VS02SE-466 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS02SE-466?
It is a full-motion wall mount for a single display between 37" and 80" weighing up to 40 kg. The arm folds flat to 67 mm, extends to 355 mm, tilts, swivels and levels, and it accepts VESA hole patterns from 100x100 mm up to 600x400 mm.
2. Is it compatible with my display?
Yes - if the panel is 37" to 80", weighs 40 kg or less and has a VESA pattern between 100x100 mm and 600x400 mm, it will fit, including curved screens. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Why does the 600x400 mm VESA figure matter?
Because it is the limit that decides whether a large panel can physically bolt on. Many full-motion arms in this price class stop at 400x400 mm, which rules out most 70" and 80" screens. The VS02SE-466 goes to 600x400 mm, so the top of its size range is usable rather than theoretical.
4. How far does the arm move?
From 67 mm folded to 355 mm extended. Within that travel it tilts plus 3 to minus 15 degrees and swivels 60 degrees left or right, with a separate plus 3 to minus 3 degree levelling adjustment on the screen bracket.
5. What if the wall is not perfectly straight?
That is what the plus 3 to minus 3 degree levelling adjustment is for. You fix the wall plate to the stud positions available, hang the screen, then rotate the bracket a few degrees until the picture reads level - no need to unbolt and start again.
6. Do you ship the VSYS VS02SE-466 across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VS02SE-466?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request. The wall plate must land on solid masonry or timber studs rated for the combined weight of mount and screen.
9. Can it hold an interactive panel rather than a television?
It can, provided the panel stays inside the 40 kg limit and the 600x400 mm VESA pattern. Be aware that most interactive panels above 65" exceed 40 kg, so for touch-driven classroom use we would usually quote a heavier-rated mount or a mobile stand instead - ask us and we will check the weight of your model.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
