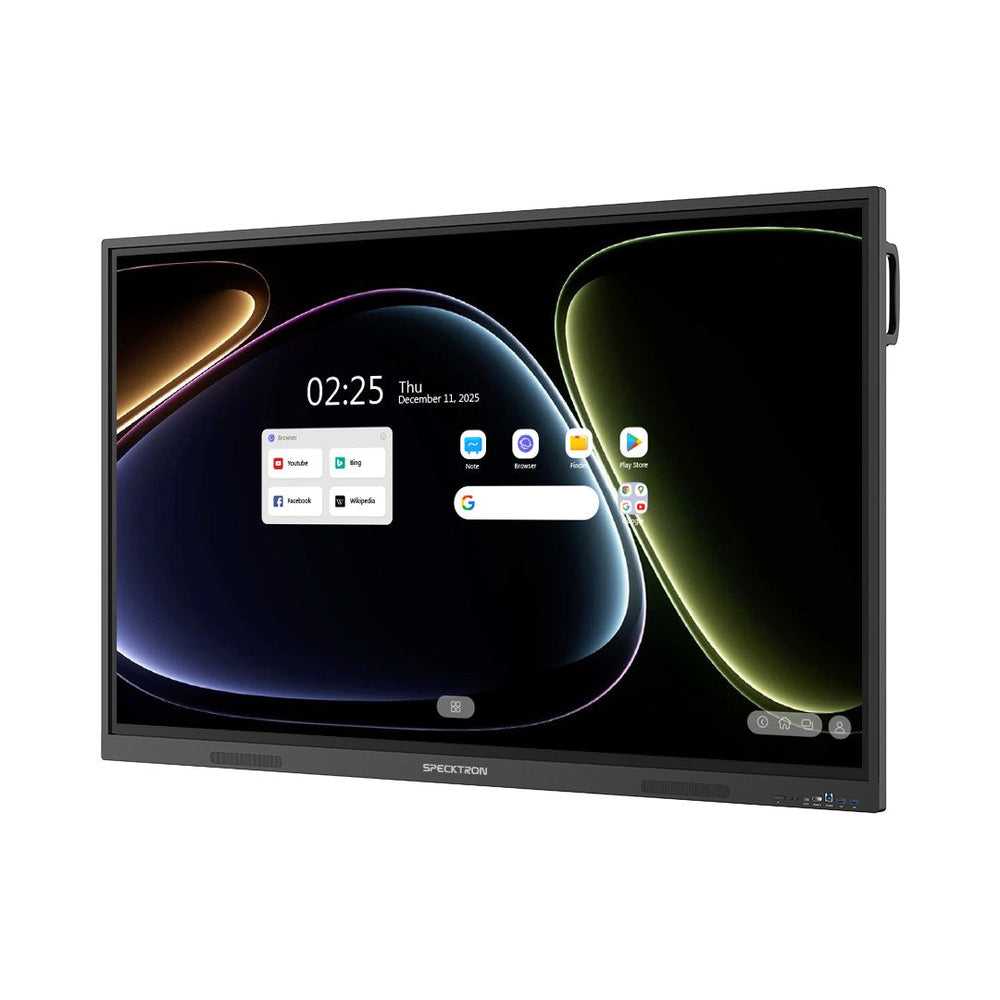

The Specktron UDX-S2 ProLite (DSUDX86S2KFN) is an 86-inch interactive flat panel designed for professional and educational environments. It features 4K UHD resolution, a 6 TOPS NPU for AI performance, and 50-point IR touch. Smart-Boards supplies this unit across the GCC and Africa, offering logistics support and installation services in the UAE.
This 86-inch display delivers 3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles. The Android 16 operating system is powered by an octa-core processor and 6 TOPS NPU, supporting optional Windows connectivity. Surface protection uses 9H toughened anti-fingerprint glass to withstand frequent use in high-traffic areas.
Connectivity options include three HDMI inputs, one HDMI output, and USB-C data transfer. The unit supports BYOM and wireless screen sharing with touchback via an optional dongle. Audio output is handled by two 20 W speakers, while LAN, RS232, and SPDIF ports enable integration into larger AV infrastructures. OTA updates ensure the system remains current.
Key features
- High Performance - Powered by an octa-core processor and 6 TOPS NPU for enhanced AI capabilities and smooth operation.
- 50-Point Touch - Uses infrared technology to support 50 simultaneous touch points for precise, multi-user interaction.
- 4K UHD Display - Provides 3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles for clear visibility.
- Android 16 OS - Runs on Android 16 with OTA updates, offering optional Windows support for flexible computing needs.
- Robust Connectivity - Includes 3 HDMI inputs, 1 HDMI output, USB-C, LAN, RS232, and SPDIF for comprehensive system integration.
Ideal for classrooms, boardrooms, and conference halls requiring reliable multi-touch interaction, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DSUDX86S2KFN
- Product type
- Interactive Flat Panel
- Key features
- Android 16, 4K UHD, 400 nits, 50-point IR touch, 6 TOPS NPU, 2 × 20 W speakers, OTA updates, optional Windows
Display
- Brightness
- 400 cd/m²
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- 9H toughened anti-fingerprint glass
- Viewing angle
- 178° / 178°
Touch
- Touch points
- 50-point multi-touch
- Touch technology
- Infrared
System
- Processor
- Octa-core with 6 TOPS NPU
- Operating system
- Android 16
Connectivity
- Ethernet (RJ45)
- 1 × LAN (In/Out)
- HDMI input
- 3
- HDMI output
- 1
- Serial port
- RS232
- Touch USB ports
- USB-B × 2
- USB-C
- 1 × USB-C (data transfer)
- USB ports
- USB 3.0 × 3, USB 2.0 × 1
- Ports
- HDMI In × 3, HDMI Out × 1, USB 3.0 × 3, USB 2.0 × 1, USB-C × 1 (data transfer), USB-B Touch × 2, LAN × 1 (In/Out), Audio In/Out, SPDIF, RS232
- Connectivity options
- BYOM support, wireless screen sharing with touchback, wireless dongle
Camera & audio
- Speaker output
- 2 × 20 W
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Specktron UDX-S2 ProLite suitable for large classrooms?
Yes. The 86-inch 4K UHD screen with 178-degree viewing angles ensures visibility for large groups. The 50-point IR touch allows multiple users to annotate simultaneously.
Does it support Windows?
Yes. The unit runs Android 16 natively but supports optional Windows connectivity. This allows users to switch operating systems based on specific software requirements.
Can I deliver this to multiple countries?
Yes. Smart-Boards ships to GCC and African countries through established logistics partners at low cost. Delivery times depend on the country and order size.
Is installation included in other countries?
No. On-site installation is available within the UAE only. Other countries receive the unit ready for local setup, with remote guidance provided if needed.
What warranty is provided?
The product comes with the manufacturer warranty plus Smart-Boards after-sales support. Warranty length is confirmed on the quotation and depends on the specific terms.
Does it support BYOM?
Yes. The panel supports Bring Your Own Meeting (BYOM) and offers wireless screen sharing with touchback via an optional dongle for flexible connectivity.
What ports are available?
It includes 3 HDMI inputs, 1 HDMI output, 3 USB 3.0, 1 USB 2.0, 1 USB-C, 2 USB-B touch ports, LAN, Audio In/Out, SPDIF, and RS232.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
