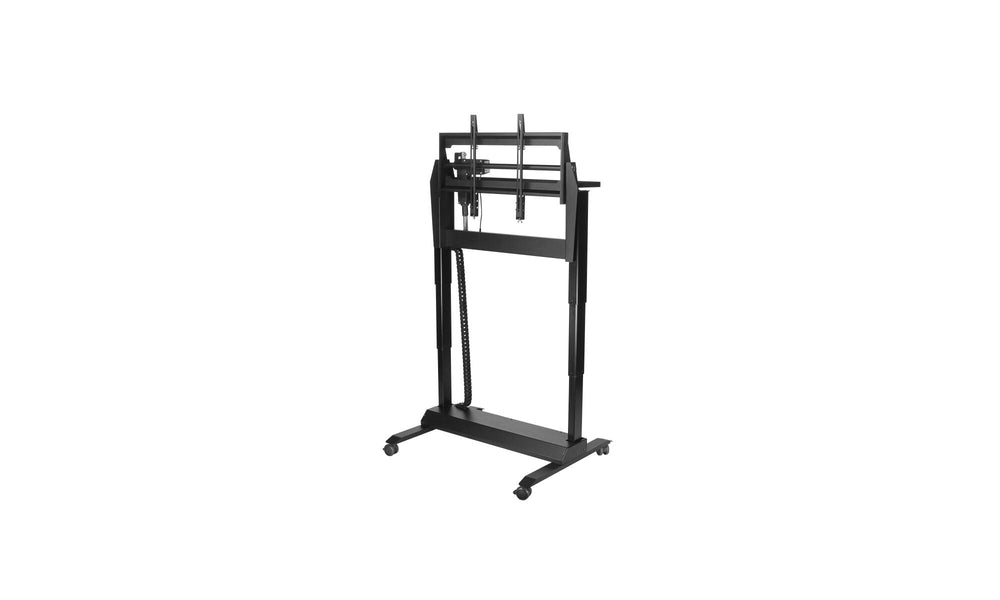

The Sony PT-LIFTHL-4075 is an electric display lift designed for touch screens from 40 to 75 inches. It features 650 mm of vertical travel and supports loads up to 137 kg. Smart-Boards supplies this Dutch-engineered unit across the GCC and African markets via established logistics partners.
This professional lift solution integrates seamlessly into modern conference rooms and educational spaces by concealing large displays when not in use. With an electric height adjustment mechanism, it allows users to raise or lower touch panels to optimal viewing or interaction heights. The unit supports VESA mounts from 100 to 600 mm, ensuring compatibility with a wide range of commercial displays. Its powder-coated black finish maintains a discreet presence in professional environments.
Engineered in the Netherlands, the PT-LIFTHL-4075 prioritizes safety and durability for multi-site deployments. Anti-collision technology protects both the display and the mechanism during operation, while two casters with brakes facilitate precise positioning during installation. The system runs on mains power via an exchangeable standard cable. Smart-Boards provides manufacturer warranty coverage and after-sales support for installations within the UAE and delivery-ready units for other regions.
Key features
- Electric Height Adjustment - Provides 650 mm of vertical travel with a speed of 38 mm/s to position displays at wheelchair-accessible or standing heights.
- High Load Capacity - Supports a maximum load of 137 kg, ensuring stability for large commercial touch displays up to 80 inches.
- VESA Compatibility - Accommodates VESA patterns from 100 to 600 mm, with an optional bracket available for 800 mm mounts.
- Safety and Mobility - Includes anti-collision technology for safe operation and two casters with brakes for controlled movement during setup.
- Dutch Engineering - Constructed in the Netherlands with a durable powder-coated black finish, designed for reliable long-term commercial use.
Ideal for schools, universities, and corporate offices in the GCC and Africa requiring concealed, wheelchair-accessible display installations.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Max load
- 137 kg (302 lbs)
- Tilt range
- None
- Model
- PT-LIFTHL-4075
- Product type
- Electric Display Lift
- Key features
- Electric height adjustment, 650 mm travel, 137 kg maximum load, anti-collision technology, two casters with brakes, PC holder, wheelchair accessible, Dutch design
- Adjustability
- Electric height, 650 mm travel
- Compatibility
- Touch displays, VESA 100 to 600 mm (800 mm with optional bracket)
- Finish
- Powder coat
- Speed
- 38 mm/s (1.5 inch/s)
Display
- Colour
- Black (other colours optional)
- Screen size support
- 40 to 80 inch
Physical & warranty
- Weight
- 38 kg
- Shipping dimensions
- 920 x 975 x 395 mm
- VESA mount
- 100 to 600 mm (800 mm with optional bracket)
- Warranty
- 1 year
- Shipping weight
- 65 kg
- Country of origin
- The Netherlands
- Power source
- Mains, exchangeable standard cable
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum screen size this lift supports?
The Sony PT-LIFTHL-4075 supports touch displays ranging from 40 to 80 inches. It is compatible with VESA mounts from 100 to 600 mm, or up to 800 mm with an optional bracket.
Can this lift be delivered to countries outside the UAE?
Yes. Smart-Boards ships to all GCC countries and selected African nations through established logistics partners. Delivery costs are kept low, and timing is confirmed on the quotation based on the specific country and order size.
Is on-site installation included for international orders?
No. On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup. Remote guidance is provided if needed to assist local technical teams.
Does the lift include a warranty?
Yes, the product comes with a 1-year manufacturer warranty. Smart-Boards also provides after-sales support for customers in the GCC and Africa to ensure long-term reliability.
What is the weight of the lift mechanism itself?
The unit weighs 38 kg. The shipping weight is 65 kg, with dimensions of 920 x 975 x 395 mm, which is relevant for freight planning in multi-site rollouts.
Is the height adjustment motorized or manual?
The PT-LIFTHL-4075 is an electric display lift. It uses a motorized mechanism to raise and lower displays, allowing for smooth and safe height changes without manual effort.
How do I get pricing for this product?
Pricing is by quotation only. Contact Smart-Boards for quote-only pricing, which includes options for education, government, and bulk purchases. We can also arrange live or virtual demonstrations before you purchase.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
