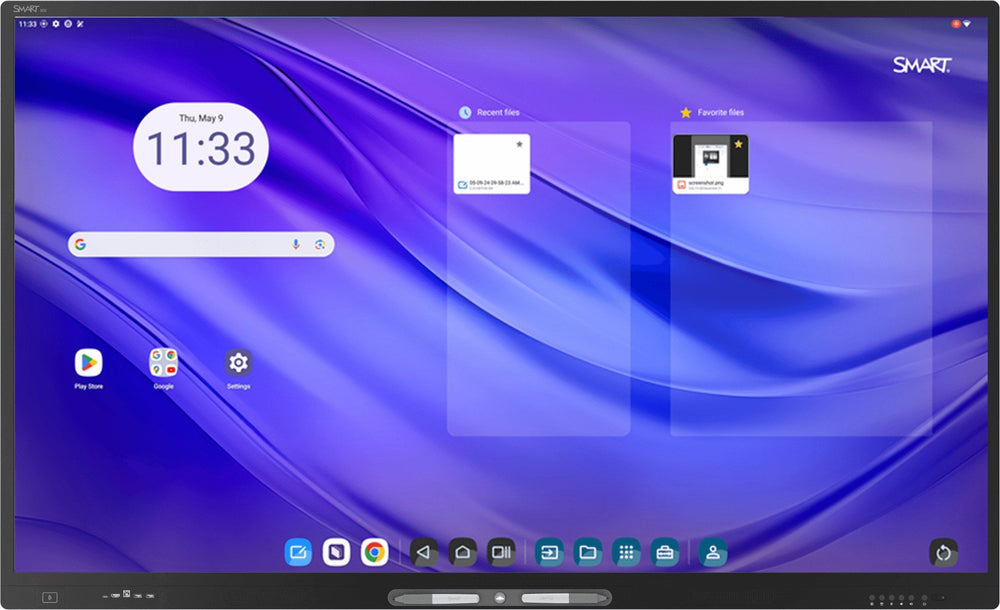

The SMART M586-V5 Pro is an 86-inch interactive flat panel designed for large collaborative spaces. Featuring 4K UHD resolution and 50-point infrared touch, it supports hybrid learning. Smart-Boards supplies this unit across the GCC and Africa.
This 86-inch interactive display delivers 4K UHD clarity with 400 nits brightness for high-visibility presentations. It runs Android 13 with an octa-core processor and 8 GB RAM, ensuring smooth operation for digital signage or classroom use. The HyPr Touch Advanced IR technology allows up to 50 simultaneous touch points with 1 mm accuracy, supporting multi-user collaboration without lag.
Connectivity is robust, featuring three USB-C ports, four USB 3.2 Gen 1 Type-A ports, and dual RJ45 LAN jacks for network stability. Built-in Wi-Fi 6E and Bluetooth 5.2 enable wireless sharing, while the NFC reader supports quick access. The unit includes a rear OPS slot for SMART PCM modules, 2x 20 W integrated speakers, and comes with a room license plus 10 personal licenses for immediate deployment.
Key features
- High-Density Touch - Supports up to 50 simultaneous touch points with 1 mm accuracy and 5 ms response time for fluid multi-user interaction.
- 4K UHD Display - Delivers 3840 x 2160 resolution with 400 nits brightness and 178° viewing angles for clear visibility in large rooms.
- Advanced Connectivity - Includes three USB-C ports, dual RJ45 LAN, Wi-Fi 6E, and a rear OPS slot for flexible device integration and networking.
- Integrated Audio - Features dual 20 W integrated speakers and S/PDIF optical output for high-quality sound without external amplification.
- Secure Media Slot - Provides a microSD slot with a physical security cover to protect stored content and prevent unauthorized access.
Ideal for university lecture halls, government training centres, and corporate boardrooms across the GCC and Africa requiring large-scale collaborative displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- M586-V5-P
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD (3840 x 2160), 400 nits, HyPr Touch Advanced IR, up to 50 touch points, Android 13, Wi-Fi 6E, Bluetooth 5.2, NFC reader
- License
- Room license and 10 personal licenses
- Protocols
- ISO 14443A/B, ISO 15693, NFC Tag 1-4
- Security features
- Security cover on microSD slot
Display
- Colour
- Black
- Backlight
- LED
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Response time
- 8 ms
Touch
- Touch accuracy
- 1 mm
- Touch points
- Up to 50-point multi-touch
- Touch response time
- 5 ms (typical)
- Touch technology
- Infrared
System
- Processor
- Octa-core
- OPS slot
- Rear, SMART PCM modules
- Operating system
- Android 13
- RAM
- 8 GB
- Storage
- 64 GB
- Storage conditions
- -20 to 60 °C
Connectivity
- Bluetooth
- Bluetooth 5.2
- Wi-Fi
- Wi-Fi 6E (IEEE 802.11ax)
- Ports
- USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB Type-C × 3, RJ45 LAN × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm stereo × 1, USB 2.0 Type-A × 1, microSD slot with security cover × 1
Camera & audio
- Audio
- 2 x 20 W integrated speakers
Physical & warranty
- In the box
- 2 pens, remote control, 5 m USB 2.0 A-to-B cable
- Operating humidity
- 5% to 80% RH, non-condensing
- Operating temperature
- 5 to 35 °C
- Power consumption
- 149 W (typical)
- Standby power
- 0.2 W
- Dimensions
- 1962 x 1199 x 89 mm
- Weight
- 68 kg
- Shipping dimensions
- 2165 x 1445 x 160 mm
- VESA mount
- 800 x 600 mm
- Shipping weight
- 94 kg
- Country of origin
- Mexico
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- TAA, CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, HDMI, HDCP
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries does Smart-Boards deliver this model to?
We supply and ship this interactive display to the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries through established logistics partners. Delivery times depend on the specific country and order size, which is confirmed on your quotation.
Is on-site installation included for GCC and African orders?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup. Remote guidance is provided if needed to ensure correct mounting and configuration by local technicians.
What are the dimensions and weight of the 86-inch panel?
The panel measures 1962 x 1199 x 89 mm and weighs 68 kg. The shipping box dimensions are 2165 x 1445 x 160 mm with a shipping weight of 94 kg. It supports an 800 x 600 mm VESA mount.
Does this model include a TAA license?
Yes, the SMART M586-V5 Pro is TAA compliant. It includes a room license and 10 personal licenses for iQ software, making it suitable for government and tender requirements in supported regions.
What is the power consumption of this display?
The typical power consumption is 149 W. It operates on 100–240 V AC input and has a standby power consumption of 0.2 W. The operating temperature range is 5 to 35 °C.
Can I get a live demonstration before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations before purchase. This allows you to verify the 4K display quality, 50-point touch responsiveness, and Android 13 interface for your specific regional needs.
What is included in the box for this model?
The package includes the 86-inch interactive display, two smart pens, a remote control, and a 5 m USB 2.0 A-to-B cable. It does not include wall mounts or OPS modules, which are purchased separately if required.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
