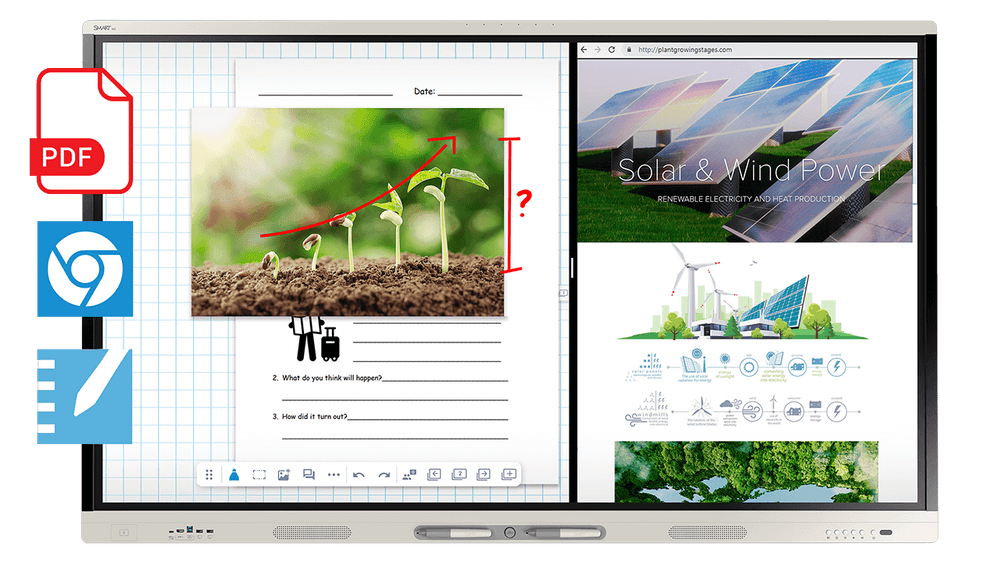

The SMART Board MX055-V5 interactive display with iQ delivers a 55-inch 4K UHD canvas for collaborative work. It features HyPr Touch technology and an embedded iQ Android 15 operating system, preloaded with SMART Notebook and SMART Control. This panel is supplied by Smart-Boards for educational and corporate deployments across the GCC and Africa.
Designed for modern classrooms and meeting rooms, this 55-inch interactive flat panel integrates advanced connectivity and intuitive touch control. The display supports up to 50 simultaneous touch points on Windows and Mac devices, enabling large group collaboration without lag. A front-mounted USB-C port allows for single-cable video, data, and charging from compatible laptops, simplifying daily setup. The frame-mounted magnetic tool holders keep the two included pens accessible, while the white frame blends discreetly into professional or academic environments.
Inside the panel, an octa-core CPU and 8 GB of DDR4 memory power the embedded iQ Android 15 OS, which supports automatic updates to Android 17. Users benefit from a personalized home screen, split-screen multitasking, and Picture-in-Picture capabilities. The system includes SMART Notebook and SMART Control software, facilitating content creation and device management. For audio, the 55-inch model provides two integrated 15 W speakers and a linear six-microphone array for clear voice pickup in hybrid meetings.
Key features
- HyPr Touch Technology - Advanced IR sensors enable up to 50 simultaneous touch points with 1 mm accuracy and a response time of ≤ 5 ms for fluid interaction.
- Embedded iQ Android 15 - The panel runs on Android 15 with an octa-core CPU and 8 GB RAM, supporting automatic over-the-air updates to Android 17.
- Comprehensive Connectivity - Features include a front USB-C port for video and data, HDMI, VGA, RS-232, RJ45 LAN, and multiple USB 3.2 Type-A ports.
- Built-in Audio System - The 55-inch model includes two 15 W integrated speakers and a linear six-microphone array with acoustic echo cancellation.
- Included Software Suite - Comes with iQ embedded Android OS, SMART Notebook for content creation, and SMART Control for device management.
Ideal for schools, universities, and corporate offices across the GCC and Africa requiring reliable interactive displays for teaching and video conferencing.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- Front: –; Back: 1
- Antenna
- 2
- Controls
- Power, Home, Volume, Input select, Screen shade, Freeze frame
Display
- Colour
- White
- Backlight
- LED
- Brightness
- 55 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 55"
- Surface protection
- 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
Touch
- Touch accuracy
- 1 mm
- Touch points
- 50 – Windows; 50 – Mac; 32 – Android; 16 – Chrome OS
- Touch response time
- ≤ 5 ms
- Touch technology
- HyPr Touch with Advanced IR
System
- Ambient light sensor
- Yes
- Processor
- Octa-core
- OPS slot
- SMART PCM modules
- Operating system
- Android 15
- RAM
- 8 GB DDR4
- Sensors
- Ambient light sensor
- Storage
- 64 GB
- Storage conditions
- -4–140°F ( -20–60°C )
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- Front: –; Back: 1
- NFC card reader
- Yes
- Serial port
- Front: –; Back: 1
- USB-C
- Front: 1; Back: –
- USB ports
- Front: –; Back: 1
- VGA input
- Front: –; Back: 1
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Camera & audio
- Audio out
- Front: –; Back: 1
- Speaker output
- 15W speakers on 55”
- Speaker type
- Built-in Speakers
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
- Microphone
- Integrated mic array
Physical & warranty
- In the box
- Pens (×2)
- Operating humidity
- 5–80% relative humidity, non‑condensing
- Operating temperature
- 41–95°F ( 5–35°C )
- Power consumption
- 55": 72 W; 65": 90 W; 86": 149 W
- Standby power
- 0.2 W
- Dimensions
- Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
- Weight
- 71 lb. ( 32 kg )
- Shipping dimensions
- 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
- VESA mount
- M8, 400 × 400 mm
- Warranty
- Smart Assure Warranty
- Shipping weight
- 103 lb. ( 47 kg )
- Input voltage
- 100V to 240V AC, 50 Hz to 60 Hz
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What operating system does the MX055-V5 run?
It runs the embedded iQ Android 15 operating system. The system supports automatic over-the-air updates to Android 17, ensuring long-term software relevance without external computers.
Can this display be delivered to African countries?
Yes. Smart-Boards ships to GCC and African countries through established logistics partners. We work to minimize costs for international orders while ensuring safe transport to your location.
Is installation included for orders outside the UAE?
No. On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed by our technical team.
Does the MX055-V5 support simultaneous touch from multiple users?
Yes. The HyPr Touch technology supports up to 50 simultaneous touch points on Windows and Mac, and 32 on Android, allowing multiple users to interact with content at once.
What connectivity options are available on the front panel?
The front panel includes one USB-C port (4K @ 60Hz, DisplayPort 1.2, USB 2.0), two USB 3.2 Gen 1 Type-A ports, and one USB 3.2 Gen 1 Type-B port.
What is the display resolution and brightness of the 55-inch model?
The 55-inch model offers a maximum resolution of 4K UHD (3840 × 2160) and a brightness of 300 cd/m², providing clear visibility in well-lit rooms.
How does Smart-Boards handle pricing for this product?
Pricing is available by quotation only. We offer education, government, bulk, and tender options. Contact our team for a tailored quote based on your specific requirements and location.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
