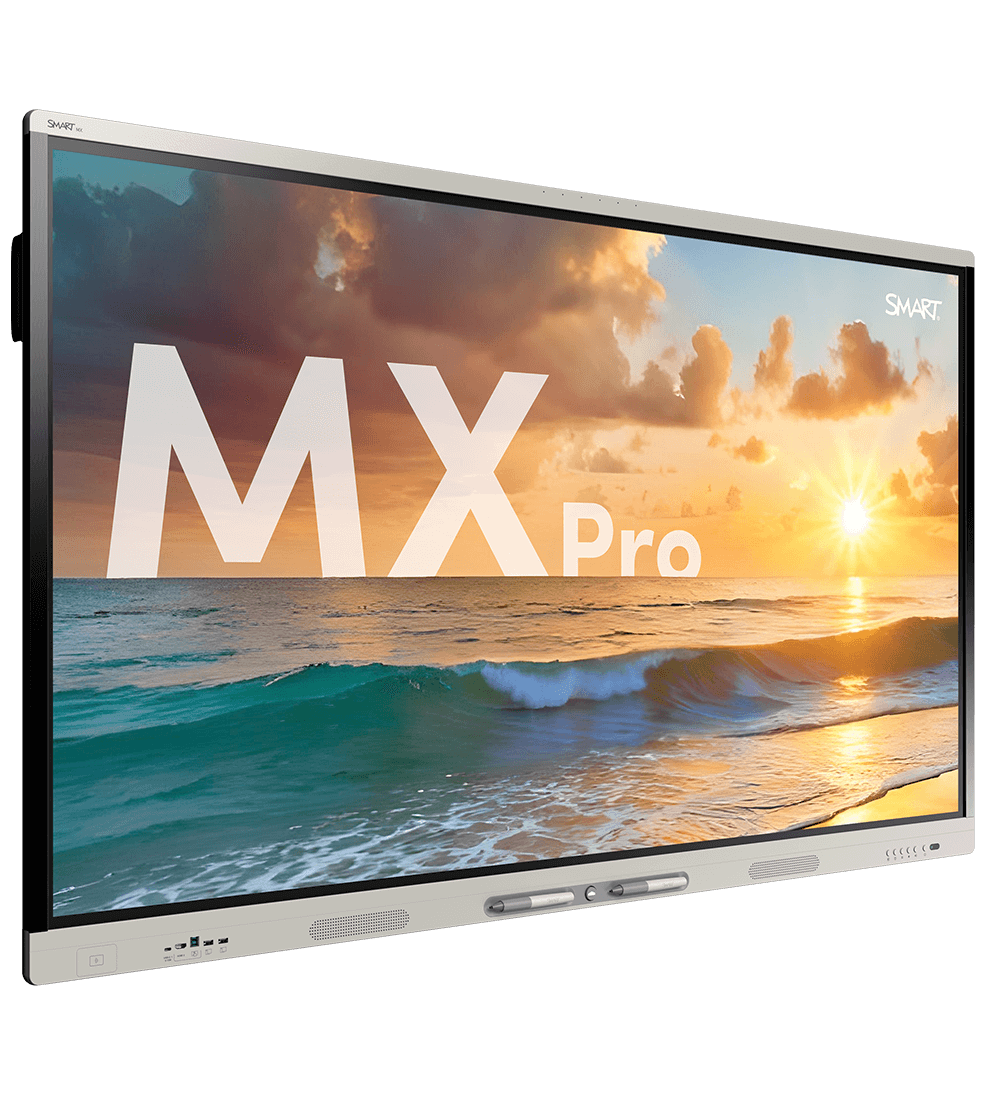

The SMART Board MX286-V5 Pro is an 86-inch interactive flat panel designed for large classrooms and boardrooms across the GCC and Africa. It features 4K UHD resolution, HyPr Touch technology with 50 simultaneous touch points, and built-in Android 15. Smart-Boards supplies this model with manufacturer warranty and after-sales support.
This interactive display combines an 86-inch LED screen with advanced HyPr Touch capabilities, supporting up to 50 simultaneous touch points with 1 mm accuracy. The device runs on Android 15, allowing for automatic updates to Android 17, and includes a Personalized home screen, split screen, and picture-in-picture functionality. The panel is equipped with a linear six-microphone array and integrated speakers for clear audio, along with wired and wireless connectivity options including Wi-Fi 6e and Bluetooth 5.2.
Built for reliability in diverse environments, the MX286-V5 Pro operates within a temperature range of 5–35°C and supports 100V to 240V AC power. It features a robust set of ports, including USB Type-C, HDMI, VGA, and RS-232, alongside an OPS slot for PC expansion. The display includes a room license and ten personal licenses for iQ software, ensuring immediate usability. Smart-Boards provides quote-based pricing and logistics for multi-site deployments across the Middle East and Africa.
Key features
- HyPr Touch Technology - Supports up to 50 simultaneous touch points with 1 mm accuracy and ≤ 5 ms response time using Advanced IR sensors.
- Android 15 Operating System - Runs on Android 15 with an automatic update path to Android 17, featuring 8 GB DDR4 memory and 64 GB storage.
- 4K UHD Display - Delivers 3840 × 2160 resolution on an 86-inch screen with 400 cd/m² brightness and a 178° viewing angle.
- Audio and Microphone Array - Includes two integrated 20 W speakers and an onboard linear six-microphone array with acoustic echo cancellation.
- Connectivity Options - Features USB Type-C, HDMI, VGA, RS-232, RJ45, and an OPS slot for flexible integration with existing AV systems.
Ideal for large lecture halls, executive boardrooms, and collaborative spaces in the GCC and Africa requiring high-capacity touch interaction and integrated Android functionality.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power cable × 1, USB 2.0 A to B cable × 1, USB 3.2 Gen 1 Type-C cable × 1
- SD card slot
- microSD × 1
- Antenna
- 2
- Controls
- Power, Home, Volume, Input select, Screen shade, Freeze frame
Display
- Colour
- White
- Backlight
- LED
- Brightness
- 400 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178°
- Aspect ratio
- 16:9
Touch
- Palm rejection
- Yes
- Pen and touch differentiation
- Yes
- Touch accuracy
- ±1 mm
- Touch points
- Up to 50 touch points (OS dependent)
- Touch response time
- ≤ 5 ms
- Touch technology
- HyPr Touch with Advanced IR
System
- Ambient light sensor
- Yes
- Processor
- Octa-core
- OPS slot
- SMART PCM modules
- Operating system
- Android 15
- RAM
- 8 GB DDR4
- Sensors
- Proximity, Ambient light, Infrared
- Storage
- 64 GB
- Storage conditions
- -4–140°F ( -20–60°C )
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- DP 1.2 × 2
- Ethernet (RJ45)
- Front: –; Back: 1
- HDMI input
- HDMI In (HDMI 2.1) × 4
- HDMI output
- HDMI Out × 1
- NFC card reader
- Yes
- Serial port
- Front: –; Back: 1
- USB-C
- Front: 1; Back: –
- USB ports
- Front: –; Back: 1
- VGA input
- Front: –; Back: 1
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Front: –; Back: 1
- Speaker output
- 2 × 20 W
- Speaker type
- Built-in Speakers
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
Physical & warranty
- In the box
- Pens × 2, Remote control × 1, AAA batteries × 2, Wi-Fi/Bluetooth antennas × 2, Installation instructions × 1, Important information document × 1
- Operating humidity
- 5–80% relative humidity, non‑condensing
- Operating temperature
- 41–95°F ( 5–35°C )
- Power consumption
- 149 W
- Standby power
- 0.2 W
- Dimensions
- 2165 × 1445 × 160 mm
- Weight
- 68 kg
- Shipping dimensions
- 2165 × 1445 × 160 mm
- Shipping weight
- 103 lb. ( 47 kg )
- Input voltage
- 100V to 240V AC, 50 Hz to 60 Hz
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the SMART Board MX286-V5 Pro available for delivery to African countries?
Yes, Smart-Boards ships to GCC countries and various African nations through established logistics partners. Delivery times depend on the specific country and order size, which is confirmed in the quotation. The site operates from Dubai, UAE, and offers competitive shipping costs for international orders.
Does Smart-Boards provide on-site installation for this model?
On-site installation is available only within the UAE. For deliveries to other countries, the unit is shipped ready for local setup. Remote guidance is provided to assist local teams with the installation process, ensuring the display is correctly mounted and configured for use.
What is the touch technology used in this interactive display?
The MX286-V5 Pro uses HyPr Touch with Advanced IR sensors. It supports up to 50 simultaneous touch points, tool differentiation, and object awareness. The touch accuracy is 1 mm, with a typical response time of less than 5 ms for precise interaction.
Does this model include software licenses?
Yes, the product includes a room license and ten personal licenses for SMART iQ. These licenses allow users to access personalized settings, file libraries, and app integration on the device. The software runs on the built-in Android 15 operating system.
Can I request a demonstration before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations before purchase. These sessions allow you to experience the HyPr Touch capabilities, Android interface, and connectivity options firsthand. Contact the team to schedule a demonstration tailored to your specific requirements.
What accessories are included with the display?
The standard package includes two pens, two magnetic frame-mounted tool holders, a remote control, and a 5 m USB 2.0 A to B cable. It also supports external tri-band Wi-Fi and Bluetooth antennas for wireless connectivity.
What is the warranty coverage for this product?
The product comes with the manufacturer's warranty plus Smart-Boards after-sales support. The team can confirm specific warranty terms and availability for your region during the quotation process. Support covers technical assistance and maintenance for the interactive flat panel.
