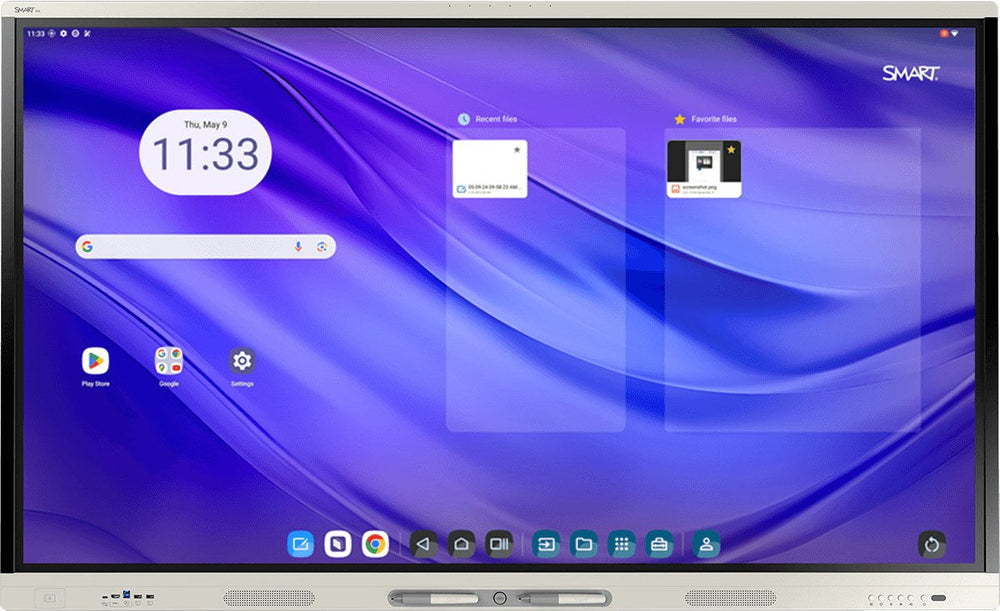

The SMART Board MX086-V5 Pro is an 86-inch 4K UHD interactive flat panel designed for modern collaboration. Featuring 50-point HyPr Touch and Android 15, it supports dynamic teaching and business meetings. Smart-Boards supplies this display to schools, ministries, and enterprises in the GCC and Africa.
This 86-inch interactive display delivers crisp 3840 x 2160 resolution with 400 nits brightness for clear visibility in well-lit GCC classrooms or conference rooms. Powered by an octa-core processor and 8 GB RAM on Android 15, the MX086-V5 Pro handles complex interactive applications without lag. The system includes automatic updates to Android 17, ensuring long-term software stability and security for education and government sectors.
Connectivity is robust with two Gigabit Ethernet ports, Wi-Fi 6E, and multiple USB-C and USB 3.2 interfaces for versatile device integration. A six-microphone array with echo cancellation and dual 20 W speakers support clear audio for video conferencing and hybrid learning. Weighing 68 kg, the white unit mounts via VESA 800 x 600 mm, allowing flexible installation for multi-site rollouts across Africa and the Middle East.
Key features
- Precision Touch - HyPr Touch technology enables 50-point multi-touch input with 1 mm accuracy and 5 ms response time for fluid writing and navigation.
- Android 15 OS - Built-in Android 15 provides a stable platform with automatic updates to Android 17, managed via SMART OPS for IT administrators.
- Advanced Audio - An integrated linear six-microphone array with echo cancellation captures voice clearly, paired with two 20 W speakers for audio output.
- Connectivity Ports - Includes three USB-C, four USB 3.2 Type-A, four USB 3.2 Type-B, and two RJ45 ports for comprehensive device and network integration.
- Included Accessories - The box contains two SMART Pens, a remote control, a 5 m USB A-to-B cable, and two external antennas for Wi-Fi connectivity.
Ideal for: Suitable for interactive teaching, corporate boardrooms, and government briefing rooms, this display suits buyers across the GCC and Africa seeking reliable, large-format collaboration tools.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- MX086-V5-PW
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD, 50-point touch, Android 15, automatic updates to Android 17, six-microphone array, 2 x 20 W speakers, SMART OPS support, Wi-Fi 6E
- License
- Room licence and 10 personal licences
Display
- Colour
- White
- Backlight
- LED
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
Touch
- Touch accuracy
- 1 mm
- Touch points
- 50-point multi-touch
- Touch response time
- 5 ms
- Touch technology
- HyPr Touch with Advanced IR
System
- Processor
- Octa-core CPU
- Operating system
- Android 15
- RAM
- 8 GB
- Storage
- 64 GB
- Storage conditions
- -20 to 60 °C
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- RJ45 1000BASE-T (x2)
- Wi-Fi
- Wi-Fi 6E (802.11ax)
- Ports
- USB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1
Camera & audio
- Speaker output
- 2 x 20 W
- Microphone
- Integrated linear six-microphone array with echo cancellation
Physical & warranty
- In the box
- 2 pens, remote control, 5 m USB 2.0 A to B cable, 2 external antennas
- Operating humidity
- 5% to 80% RH, non-condensing
- Operating temperature
- 5 to 35 °C
- Power consumption
- 149 W (typical)
- Standby power
- 0.2 W
- Dimensions
- 1962 x 1199 x 89 mm (W x H x D)
- Weight
- 68 kg
- VESA mount
- 800 x 600 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, UKCA, ENERGY STAR, HDMI, HDCP, EPEAT
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the SMART Board MX086-V5 Pro available for delivery to African countries?
Yes, Smart-Boards ships to GCC and African countries through established logistics partners, ensuring delivery to nations such as Kenya, South Africa, and Ethiopia.
Can you install this display outside the UAE?
On-site installation is available within the UAE only. For other countries, we deliver the unit ready for local setup, providing remote guidance if needed.
What touch technology does this model use?
It uses HyPr Touch with Advanced IR, supporting 50 simultaneous touch points with 1 mm accuracy and a 5 ms response time for fluid interaction.
Does the device support Wi-Fi 6E?
Yes, the MX086-V5 Pro includes built-in Wi-Fi 6E (802.11ax) and Bluetooth 5.2 for high-speed wireless connectivity and peripheral pairing.
What software licenses are included?
The package includes a Room licence and 10 personal licences for SMART software, facilitating immediate deployment for collaborative work.
Is pricing listed online?
No, pricing is by quotation only. We offer education, government, bulk, and tender options to suit your specific organizational requirements.
What is the operating system?
The display runs on Android 15 with automatic updates to Android 17, ensuring the system remains current and secure over its lifespan.
