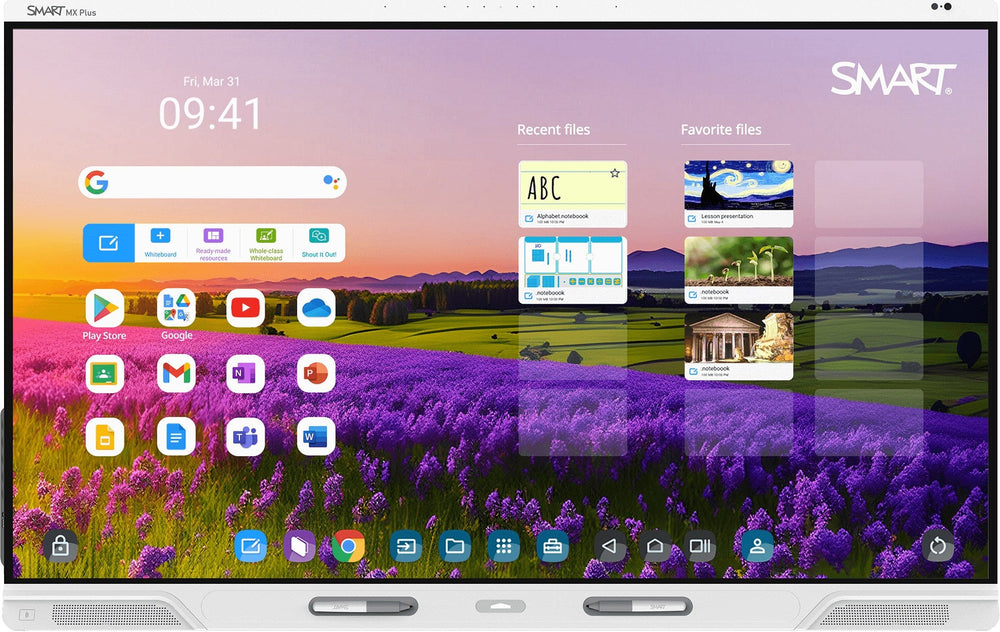

The SMART Board MX086-V5 Plus is an 86-inch 4K UHD interactive flat panel designed for collaborative teaching and business environments. It features embedded iQ with Android 15, 50-point infrared touch, and robust connectivity including USB-C and Wi-Fi 6E.
This interactive display combines high-brightness visuals with integrated iQ software to streamline classroom or meeting room workflows. The 86-inch 4K screen delivers clear content for large groups, while the eight-microphone array and soundbar speakers ensure audio clarity for hybrid sessions. Built-in NFC reader functionality supports quick device pairing, reducing setup time for presenters and students alike.
Designed for durability in diverse climates, the unit operates within wide temperature and humidity ranges suitable for GCC and African regions. The white chassis blends into modern institutional decor, and the 800 x 600 mm VESA mount allows flexible wall installation. With 8 GB RAM and 64 GB storage, the embedded Android system handles multitasking efficiently, supporting up to 576 GB expansion via microSD.
Key features
- 4K UHD Display - 86-inch screen with 3840 x 2160 resolution and 490 nits brightness for clear visibility in well-lit rooms.
- iQ Embedded System - Runs on Android 15 with an octa-core processor, 8 GB RAM, and 64 GB internal storage for stable performance.
- 50-Point Touch - Infrared touch technology supports up to 50 simultaneous touch points with 1 mm accuracy and 4 ms response time.
- Audio & Microphone - Integrated 2x20W soundbar with a 15W subwoofer and an eight-microphone array with echo cancellation.
- Connectivity Options - Includes Wi-Fi 6E, Bluetooth 5.2, four USB-C ports (one with 15W PD), and dual RJ45 Ethernet ports.
- Installation Support - Compatible with 800 x 600 mm VESA mounts; ships with two pens, remote, and mounting hardware for local setup.
Ideal for lecture halls, corporate boardrooms, and training centres in the GCC and Africa requiring reliable, high-capacity interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- MX286P-V5
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD (3840 x 2160), 490 nits, up to 50 touch points (OS dependent), iQ embedded Android 15, NFC reader, eight-microphone array, soundbar speakers, 15 W USB-C power delivery
- Application
- Education and classroom teaching
Display
- Colour
- White
- Backlight
- LED
- Brightness
- 490 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Response time
- 8 ms
Touch
- Touch accuracy
- 1 mm
- Touch points
- 50-point multi-touch (OS dependent)
- Touch response time
- 4 ms
- Touch technology
- Infrared
System
- Processor
- Octa-core
- OPS slot
- 1 (back), SMART OPS PC modules
- Operating system
- Android 15
- RAM
- 8 GB
- Storage
- 64 GB
- Storage conditions
- -20 to 60 °C
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- RJ45 × 2 (1000BASE-T)
- Wi-Fi
- Wi-Fi 6E (802.11ax)
- Ports
- USB-C × 4 (one with 15 W power delivery), USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm audio out, microSD × 1
- Connectivity options
- NFC reader/writer (ISO 14443A/B, ISO 15693, NFC Tag 1-4)
Camera & audio
- Speaker output
- Soundbar: 2 × 20 W + 15 W subwoofer
- Microphone
- Integrated linear eight-microphone array, visual mute indicator, echo cancellation
Physical & warranty
- In the box
- 2 pens, remote control, 5 m USB 2.0 A-to-B cable, 2 external antennas
- Operating humidity
- 5% to 80% RH, non-condensing
- Operating temperature
- 5 to 35 °C
- Power consumption
- 122 W (typical)
- Standby power
- Under 0.5 W
- Dimensions
- 1993 x 1217 x 121 mm
- Weight
- 70 kg
- Shipping dimensions
- 2140 x 1454 x 195 mm
- VESA mount
- 800 x 600 mm
- Shipping weight
- 86 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, EPEAT
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries does Smart-Boards deliver to?
Smart-Boards delivers to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations. Delivery times and logistics costs are confirmed via quotation based on the specific destination and order size.
Is on-site installation available outside the UAE?
On-site installation is available only within the UAE. For other countries, the unit ships ready for local setup. Smart-Boards provides remote guidance and documentation to assist local teams with the installation process effectively.
What operating system does this model run?
The MX086-V5 Plus runs embedded iQ software based on Android 15, with updates available to Android 17. It features an octa-core processor and 8 GB of RAM for smooth multitasking and app performance.
Does it support wireless screen sharing?
Yes, the unit includes Wi-Fi 6E and Bluetooth 5.2 for wireless connectivity. The NFC reader/writer also allows for quick device pairing, facilitating easy screen sharing from compatible laptops and tablets without additional adapters.
What is the maximum touch point count?
The display supports up to 50 simultaneous touch points using its infrared touch technology. The actual number of active points may depend on the operating system and connected software, with a touch accuracy of 1 mm.
Can I use a PC module with this display?
Yes, the MX086-V5 Plus includes a rear OPS slot compatible with SMART OPS PC modules. This allows you to add a Windows or Linux computer directly into the display for a standalone interactive solution without external hardware.
What certifications does this product hold?
The SMART Board MX086-V5 Plus holds CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, and EPEAT certifications, ensuring compliance with international safety and environmental standards for global deployment.
