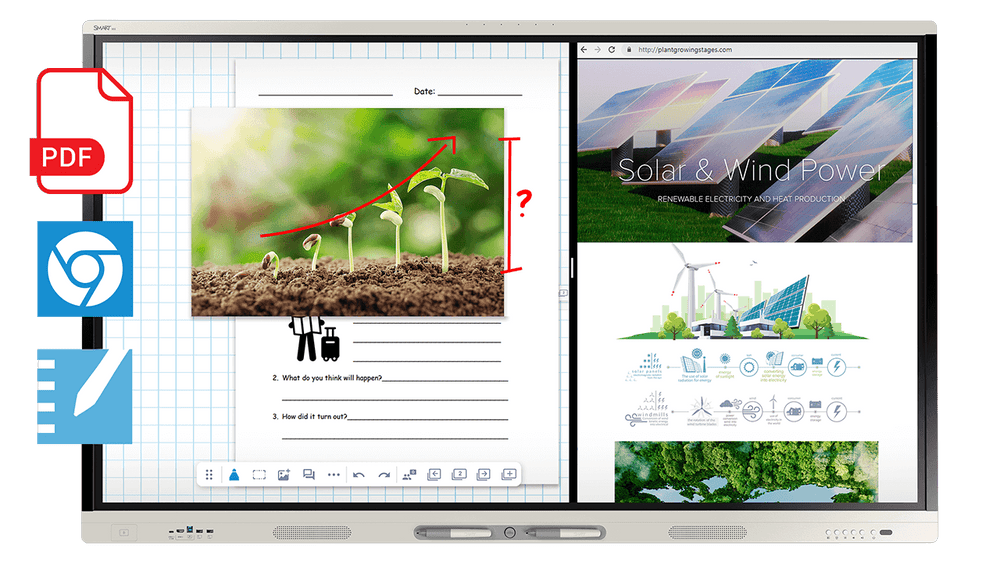

The SMART Board MX286-V5 is an 86-inch 4K UHD interactive flat panel designed for collaborative environments across the GCC and Africa. Powered by iQ with Android 15, it offers HyPr Touch technology for multi-user interaction. Smart-Boards supplies this authorised brand to educational and corporate clients throughout the region.
This interactive display integrates the iQ embedded Android operating system to simplify connectivity and reduce setup time for presenters and educators. It features HyPr Touch technology, supporting up to 50 simultaneous touch points on Windows and Mac devices with 1 mm accuracy. The built-in six-microphone array with acoustic echo cancellation ensures clear audio for video conferencing and hybrid learning sessions without external peripherals.
Built for durability in diverse climates, the screen utilises full heat-tempered glass with bonded, anti-glare, and anti-fingerprint coatings to maintain visibility in bright GCC and African classrooms. It includes a front-mounted USB Type-C port for 4K video and power, alongside rear HDMI, VGA, and RJ45 LAN ports for flexible integration into existing AV infrastructure. The device operates on 100V-240V power, making it suitable for varied regional electrical standards.
Key features
- 4K UHD Resolution - Displays content at 3840 × 2160 pixels with 400 cd/m² brightness for clear, vibrant visuals in well-lit rooms.
- iQ Android OS - Runs on Android 15 with SMART Notebook and SMART Control pre-installed for immediate interactive use upon unboxing.
- HyPr Touch Tech - Delivers low-latency touch response (≤ 5 ms) with object awareness and simultaneous tool differentiation for multiple users.
- Integrated Audio - Features two 20 W speakers and a linear six-microphone array for effective voice pickup and audio playback in meeting spaces.
- Connectivity Ports - Includes front USB Type-C for 4K video, plus rear HDMI, VGA, RJ45 LAN, and multiple USB Type-A/B ports for peripherals.
- Durability Features - Constructed with full heat-tempered, bonded glass that is anti-glare and anti-fingerprint to withstand frequent daily use.
- Wireless Standards - Supports tri-band Wi-Fi 6e and Bluetooth 5.2 for reliable wireless screen sharing and peripheral connections.
Ideal for lecture halls, boardrooms, and training centres across the GCC and Africa requiring large-format interactive collaboration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- Front: –; Back: 1
- Antenna
- 2
- Controls
- Power, Home, Volume, Input select, Screen shade, Freeze frame
Display
- Colour
- White
- Backlight
- LED
- Brightness
- 55 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Zero bonded glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
Touch
- Touch accuracy
- 1 mm
- Touch points
- 50 – Windows; 50 – Mac; 32 – Android; 16 – Chrome OS
- Touch response time
- ≤ 5 ms
- Touch technology
- HyPr Touch with Advanced IR
System
- Ambient light sensor
- Yes
- Processor
- Octa-core
- OPS slot
- SMART PCM modules
- Operating system
- Android 15
- RAM
- 8 GB DDR4
- Sensors
- Ambient Light
- Storage
- 64 GB
- Storage conditions
- -4–140°F ( -20–60°C )
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- Front: –; Back: 1
- NFC card reader
- Yes
- Serial port
- Front: –; Back: 1
- USB-C functions
- 65W, 27W Charging
- USB-C
- Front: 1; Back: –
- USB ports
- Front: –; Back: 1
- VGA input
- Front: –; Back: 1
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Camera & audio
- Audio out
- Front: –; Back: 1
- Speaker output
- 2 × 20W
- Speaker type
- Built-in Speakers
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
- Microphone
- Integrated mic array
Physical & warranty
- In the box
- Pens (×2)
- Operating humidity
- 5–80% relative humidity, non‑condensing
- Operating temperature
- 41–95°F ( 5–35°C )
- Power consumption
- 55": 72 W; 65": 90 W; 86": 149 W
- Standby power
- 0.2 W
- Dimensions
- Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
- Weight
- 71 lb. ( 32 kg )
- Shipping dimensions
- 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
- VESA mount
- M8, 400 × 400 mm
- Warranty
- Smart Assure Warranty
- Shipping weight
- 103 lb. ( 47 kg )
- Input voltage
- 100V to 240V AC, 50 Hz to 60 Hz
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the SMART Board MX286-V5 suitable for hot climates?
Yes, the operating temperature range is 5–35°C, and the display features anti-glare, bonded glass to maintain clarity in bright environments common across the GCC and Africa.
Can this display be installed outside the UAE?
No, on-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance available if needed.
Does it support Windows and Mac touch simultaneously?
Yes, HyPr Touch technology supports up to 50 simultaneous touch points on both Windows and Mac operating systems for collaborative whiteboarding sessions.
Is the iQ software included?
Yes, the iQ embedded Android OS, along with SMART Notebook and SMART Control, is included with the display to enable immediate interactive functionality.
Does it support Wi-Fi 6e?
Yes, the device includes an external tri-band Wi-Fi 6e antenna supporting 2.4, 5, and 6-7.2 GHz bands for high-speed wireless connectivity.
Which countries does Smart-Boards deliver to?
Smart-Boards delivers to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations through established logistics partners.
How is pricing handled?
Pricing is by quotation only. Smart-Boards offers education, government, bulk, and tender options; please contact the team for a specific quote.
