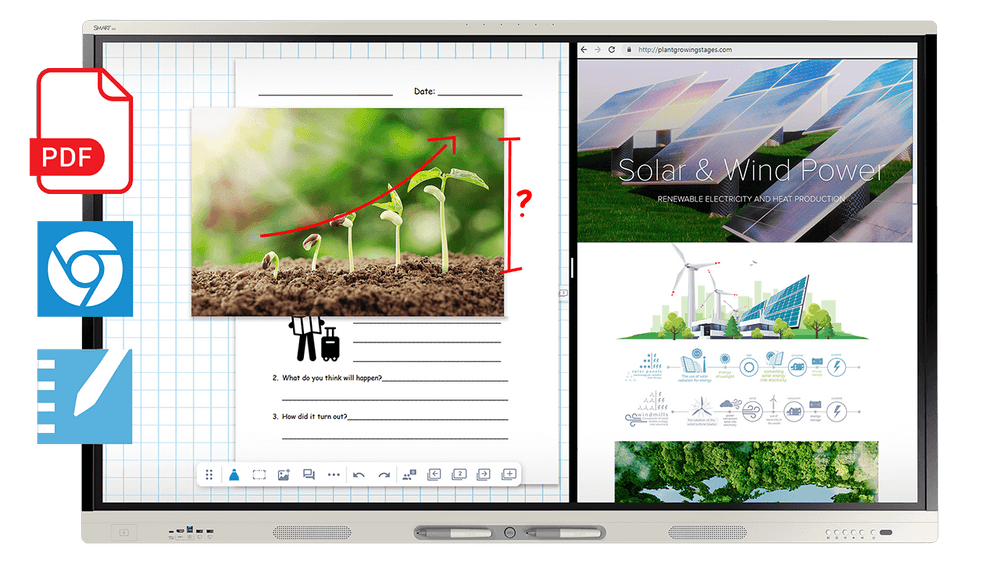

The SMART Board MX075-V5 is a 75-inch interactive flat panel featuring 4K UHD resolution and embedded iQ with Android 15. It supports 50-point touch and includes two pens. Smart-Boards supplies this model for schools and offices across the GCC and Africa.
This 75-inch display delivers 4K UHD clarity with 400 cd/m² brightness and a 178-degree viewing angle. The frame-mounted touch technology supports up to 50 simultaneous touch points on Windows and Mac, enabling collaborative work in meeting rooms or classrooms. The integrated iQ system runs Android 15 with an octa-core CPU, 8 GB RAM, and 64 GB storage, while automatic over-the-air updates keep the software current without manual intervention.
Connectivity includes front and rear ports such as USB-C for 4K video and touch, HDMI, RS-232, and dual RJ45 LAN ports for wired network management. Wireless options feature external tri-band Wi-Fi 6e antennas and Bluetooth 5.2, allowing flexible device pairing. The unit ships with two magnetic pens, a remote control, and a 5-meter USB cable, supporting multi-device environments across the GCC and Africa with local setup guidance.
Key features
- iQ Android System - Embedded Android 15 with octa-core CPU, 8 GB DDR4 memory, and automatic OTA updates for persistent software management.
- HyPr Touch Interface - Supports up to 50 simultaneous touch points on Windows/Mac with 1 mm accuracy and object awareness for precise collaboration.
- 4K UHD Display - LED backlight provides 3840 x 2160 resolution with 400 cd/m² brightness and 178-degree viewing angles for clear visibility.
- Integrated Audio - Built-in stereo speakers and a linear six-microphone array with acoustic echo cancellation support clear audio conferencing.
- Connectivity Ports - Includes front USB-C for 4K video, rear HDMI, RS-232, RJ45 LAN, and multiple USB 3.2 ports for diverse device integration.
Ideal for: Designed for classrooms, boardrooms, and government offices in the GCC and Africa requiring reliable interactive displays with embedded Android management.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- Front: –; Back: 1
- Antenna
- 2
- Controls
- Power, Home, Volume, Input select, Screen shade, Freeze frame
Display
- Colour
- White
- Backlight
- LED
- Brightness
- 55 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
Touch
- Touch accuracy
- 1 mm
- Touch points
- 50 – Windows; 50 – Mac; 32 – Android; 16 – Chrome OS
- Touch response time
- ≤ 5 ms
- Touch technology
- HyPr Touch with Advanced IR
System
- Ambient light sensor
- Yes
- Processor
- Octa-core
- OPS slot
- SMART PCM modules
- Operating system
- Android 15
- RAM
- 8 GB DDR4
- Sensors
- Ambient light sensor
- Storage
- 64 GB
- Storage conditions
- -4–140°F ( -20–60°C )
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- Front: –; Back: 1
- NFC card reader
- Yes
- Serial port
- Front: –; Back: 1
- USB-C functions
- 65W, 27W Charging
- USB-C
- Front: 1; Back: –
- USB ports
- Front: –; Back: 1
- VGA input
- Front: –; Back: 1
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Camera & audio
- Audio out
- Front: –; Back: 1
- Speaker output
- 2 × 20W
- Speaker type
- Built-in Speakers
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
- Microphone
- Integrated mic array
Physical & warranty
- In the box
- Remote control, stylus
- Operating humidity
- 5–80% relative humidity, non‑condensing
- Operating temperature
- 41–95°F ( 5–35°C )
- Power consumption
- 55": 72 W; 65": 90 W; 86": 149 W
- Standby power
- 0.2 W
- Dimensions
- Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
- Weight
- 71 lb. ( 32 kg )
- Shipping dimensions
- 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
- VESA mount
- M8, 400 × 400 mm
- Warranty
- Smart Assure Warranty
- Shipping weight
- 103 lb. ( 47 kg )
- Input voltage
- 100V to 240V AC, 50 Hz to 60 Hz
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can the MX075-V5 be delivered to?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations, through established logistics partners to ensure low-cost delivery.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed to assist your team.
What operating system does the MX075-V5 use?
The display runs on embedded iQ with Android version 15, which supports automatic over-the-air updates to Android 17, ensuring the software remains current without manual intervention.
Does the MX075-V5 support multi-touch?
Yes, the HyPr Touch technology supports up to 50 simultaneous touch points on Windows and Mac, 32 on Android, and 16 on Chrome OS, enabling collaborative work in large groups.
What audio features are included?
The unit includes integrated stereo speakers and a linear six-microphone array with acoustic echo cancellation, supporting clear audio for video conferencing and media playback without external hardware.
How is the MX075-V5 priced?
Pricing is by quotation only. Smart-Boards offers quote-only pricing with specific options for education, government, bulk orders, and tender requirements across the GCC and Africa.
Can I see a demonstration before buying?
Yes, Smart-Boards offers live or virtual demonstrations before purchase. This allows you to verify the display’s features and suitability for your specific location and technical environment.
