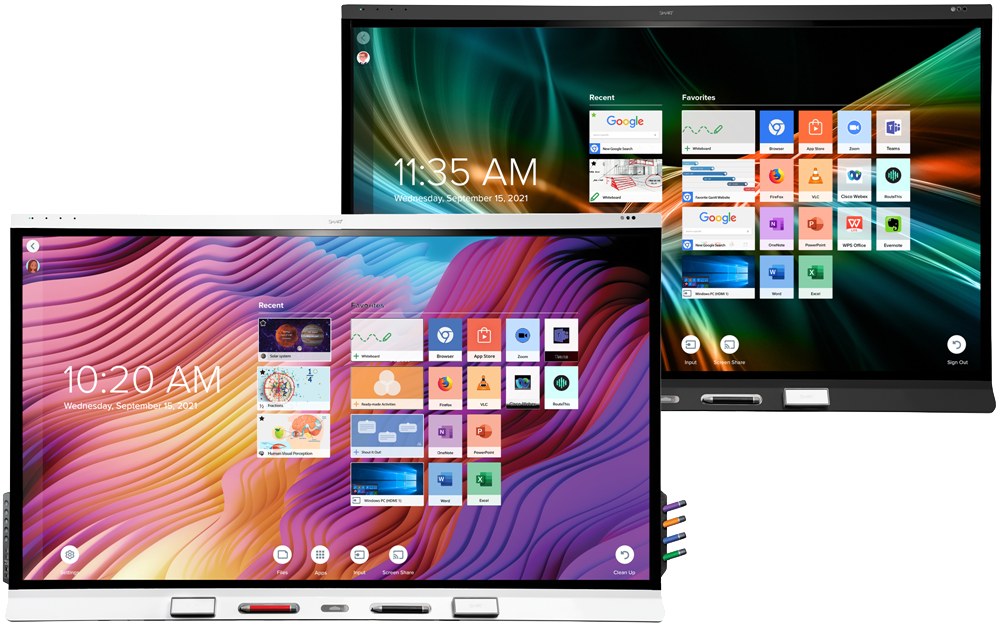

The SMART Board 6086S-V3 is an 86-inch interactive flat panel featuring 4K UHD resolution and up to 40 touch points via HyPr Touch technology. This model includes built-in iQ systems for classroom management and runs on Android 11. Smart-Boards supplies this unit for educational institutions and corporate sites in the GCC and Africa.
Designed for large collaborative spaces, this display delivers sharp 4K UHD visuals with a brightness of at least 350 nits. The HyPr Touch interface supports up to 40 simultaneous touch points, enabling multiple users to interact simultaneously with precision. Integrated audio components include dual 20 W speakers and a four-microphone array for clear communication.
Connectivity options are extensive, featuring HDMI 2.1 ports, two USB-C inputs for video and touch, and a dedicated OPS slot for 60 W devices. The system runs on Android 11, offering built-in Wi-Fi 6 and Bluetooth 5.0 capabilities. This configuration supports reliable wireless connectivity and flexible device integration for diverse technical environments.
Key features
- 4K UHD Interaction - An 86-inch screen providing 3840 x 2160 resolution with up to 40 touch points for multi-user collaboration.
- Built-in iQ System - Runs Android 11 with integrated SMART iQ software, supporting NFC sign-in and wireless presentation capabilities.
- Comprehensive Connectivity - Includes HDMI 2.1, USB-C, OPS slot, and dual RJ45 ports for robust network and peripheral integration.
- Audio & Microphone Array - Features dual 20 W speakers and a linear four-microphone array for clear audio capture and playback.
- Included Wall Mount - Ships with the WM-SBID-200 wall mount kit for secure installation and space-saving setup.
Ideal for: This interactive display is ideal for universities, government ministries, and large corporate training centers across the GCC and Africa requiring high-capacity collaboration tools.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- SBID-6286S-V3
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD display, up to 40 touch points, Android 11 iQ, SMART Notebook included, two 20 W speakers, NFC sign-in, Wi-Fi 802.11 a/b/g/n/ac, OTA updates
Display
- Backlight
- LED
- Brightness
- 350 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Response time
- ≤ 8 ms
Touch
- Touch accuracy
- ±1 mm
- Touch points
- Up to 40 touch points (OS dependent)
- Touch technology
- HyPr Touch with InGlass
System
- OPS slot
- 1 (back), for 60 W devices
- Operating system
- Android 11
- RAM
- 6 GB
- Storage
- 32 GB
- Storage conditions
- -20 to 60 °C
Connectivity
- Bluetooth
- Bluetooth 5.0 (dual mode)
- Ethernet (RJ45)
- RJ45 × 2 (1000baseT)
- USB-C
- USB-C × 2 (1 front, 1 back): 4K @ 60 Hz, DisplayPort 1.2, USB 2.0 (UFP) for touch and digital audio
- USB ports
- USB 3.0 Type-A × 3 (1 front, 2 back), USB 2.0 Type-A × 1 (back), USB 2.0 Type-B × 1 (front), USB 3.0 Type-B × 3 (back)
- Wi-Fi
- 802.11 a/b/g/n/ac, 2 × 2 MIMO, 2.4 and 5 GHz
- Ports
- HDMI 2.1 with HDCP 1.4 and 2.3 × 3 (1 front, 2 back), HDMI 2.1 × 1 (back), VGA × 1 (back), RS-232 × 1 (back), 3.5 mm stereo × 1 (back), S/PDIF × 1 (back)
- Connectivity options
- Wi-Fi, Bluetooth 5.0, RJ45 × 2, integrated NFC
Camera & audio
- Audio
- 2 × 20 W integrated speakers
- Microphone
- Integrated linear four-microphone array
Physical & warranty
- In the box
- Pens (2), erasers (2), USB cable, remote control, WM-SBID-200 wall mount, SMART ID cards (2), dual-band 2.4 and 5 GHz antennae (3)
- Operating humidity
- 5% to 80% RH, non-condensing
- Operating temperature
- 5 to 35 °C
- Power consumption
- 161 W (typical)
- Standby power
- 0.4 W
- Dimensions
- 2005 x 1221 x 124 mm
- Weight
- 86 kg
- VESA mount
- 600 x 400 mm (M8)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What countries does Smart-Boards deliver to?
Yes, Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, delivery is ready for local setup with remote guidance if needed.
Can I book a demo before purchasing?
Yes, live or virtual demonstrations are available before purchase to review the interactive features and iQ software capabilities.
How is pricing determined for this model?
Pricing is by quotation only. Education, government, bulk, and tender options are available upon request from our team.
What warranty is included?
The product comes with a manufacturer warranty plus Smart-Boards after-sales support. Delivery times depend on the country and order size.
What is the touch technology used?
It uses HyPr Touch with InGlass technology, supporting up to 40 touch points with ±1 mm accuracy for precise interaction.
Does it support wireless presentation?
Yes, it features dual-band Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 5.0 for reliable wireless connectivity and presentation options.
