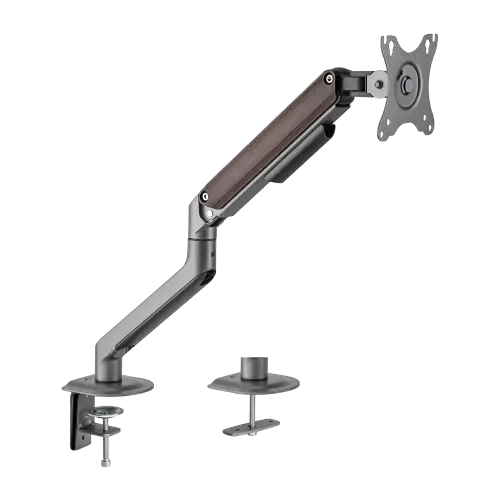

VSYS VMAE-C012 Spring-Assisted Single Monitor Arm for 17"–32" Monitors, 9 kg. One screen, off the stand, exactly where the user wants it.
A monitor on its factory stand sits too low, eats the depth of the desk and never moves again. The VSYS VMAE-C012 takes one 17" to 32" screen weighing between 2 and 9 kg off that stand and puts it on a counterbalanced arm, where height, tilt, swivel and depth all change with a fingertip and stay where they are put. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and display range, with quotations and low-cost delivery to your country.
The mechanism is a mechanical spring, tuned once to the weight of your specific monitor with a single tension adjustment - no gas cylinder to lose pressure, no knobs to loosen every time the screen moves. Height runs from 133 mm to 428 mm, reach extends to 453 mm from the base, tilt is plus or minus 55 degrees, swivel plus or minus 90 degrees and rotation plus or minus 180 degrees for portrait work. A rotation stop prevents the arm swinging into a wall or a neighbour's screen, and both a desk clamp (10-80 mm tops) and a grommet mount (10-40 mm) are in the box.
Key features
- Self-adjusting spring counterbalance carries the monitor's weight, so the screen glides and holds without drifting or sagging over time
- One tension adjustment tunes the arm anywhere across the 2 to 9 kg range, and retunes if the monitor is replaced later
- 180 degree rotation stop keeps the arm out of walls, partitions and adjacent desks - the detail that matters in back-to-back desk clusters
- Height from 133 mm to 428 mm and reach to 453 mm brings the screen to eye level and lets it be pulled forward or pushed back
- Tilt plus or minus 55 degrees and swivel plus or minus 90 degrees for glare control and for turning the screen to show a colleague
- Rotates 180 degrees into portrait, useful for code, documents and long reports
- Quick-release joint speeds up installation and ships in a smaller carton, which cuts freight cost on volume orders
- Desk clamp and grommet mount both supplied, so the arm fits almost any desk without buying extra parts
- Cable management runs the length of the arm, protecting leads as the screen moves
- Steel and aluminium construction with a powder-coated finish, RoHS compliant, in space grey, matte silver or space grey and wood
| Brand | VSYS |
|---|---|
| Cable management | Integrated along the arm |
| Colour | Space grey, matte silver, or space grey and wood |
| Compliance | RoHS compliant |
| Counterbalance | Self-adjusting mechanical spring, single tension adjustment |
| Desk fixing | Desk clamp for 10 to 80 mm tops, grommet mount for 10 to 40 mm tops |
| Display compatibility | One monitor, 17 inch to 32 inch, flat or curved |
| Extension | Up to 453 mm (17.8 inches) from the base |
| Height adjustment | 133 mm to 428 mm, spring assisted |
| In the box | Monitor arm, detachable VESA plate, desk clamp, grommet mount, installation instructions |
|---|---|
| Material | Steel and aluminium, powder coated |
| Max load | 2 kg to 9 kg (4.4 to 19.8 lbs) |
| Mounting type | Desk-mounted single monitor arm, clamp or grommet |
| Rotation | Plus or minus 180 degrees, landscape or portrait, with rotation stop |
| Swivel range | Plus or minus 90 degrees |
| Tilt range | Plus or minus 55 degrees |
| Vesa pattern | 75x75 mm and 100x100 mm |
| Model | VMAE-C012 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VMAE-C012?
It is a desk-mounted arm for a single monitor between 17" and 32" weighing 2 to 9 kg. A spring counterbalance holds the screen at any height from 133 mm to 428 mm, and the arm tilts, swivels and rotates so one user can set the screen exactly where they want it.
2. Is it compatible with my monitor?
Yes - if the screen is 17" to 32", weighs between 2 and 9 kg and has a 75x75 mm or 100x100 mm VESA pattern, it will fit. Tell us your monitor model when you request a quote and we will confirm the exact fit.
3. My monitor is very light. Will the spring push it upwards?
No, provided it is at least 2 kg. The spring tension is set once during installation to match the actual weight of the screen, which is why the range is quoted as 2 to 9 kg rather than simply a maximum. Below 2 kg the arm cannot be balanced properly.
4. How is it fixed to the desk?
Either way you prefer. A C-clamp grips desktops from 10 mm to 80 mm thick with no drilling, and a grommet mount passes through an existing cable hole in tops from 10 mm to 40 mm. Both parts are supplied, so you do not have to decide before ordering.
5. What does the 180 degree rotation stop do?
It physically limits how far the arm can swing. In a room where desks back onto each other or sit against a wall, that stops a monitor being pushed into a partition or into a colleague's screen - a small feature that prevents a lot of damage in shared offices.
6. Do you ship the VSYS VMAE-C012 across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VMAE-C012?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can fit arms across a floor of desks. Outside the UAE the arm ships ready for local setup; the quick-release joint and direction indicator make it a straightforward job for facilities staff with the supplied hardware.
9. Should I order this or the dual-screen version?
Order this one where each user has a single screen - reception desks, labs, hot desks and most standard office workstations. If your users run two monitors side by side, the VSYS VMAE-C024 puts both on a single base and is the better buy.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects. Monitor arms are usually a high-quantity line and the quick-release design keeps freight costs down.
