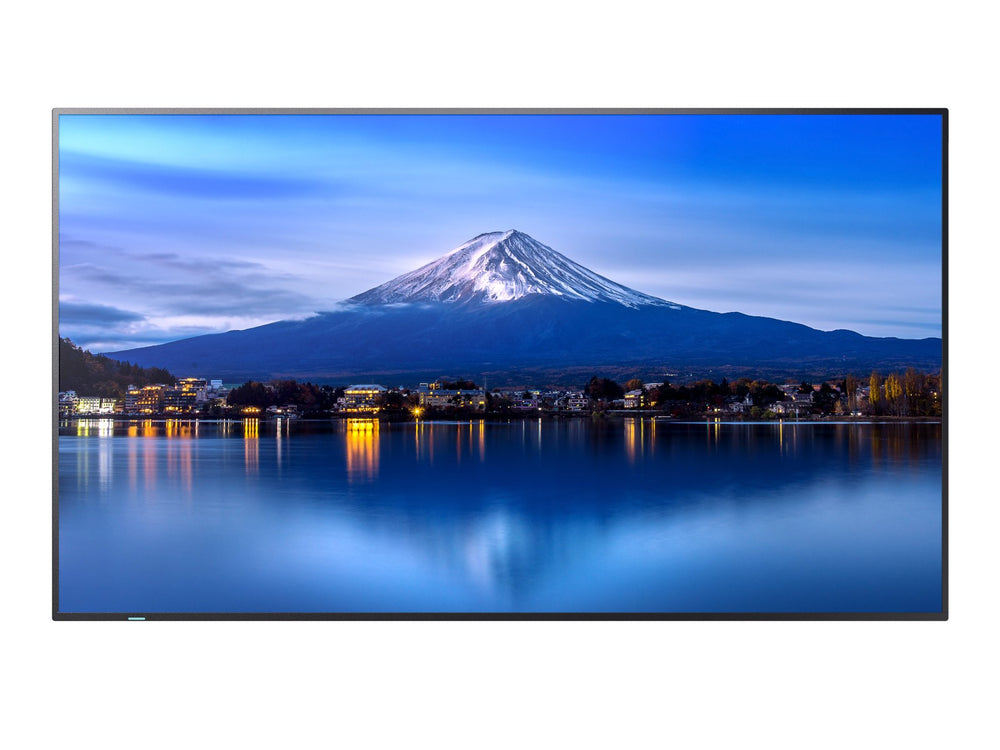

The Sharp MultiSync® P656-LCD is a 64.5-inch professional digital signage display designed for high-traffic commercial environments. Featuring 700 cd/m² brightness and a durable metal chassis, it delivers reliable performance for control rooms and retail spaces. Smart-Boards supplies this unit across the GCC and Africa.
Engineered for mission-critical applications, this display combines an IPS panel with direct LED backlights to ensure consistent viewing angles and colour accuracy. The screen achieves 700 cd/m² brightness with a contrast ratio of ≥8000:1, maintaining clarity in challenging lighting. A high-haze panel reduces glare, while the all-metal chassis meets strict fire safety standards for heavy-use areas.
Integration flexibility is supported by Intel® SDM and Raspberry Pi compute slots, alongside native HDMI and DisplayPort video daisy chaining for scalable deployments. Security features include 802.1x LAN support and certified compatibility with Crestron and Q-Sys. The unit accepts 100-240 V AC input and operates within a wide temperature range, suitable for diverse regional conditions.
Key features
- Visual Performance - The 64.5-inch 4K panel delivers 700 cd/m² brightness and 10-bit colour depth for precise image reproduction in bright environments.
- Modular Computing - Internal slots accept Intel® SDM or Raspberry Pi modules, allowing custom processing without external boxes for cleaner installations.
- Video Daisy Chaining - Native HDMI and DisplayPort loop-through enables scalable multi-display setups for seamless content expansion across multiple units.
- Durability and Safety - A robust metal backcover and IP5x front protection ensure resilience in high-traffic spaces, complying with UL94-5VB fire safety standards.
- Connectivity Options - Includes UHD HDMI, DP 1.2, USB-C with 65 W power delivery, and RS-232C for reliable control and signal transmission.
Ideal for control rooms, retail signage, and corporate lobbies requiring reliable 4K displays, suitable for buyers managing multi-site rollouts across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- PN-P656
- Fire rating
- Metal backcover, plastic material certified acc. to UL94-5VB
- IP rating
- IP5x (front); IP2x (back)
- Orientation
- Face Down; Face Up; 2; ; Landscape; Portrait
- Security features
- Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)
Display
- Brightness
- 700 cd/m²
- Colour depth
- 1.073 (10bit)
- Refresh rate
- 60
- Resolution
- 4K UHD
- Screen size
- 64.5"
- Surface protection
- Pro (25)
- Viewing angle
- 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
- Aspect ratio
- 16:9
- Colour gamut
- 92% of DCI
- Contrast ratio
- ≥ 8000:1; 1
- Panel technology
- ÎPS with Direct LED backlights
- Response time
- 8 (grey-to-grey)
System
- Operating hours
- 24/7
- Storage conditions
- 10 to 80
Connectivity
- DisplayPort
- Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input
- Ethernet (RJ45)
- 100 MBit/s
- HDMI input
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
- HDMI output
- Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module
- Serial port
- 9600 bps
- USB-C
- Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W
- USB ports
- USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage
- Ports
- Eco Sensor (IR-Extender, Ambient and Presence)
Camera & audio
- Audio out
- Audio Output; Line Out
Physical & warranty
- In the box
- Eco Sensor (KTES1); Feet (ST-65M); Remote control kit (KTRC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04 Tipster, L20PNSR780MEU); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (PDW S 32-65 L, PDW S 32-65 P, L20PNWALL90EU, PDW T XL-2)
- Operating humidity
- 20 to 80
- Operating temperature
- +0 to +40
- Power consumption
- 160 (typ.)
- Standby power
- < 0.5; < 2 (Networked Standby)
- Dimensions
- 1,454.5 x 832.4 x 59.5
- Weight
- 26
- Shipping dimensions
- 1,620 x 950 x 185
- VESA mount
- 4 holes; 400 x 400 (FDMI); M6
- Warranty
- 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension; 3
- Shipping weight
- 35
- Bezel size
- 11 (left/right/top); 13.9 (bottom)
- Input voltage
- 100-240 V AC; 50/60 Hz; internal
- Certifications
- CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Sharp PN-P656 support multiple display configurations?
Yes. The unit supports native video daisy chaining via HDMI and DisplayPort, allowing content to be cloned or expanded across multiple displays for scalable signage deployments.
Can I add computing power to this display?
Yes. The display includes slots for Intel® Smart Display Modules (SDM) or a Raspberry Pi MPi4/MPi5 kit, enabling integrated processing for autonomous signage or interactive applications.
Is the Sharp PN-P656 suitable for bright environments?
Yes. With 700 cd/m² brightness and a high-haze panel finish, it maintains visibility and reduces glare effectively in well-lit commercial spaces and retail environments.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations. Delivery costs are minimised through established logistics partners and confirmed on your quotation.
Do you provide installation outside the UAE?
On-site installation is available within the UAE only. For deliveries to other countries, the unit arrives ready for local setup with remote guidance provided if needed to ensure correct configuration.
Is the Sharp PN-P656 compatible with Crestron or Q-Sys?
Yes. The display is certified for Crestron CCV2 and XiO Cloud, and includes a Q-Sys Plug-in, ensuring straightforward integration with these popular AV control platforms.
What accessories are available for the Sharp PN-P656?
Available accessories include the Eco Sensor (KTES1), feet (ST-65M), remote control kit (KTRC3), soundbar (PN-ZCMS1), speaker (SP-RM3a), trolley, and various wall mounts for flexible installation.
