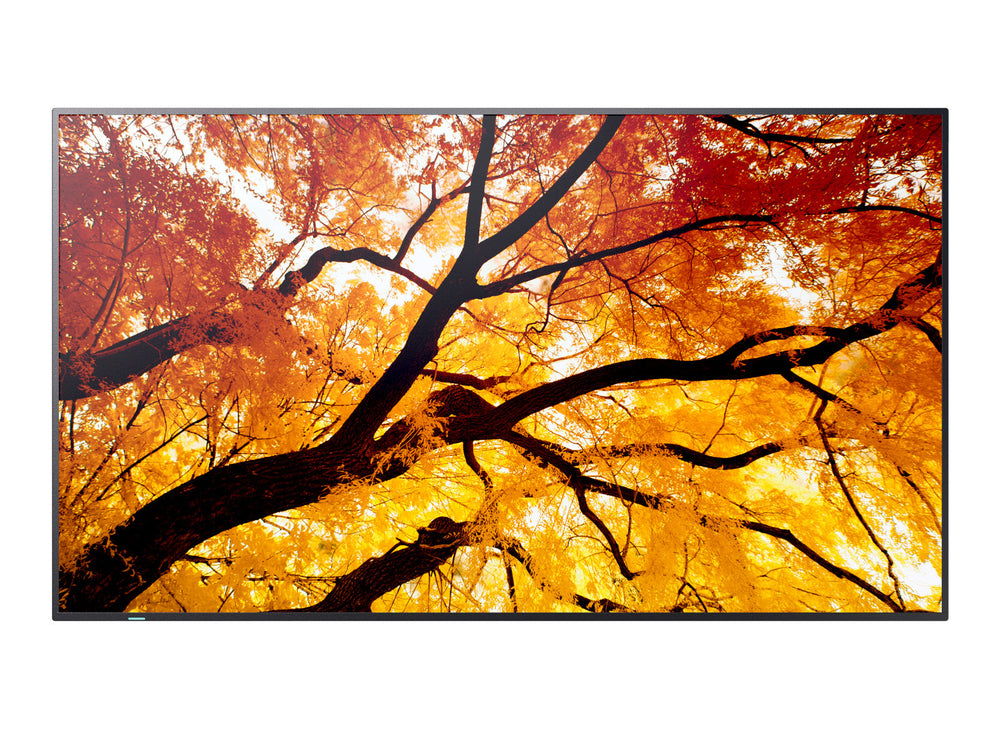

The Sharp MultiSync® M502 is a 50-inch professional digital signage display designed for high-brightness environments. Featuring native 4K UHD resolution and a 550-nit VA panel, it ensures clear visibility in well-lit spaces. Smart-Boards supplies this model for commercial and educational installations across the GCC and Africa.
Engineered for continuous operation, this Sharp MultiSync® display supports 24/7 duty cycles with a minimum 8,000:1 contrast ratio and 550 nits of brightness. The 50-inch VA panel delivers 4K UHD (3840 x 2160) resolution and 1.07 billion colours, ensuring sharp text and vivid imagery for digital signage or meeting rooms. Its 10.9 mm side bezels facilitate clean multi-screen video walls, while the IP5x front rating protects against dust accumulation in demanding environments.
Connectivity includes dual HDMI inputs, DisplayPort loop-through, and two USB-C ports supporting 65W input for direct device connection. The M502 features Intel SDM and MPi4/MPi5 slots for modular computing, alongside Cisco and Crestron certifications for secure integration. Built with enterprise-grade security like IEEE802.1X LAN support, it offers reliable performance for businesses requiring durable, high-visibility displays across the GCC and African markets.
Key features
- 4K UHD Visuals - Delivers native 3840 x 2160 resolution on a 50-inch VA panel with 1.07 billion colours for sharp, detailed content.
- High Brightness - Maintains 550 nits brightness and 8,000:1 contrast ratio for clear visibility in ambient light conditions.
- Modular Design - Includes Intel SDM and MPi4/MPi5 slots for flexible computing options and future-proof connectivity.
- Enterprise Security - Supports IEEE802.1X LAN authentication and hardware button disabling for secure network integration.
- Continuous Operation - Rated for 24/7 duty cycle with IP5x front ingress protection to withstand dusty environments.
Ideal for lobbies, corporate boardrooms, and educational facilities requiring durable 4K signage, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- PN-M502
- Product type
- Digital Signage Display
- Key features
- Native 4K UHD, 550 nits VA, USB-C 65 W input, DP and HDMI loop-through, MPi4/MPi5 and Intel SDM slots, Cisco and Crestron certified, 2-split PiP, IEEE802.1X LAN
- IP rating
- IP5x front, IP2x back
- Security features
- Disable hardware buttons, disable IR, IEEE802.1X (LAN)
Display
- Backlight
- Direct LED
- Brightness
- 550 cd/m²
- Colour depth
- 1.07 billion colours (10-bit)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 50"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Colour gamut
- 72% of NTSC
- Contrast ratio
- 8,000:1 (minimum)
- Panel technology
- VA
- Response time
- 8 ms
System
- Operating hours
- 24/7
Connectivity
- Ethernet (RJ45)
- 100 Mbit/s
- Serial port
- RS-232C, 9600 bps
- Ports
- HDMI In × 2, HDMI Out × 1, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 2, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
Physical & warranty
- In the box
- Display, HDMI cable, power cable, remote control, 2x AAA batteries, setup manual
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 85 W (shipping)
- Dimensions
- 1121.6 x 645.2 x 66.5 mm
- Weight
- 18 kg
- VESA mount
- 300 x 300 mm
- Warranty
- 3 years
- Bezel size
- 10.9 mm left, right and top, 13.9 mm bottom
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, EMC Class B, Energy Star 8, FCC Class B, REACH, RoHS, UKCA, UL/C-UL or CSA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum brightness of this display?
The Sharp PN-M502 offers a maximum brightness of 550 nits, ensuring content remains visible in well-lit indoor environments.
Does it support continuous operation?
Yes, the display is rated for a 24/7 duty cycle, making it suitable for always-on digital signage applications.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to GCC countries and African nations through established logistics partners, ensuring cost-effective delivery to your location.
Is installation included outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed.
What computing slots are available?
The M502 includes slots for Intel SDM modules and MPi4/MPi5 boards, allowing for flexible and modular computing integration.
Does it support USB-C input?
Yes, it features two USB-C ports that support 65W input, enabling direct connection and power delivery for compatible devices.
What is the warranty period?
The Sharp MultiSync® M502 comes with a 3-year manufacturer warranty, complemented by Smart-Boards' after-sales support.
