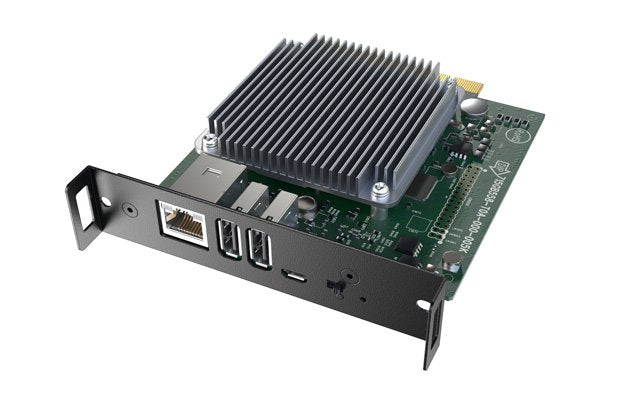

The Sharp MPi4 Kit powered by Raspberry Pi is an embedded signage media player designed for Sharp and NEC large format displays. It features a quad-core 1.5 GHz processor, 4 GB RAM, and 32 GB eMMC storage. Smart-Boards supplies this solution for digital signage projects across the GCC and Africa.
This embedded module integrates directly into supported Sharp and NEC displays to handle visual applications efficiently. Powered by a quad-core 64-bit Arm Cortex-A72 at 1.5 GHz with a VideoCore IV GPU, it decodes H.265 video up to 4Kp60 and H.264 up to 1080p60. The design includes a watchdog timer and real-time clock for reliable scheduling, alongside an upgradeable module slot to secure future-proof operation for commercial environments.
Smart-Boards provides this open-platform solution for businesses across the GCC and Africa seeking flexible digital signage infrastructure. The kit connects to networks via Ethernet and supports external devices through USB interfaces, making it suitable for retail, passenger information, and menu boards. Pricing is by quotation only, with delivery times confirmed based on country and order size. We support multi-site rollouts with remote setup guidance for international locations.
Key features
- Processing Power - Quad-core 1.5 GHz Arm Cortex-A72 processor with VideoCore IV GPU handles 4K HEVC decoding and OpenGL ES 3.0 graphics.
- Memory and Storage - Equipped with 4 GB LPDDR2 SDRAM and 32 GB on-board eMMC for robust content caching and operating system performance.
- Display Compatibility - Embeds into supported Sharp ME, M, MA, and P series displays, as well as select NEC large format models.
- Reliability Features - Includes a watchdog timer and real-time clock to ensure stable operation and precise scheduling for critical signage applications.
- Connectivity Options - Offers Ethernet access via the display interface board and USB ports for connecting peripherals like mice, keyboards, or sensors.
Ideal for: Retail storefronts, passenger information systems, and corporate lobbies requiring embedded computing power in Sharp or NEC displays across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- MPi4 Kit powered by Raspberry Pi
- Product type
- Signage Media Player (Embedded Kit)
- Key features
- Embedded design, quad-core CPU, 4K HEVC decode, 4 GB RAM, 32 GB eMMC, upgradeable module slot, watchdog timer, real-time clock
- Compatibility
- Sharp displays ME431, ME501, ME551, ME651, M431, M491, M551, M651, M751, M861, M981, MA431, MA491, MA551, P435, P495, P555
- Form factor
- Embedded module for supported Sharp or NEC large format displays
System
- Processor
- Quad-core 64-bit Arm Cortex-A72, 1.5 GHz (VideoCore IV GPU)
- Graphics
- H.265 (HEVC) decode up to 4Kp60; H.264 decode up to 1080p60, encode up to 1080p30; OpenGL ES 3.0
- Operating system
- Raspberry Pi OS optimised for
- RAM
- 4 GB LPDDR2 SDRAM
- Storage
- 32 GB
Connectivity
- Ethernet (RJ45)
- Yes, via display interface board
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which Sharp and NEC displays support the MPi4 Kit?
The kit is compatible with Sharp ME431, ME501, ME551, ME651, M431, M491, M551, M651, M751, M861, M981, MA431, MA491, MA551, P435, P495, and P555 models. It also works with select NEC large format displays. Always verify specific model compatibility with our sales team before purchase.
What is the operating system used in this kit?
The MPi4 Kit runs on Raspberry Pi OS, which is optimised specifically for signage applications. The operating system is built to order to ensure compatibility with the embedded hardware, providing an open platform for accessing global Raspberry Pi developer solutions.
Can this media player handle 4K video content?
Yes, the VideoCore IV GPU supports H.265 (HEVC) decode up to 4Kp60. It also handles H.264 decode up to 1080p60 and encode up to 1080p30, making it suitable for high-resolution digital signage content in commercial environments.
Which countries can you deliver the Sharp MPi4 Kit to?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times depend on the destination and order size, and are confirmed in your quotation. We use established logistics partners to ensure cost-effective transport.
Do you provide installation services for this kit in the UAE?
On-site installation is available within the UAE only. For deliveries to other countries, the product arrives ready for local setup. We provide remote guidance if needed to assist your technical team with the embedding process in supported Sharp or NEC displays.
Is the processing unit upgradeable in the future?
Yes, the MPi4 Kit features an upgradeable module slot. This modular design allows you to exchange the computing module to secure future-proof operation as digital signage requirements evolve, without replacing the entire display system.
What warranty and support do you offer for this product?
We provide the manufacturer warranty plus Smart-Boards after-sales support. As an authorised reseller, we ensure genuine parts and technical assistance. Contact our team for specific warranty terms and support options applicable to your region in the GCC or Africa.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
