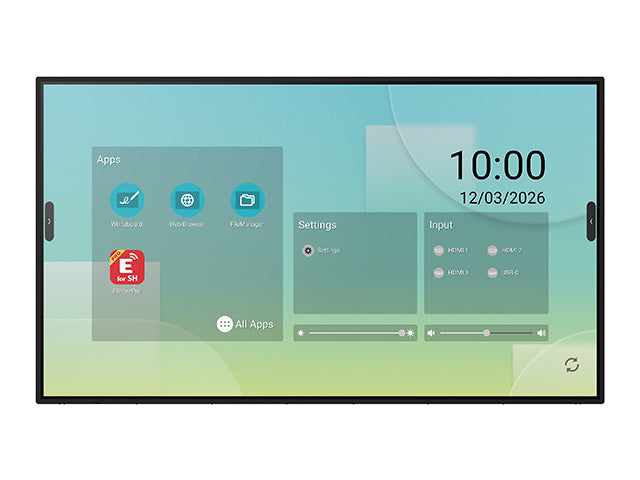

The Sharp PN-LB653-WIFI is a 65-inch 4K UHD interactive flat panel designed for professional collaboration in GCC and African environments. Featuring Android 14, 40-point infrared touch, and 100W USB-C power delivery, it supports flexible BYOM workflows. Smart-Boards supplies this unit across the region with regional logistics and support.
This Sharp LB3 Series display integrates an octa-core processor with 8 GB RAM and 64 GB storage, running Android 14 with Google EDLA certification for secure Google Workspace integration. The 65-inch IPS panel delivers 3840 x 2160 resolution at 500 nits brightness, ensuring readability in well-lit GCC classrooms and boardrooms. A zero-bonded glass surface with anti-glare coating protects the 178° viewing angle, while the 16 mm symmetrical bezel maintains a clean aesthetic for corporate and educational installations.
Connectivity is prioritized with two HDMI inputs, two HDMI outputs, and two USB-C ports supporting up to 100W power delivery for single-cable BYOM setups. Wireless collaboration is enabled via IEEE 802.11ax Wi-Fi and Bluetooth 5.3, allowing seamless screen sharing through the built-in EShare app. The unit includes an OPS slot for Intel or NEC modules, dual LAN ports, and RS-232C control for multi-site AV integration. Audio is handled by dual 15 W speakers, suitable for rooms requiring clear presentation audio without external amplification.
Key features
- 4K UHD Visuals - The 65-inch IPS panel provides 3840 x 2160 resolution with 500 nits brightness for clear content in bright GCC environments.
- Android 14 OS - Google EDLA certified Android 14 ensures secure access to Google Play Store and native integration with Google Workspace applications.
- 40-Point Touch - Infrared touch technology supports 40 simultaneous touch points with a natural pen-on-paper writing experience for collaborative sessions.
- 100W USB-C - Two USB-C ports provide data, video, and up to 100W power delivery, enabling single-cable BYOM workflows for laptops and devices.
- EShare Collaboration - Built-in EShare screen sharing and IEEE 802.11ax Wi-Fi allow wireless content transmission without additional hardware for quick setup.
- OPS Slot - An OPS slot compatible with NEC and Intel standards allows easy integration of Windows PCs for enhanced computing capabilities.
Ideal for corporate meeting rooms, higher education lecture halls, and government training centers across the GCC and Africa requiring reliable 4K collaboration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- PN-LB653-WIFI
- Product type
- Interactive Flat Panel
- Key features
- Infrared touch, 40-point multi-touch, Android 14, Google EDLA certified, 100 W USB-C, built-in whiteboard, E-Share screen sharing, OPS slot
- Orientation
- Landscape; Portrait
Display
- Backlight
- Direct LED
- Brightness
- 500 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 65"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 1,500:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch points
- 40-point multi-touch
- Touch technology
- Infrared
System
- Processor
- Octa-core Arm Cortex-A53 2 GHz + Cortex-A73 2.3 GHz
- OPS slot
- OPS (NEC / Intel standard)
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 64 GB
- Operating hours
- 18/7
Connectivity
- Bluetooth
- Bluetooth 5.3
- Wi-Fi
- IEEE 802.11 a/b/g/n/ac/ax; WPA3 Enterprise
- Ports
- HDMI In × 3, HDMI Out × 1, USB-C × 2 (100 W and 7.5 W), USB-A × 3, USB-B × 1, LAN × 2, RS-232C × 1, 3.5 mm audio out
Camera & audio
- Speaker output
- 2 × 15 W
Physical & warranty
- In the box
- Display, 2 passive styluses, remote control, power cable, 300 cm USB cable, 2 AAA batteries, cable clamps, setup manual, wireless adapter
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 5 to 35 °C
- Power consumption
- 140 W (typical)
- Dimensions
- 1487 x 862 x 87 mm
- Weight
- 35 kg
- VESA mount
- 600 x 400 mm
- Warranty
- 3 years (incl. backlight)
- Bezel size
- 16 mm (symmetrical)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, EMC Class B, RoHS, UKCA, EnergyStar 8.0
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the warranty coverage for this Sharp display?
The Sharp PN-LB653-WIFI includes a 3-year manufacturer warranty that covers the panel and backlight. Smart-Boards provides after-sales support in the UAE, with delivery timelines confirmed per quotation based on destination country.
Which countries in the GCC and Africa does Smart-Boards ship to?
Smart-Boards ships to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations. Logistics partners ensure lowest possible delivery costs, with lead times confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is available only within the UAE. For other countries, the display is delivered ready for local setup. Remote guidance is provided if needed, but installation must be arranged by local partners or IT teams.
Does this model support Google Workspace applications?
Yes, the device runs Android 14 with Google EDLA certification, providing secure access to the Google Play Store and native integration with Google Workspace apps for efficient teamwork and collaboration.
Can I use my own laptop with this interactive panel?
Yes, the two USB-C ports support video, data, and up to 100W power delivery, allowing single-cable BYOM connections. HDMI inputs are also available for devices without USB-C video output.
What is the touch technology used in this Sharp display?
The Sharp PN-LB653-WIFI uses infrared touch technology that supports 40 simultaneous touch points. It includes two passive styluses and offers a responsive writing experience suitable for annotation and drawing.
What accessories are included in the box?
The package includes the display, two passive styluses, a remote control, power cable, 300 cm USB cable, two AAA batteries, cable clamps, setup manual, and a wireless adapter for immediate connectivity.
