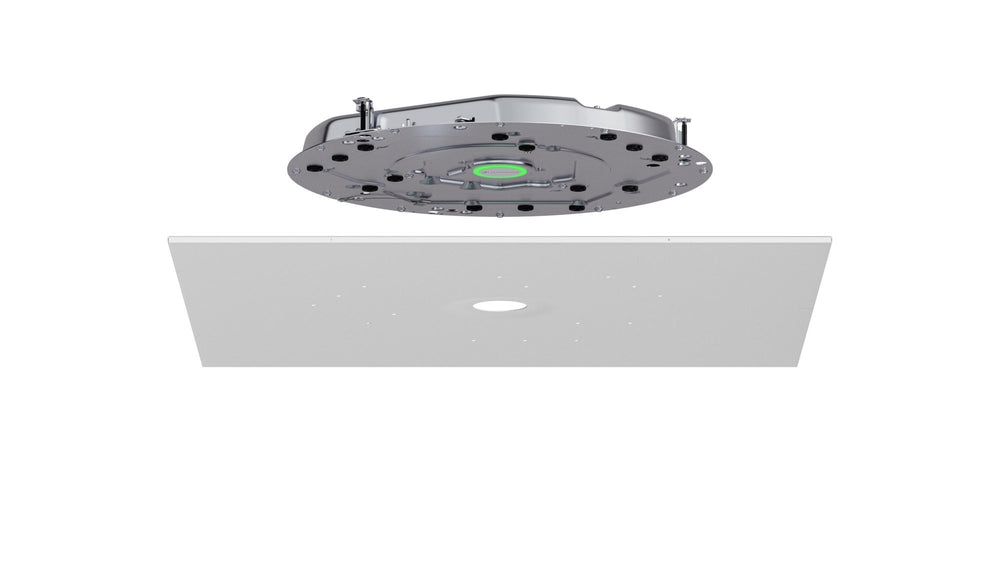

The Sennheiser TeamConnect Ceiling Medium CT-W 2FT (Model 700518) is a ceiling-mounted conferencing microphone array designed for medium-sized rooms. Featuring 15 German-made electret condenser capsules and adaptive beamforming, it ensures precise voice capture. Smart-Boards supplies this device across the GCC and Africa, providing installation support in the UAE and remote guidance elsewhere.
This ceiling microphone array utilises 15 pre-polarised condenser capsules to capture speech from any position in the room. The integrated adaptive beamforming technology isolates talkers while reducing background noise, ensuring high speech intelligibility. It supports single-cable operation via PoE or PoE+, simplifying infrastructure by combining power and data into one connection. The metal housing is paintable and supports flush, surface, suspended, or VESA mounting options for flexible integration.
The CT-W 2FT outputs audio via Dante or analog connections, compatible with standard audio systems. It is Microsoft Teams certified and includes security features like IEEE 802.1x and encrypted SSCv2 API. The unit requires initialization with Sennheiser Control Cockpit and is password-protected by default for enhanced security. Smart-Boards acts as an authorised reseller, offering manufacturer warranty and after-sales support for clients in the GCC and African regions.
Key features
- Adaptive Beamforming - Patented automatic dynamic beamforming tracks talkers to ensure perfect speech intelligibility in medium-sized spaces.
- 15 German Capsules - Built with 15 pre-polarised electret condenser capsules manufactured in Germany for consistent audio performance.
- Single-Cable Power - Powered via PoE or PoE+ with single-cable mode, allowing single or daisy-chained connections for easier installation.
- Secure Integration - Features encrypted SSCv2 API with TLS 1.2 and IEEE 802.1x, with audio muted until initialized via Control Cockpit.
- Flexible Mounting - Supports flush, surface, suspended, or VESA mounting with a durable, paintable metal housing for various room designs.
- Camera Control - Transmits talker position data to enable automatic camera framing and control within compatible video conferencing systems.
- Microsoft Teams - Certified for Microsoft Teams, ensuring optimized audio performance and compatibility with the platform's conferencing features.
Ideal for medium-sized meeting rooms in schools, universities, and corporate offices across the GCC and Africa where clear voice capture and flexible mounting are required.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TeamConnect Ceiling Medium CT-W 2FT
- Product type
- Ceiling Microphone Array
- Key features
- Adaptive beamforming, TruVoicelift, Single-cable mode, PoE/PoE+ powered, Dante or analog output, Exclusion and priority zones, Camera control via talker position data, Microsoft Teams certified
- Dynamic range
- 83 dB(A)
- PoE
- PoE / PoE+, single or daisy-chained
- Protocols
- SSCv2 API with TLS 1.2 encryption, IEEE 802.1x
- Sensitivity
- 0 dBV/Pa (1020 mV/Pa)
- Signal-to-noise ratio
- 79 dB(A)
Display
- Frequency response
- 100 Hz to 16,000 Hz
Connectivity
- Connectivity options
- Wired, PoE/PoE+
Camera & audio
- Audio out
- Dante or analog; analog via 1 x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)
- Max SPL
- 98 dB SPL
- Microphone type
- Pre-polarised condenser
- Microphone
- 15 electret condenser capsules, made in Germany
Physical & warranty
- Material
- Metal housing, paintable
- Mounting type
- Flush, surface, suspended or VESA
- Operating humidity
- 20% to 95% RH, non-condensing
- Power consumption
- 8 W (approx.)
- Weight
- 4.9 kg
- Warranty
- 5 years
- Certifications
- Microsoft Teams
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the microphone type and capsule count?
It uses 15 pre-polarised electret condenser capsules made in Germany, providing a frequency response of 100 Hz to 16,000 Hz.
Can it be installed in countries outside the UAE?
Yes. While Smart-Boards provides on-site installation only in the UAE, units delivered to other GCC and African countries arrive ready for local setup with remote guidance available.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Is the device secure out of the box?
The unit is password-protected by default and audio remains muted until initialization with Sennheiser Control Cockpit is complete, ensuring security during setup.
What mounting options are available?
The paintable metal housing supports flush, surface, suspended, or VESA mounting, allowing flexible integration into different room ceilings and designs.
How is audio output handled?
Audio can be output via Dante digital protocol or analog connections using a 3-pin terminal, compatible with standard Phoenix Contact connectors.
Does it require special configuration?
Yes, the TeamConnect Ceiling Medium must be initialized with Sennheiser Control Cockpit before first use to configure zones and camera control settings.
