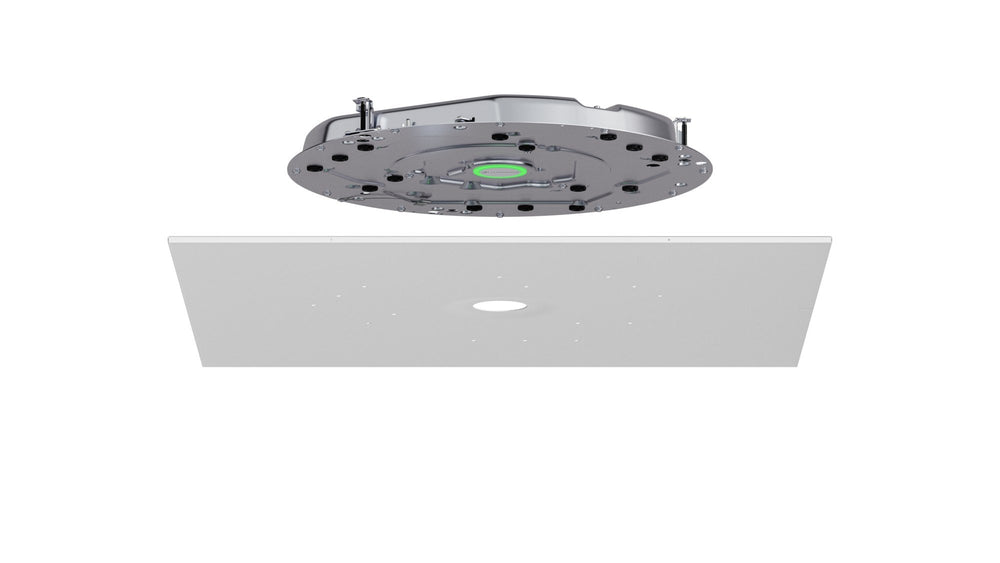

The Sennheiser TeamConnect Ceiling M Plus (700510) is a ceiling-mounted microphone array designed for medium to large flexible meeting spaces. It captures voice up to 4.3 meters with automatic beamforming and requires only a single cable for power and audio. Smart-Boards supplies this unit across the GCC and Africa.
Designed for medium and large collaboration areas, this ceiling microphone array utilizes 15 precision-engineered capsules to deliver accurate voice capture across spaces up to 60 m². The automatic dynamic beamforming technology isolates speakers while reducing background noise, ensuring clear speech intelligibility even in dynamic environments. Its pre-polarised condenser design operates within a frequency response of 100 Hz to 16,000 Hz, providing professional-grade audio for video conferencing.
Installation is simplified through flexible connectivity options, including single cable, split mode, or daisy-chain configurations via a 3-pin terminal. DeviceHub enables centralized cloud-based management, while PartnerLink allows direct configuration within third-party AV platforms. The unit features browser-based setup via LUI and supports automatic camera tracking. We provide this model to educational, government, and corporate clients across the GCC and Africa, with on-site installation available within the UAE.
Key features
- Voice Pickup Range - Captures audio reliably up to 4.3 meters (14 ft) from the source using patented dynamic beamforming.
- 15 Precision Capsules - Built with 15 German-engineered condenser capsules for precise voice capture and noise reduction.
- Flexible Connectivity - Supports single cable, split mode, or daisy-chain connections via a 3-pin terminal output.
- Centralized Management - DeviceHub provides cloud-based visibility and control for streamlined fleet management.
- Integration Support - PartnerLink enables direct configuration within trusted third-party AV and conferencing platforms.
- Camera Tracking - Automatic speaker-position detection supports integration with camera tracking systems.
Ideal for medium and large flexible collaboration spaces, boardrooms, and training rooms, suiting buyers across the GCC and Africa requiring clear audio and centralized device management.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TeamConnect Ceiling M Plus S-B
- Product type
- Ceiling Microphone Array
- Key features
- Automatic dynamic beamforming, 4.3 m (14 ft) pickup, 15 capsules, TruVoiceLift, DeviceHub management, browser-based setup (LUI), PartnerLink integration, camera tracking support
- Dynamic range
- 83 dB(A)
- Sensitivity
- 0 dBV/Pa (1020 mV/Pa)
- Signal-to-noise ratio
- 79 dB(A)
Display
- Frequency response
- 100 Hz to 16,000 Hz
Connectivity
- Connectivity options
- Wired (single cable, split mode or daisy-chain)
Camera & audio
- Audio out
- 1 x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)
- Max SPL
- 98 dB SPL
- Microphone type
- Pre-polarised condenser
- Pickup range
- Up to 4.3 m (14 ft)
Physical & warranty
- Operating humidity
- 20% to 95% RH, non-condensing
- Power consumption
- 8 W (approximate)
- Weight
- 4.1 kg
- Warranty
- 5 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the pickup range of the Sennheiser TeamConnect Ceiling M Plus?
It captures voice reliably up to 4.3 meters (14 ft) from the speaker.
Which countries receive delivery?
Smart-Boards ships to GCC countries and African nations through established logistics partners.
Is on-site installation included outside the UAE?
No, on-site installation is UAE-only. Other regions receive units ready for local setup with remote guidance.
How is the device managed centrally?
It uses DeviceHub for cloud-based management and PartnerLink for direct platform integration.
What is the warranty period?
The manufacturer provides a 5-year warranty, backed by Smart-Boards after-sales support.
Does it support camera tracking?
Yes, automatic speaker-position detection enables integration with camera tracking systems.
What power consumption does it have?
It consumes approximately 8 W during operation.
